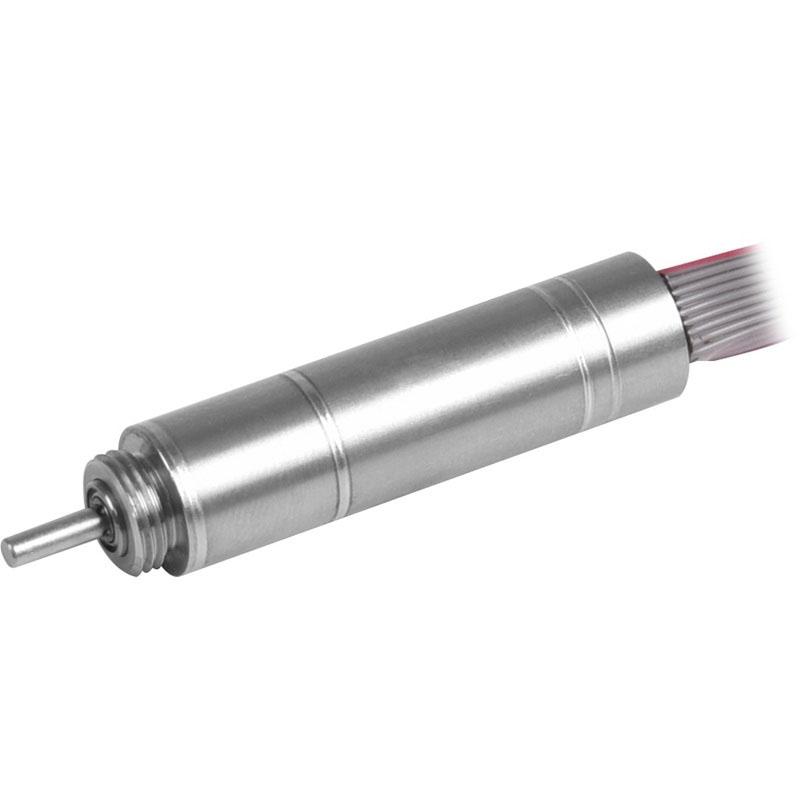

SLH10CH032 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLH10CH032-06-MS10-1024 | 0.390 in | 1.260 in | 6 VDC | 42167 RPM | 0.1968 oz-in | 48161 RPM | 282 mA | NA | 0.04 lbs | 1.38 A | Quote |
| SLH10CH032-09-MS10-1024 | 0.390 in | 1.260 in | 9 VDC | 37780 RPM | 0.2294 oz-in | 50400 RPM | 226 mA | NA | 0.04 lbs | 1.05 A | Quote |
| SLH10CH032-12-MS10-1024 | 0.390 in | 1.260 in | 12 VDC | 39765 RPM | 0.2266 oz-in | 49535 RPM | 203 mA | NA | 0.04 lbs | 0.77 A | Quote |
| SLH10CH032-18-MS10-1024 | 0.390 in | 1.260 in | 18 VDC | 42333 RPM | 0.2082 oz-in | 50419 RPM | 183 mA | NA | 0.04 lbs | 0.48 A | Quote |
| SLH10CH032-24 | 0.390 in | 1.260 in | 24 VDC | 45200 RPM | 0.2124 oz-in | 51800 RPM | 125 mA | NA | 0.04 lbs | 0.3 A | Quote |
| SLH10CH032-24-G16-MS10-1024 | 0.390 in | 1.690 in | 12 VDC | 1181 RPM | 2.811 oz-in | 1585 RPM | 66 mA | 16:1 | 0.053 lbs | 0.3 A | Quote |
| SLH10CH032-24-G256-MS10-1024 | 0.390 in | 2.050 in | 12 VDC | 91.45 RPM | 20.817 oz-in | 101.2 RPM | 66 mA | 256:1 | 0.063 lbs | 0.2 A | Quote |
| SLH10CH032-24-G4 | 0.390 in | 1.570 in | 12 VDC | 5092 RPM | 0.7251 oz-in | 6834 RPM | 66 mA | 4:1 | 0.05 lbs | 0.3 A | Quote |
| SLH10CH032-24-G62-MS10-1024 | 0.390 in | 1.810 in | 12 VDC | 305 RPM | 9.6013 oz-in | 418 RPM | 66 mA | 62:1 | 0.055 lbs | 0.3 A | Quote |
| SLH10CH032-24-MS10-1024 | 0.390 in | 1.260 in | 24 VDC | 45200 RPM | 0.2124 oz-in | 51800 RPM | 125 mA | NA | 0.04 lbs | 0.38 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
