SLH10CH032 Series
SLH10CH032-24-G4
Slotless BLDC Motor

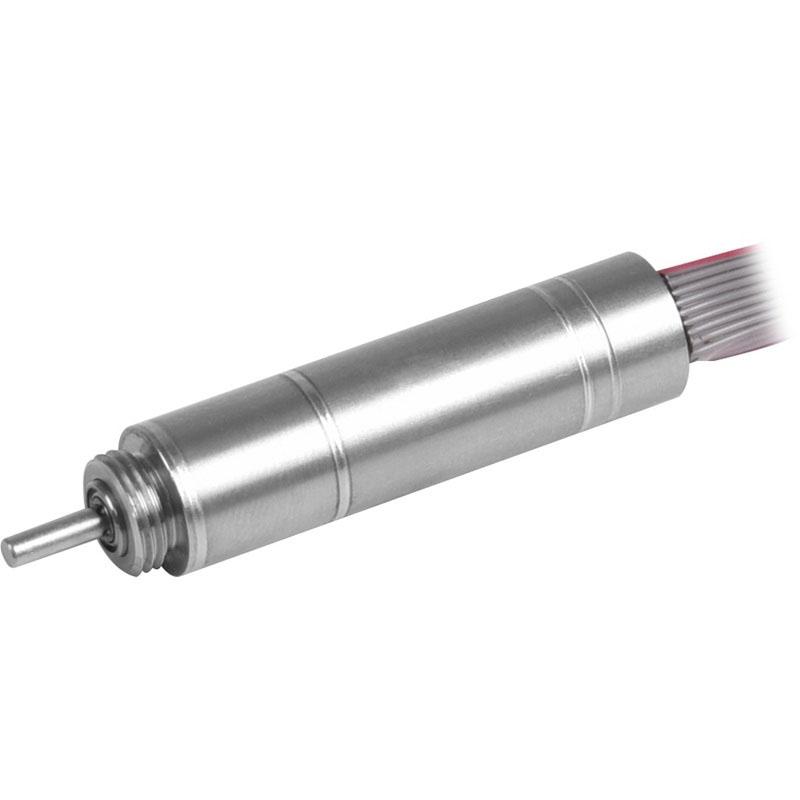

Featured product media

Quick Facts

SLH10CH032-24-G4 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.3 A Rated Current
  • 0.7251 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.570 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Gearhead
Weight0.05 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 6834 RPM
No Load Current66 mA
Nominal Speed5092 RPM
Nominal Torque (Max Cont. Torque)0.7251 oz-in
Rated Speed5092 RPM
Rated Torque0.7251 oz-in
Rated Current0.3 A
Stall Torque4.5528 oz-in
Stall Current2.182 A
Max. Efficiency66.7%

Motor Characteristics

Terminal Resistance5.5 ohm
Terminal Inductance0.15 mH
Speed/Torque Gradient 398.3544 RPM/oz-in
Speed Constant2210 RPM/V

Motor Mechanical Data

Max. Radial Load1.124 lbf

Motor Thermal Data

Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio4
Nominal Reduction Ratio4

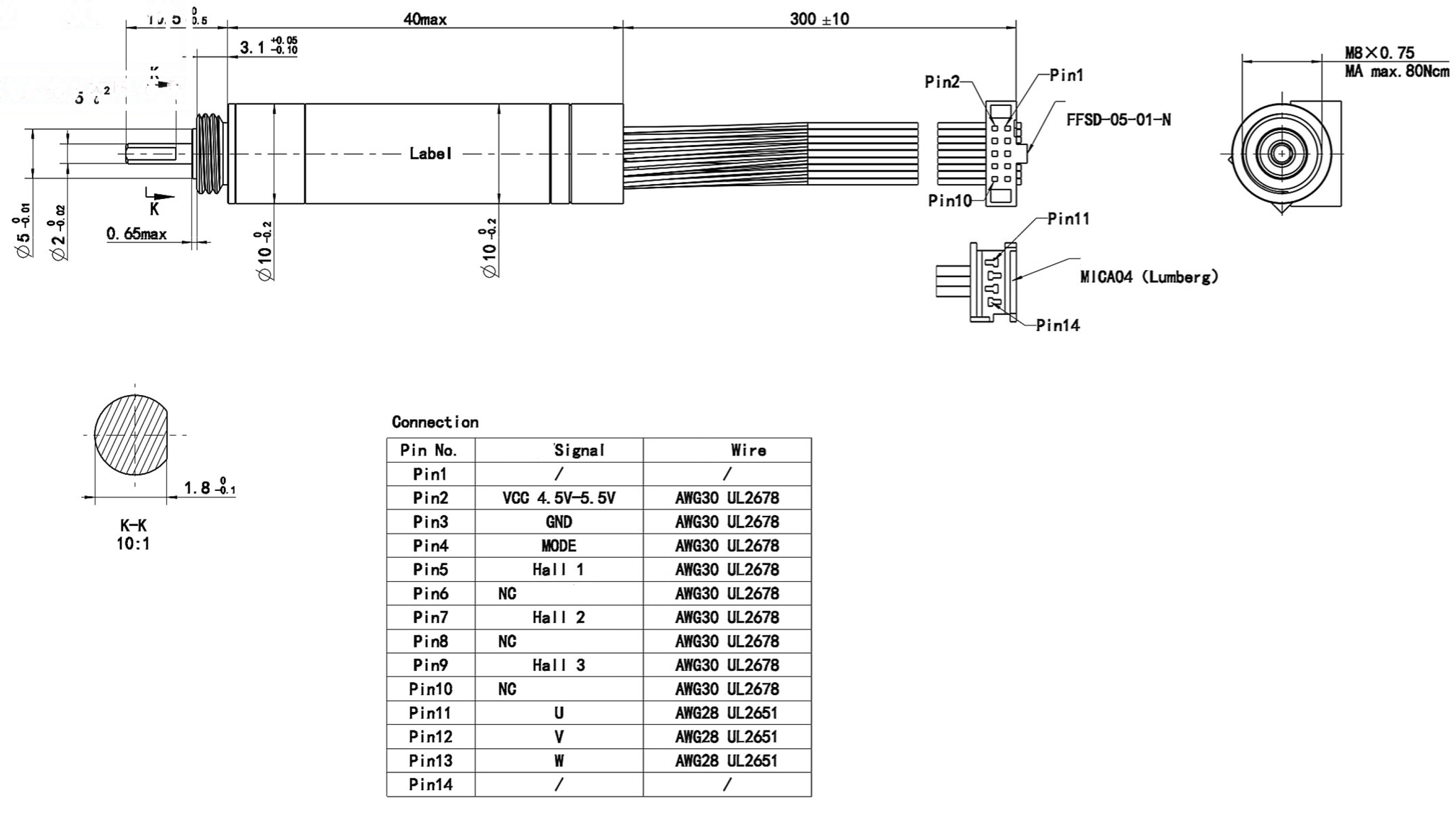

Dimensions

ModelDIM. A (length) in MAX
SLH10CH032-24-G41.570 in

Performance Curve

SLH10CH032-24-G4
@12 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH10CH032 Series

Downloads

SLH10CH032-24-G4 Configured Datasheet (PDF)
SLH10CH032-24-G4 (3D model) (STP)
