SLH10CH032 Series

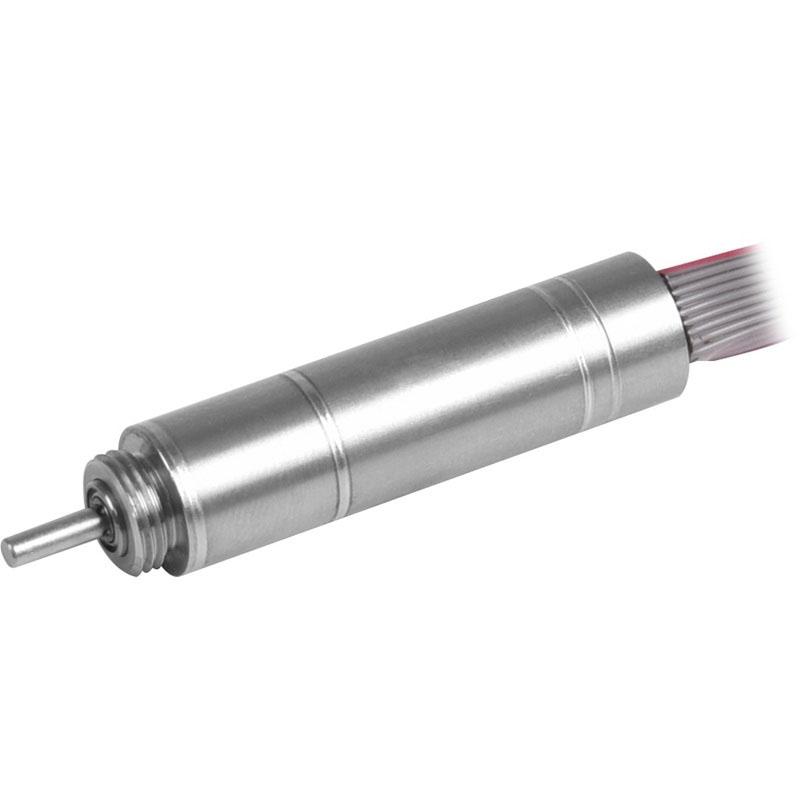

SLH10CH032-09-MS10-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLH10CH032-09-MS10-1024 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 1.05 A Rated Current
  • 0.2294 oz-in Rated Torque
  • 9 VDC Nominal Voltage
  • 1.260 in Length

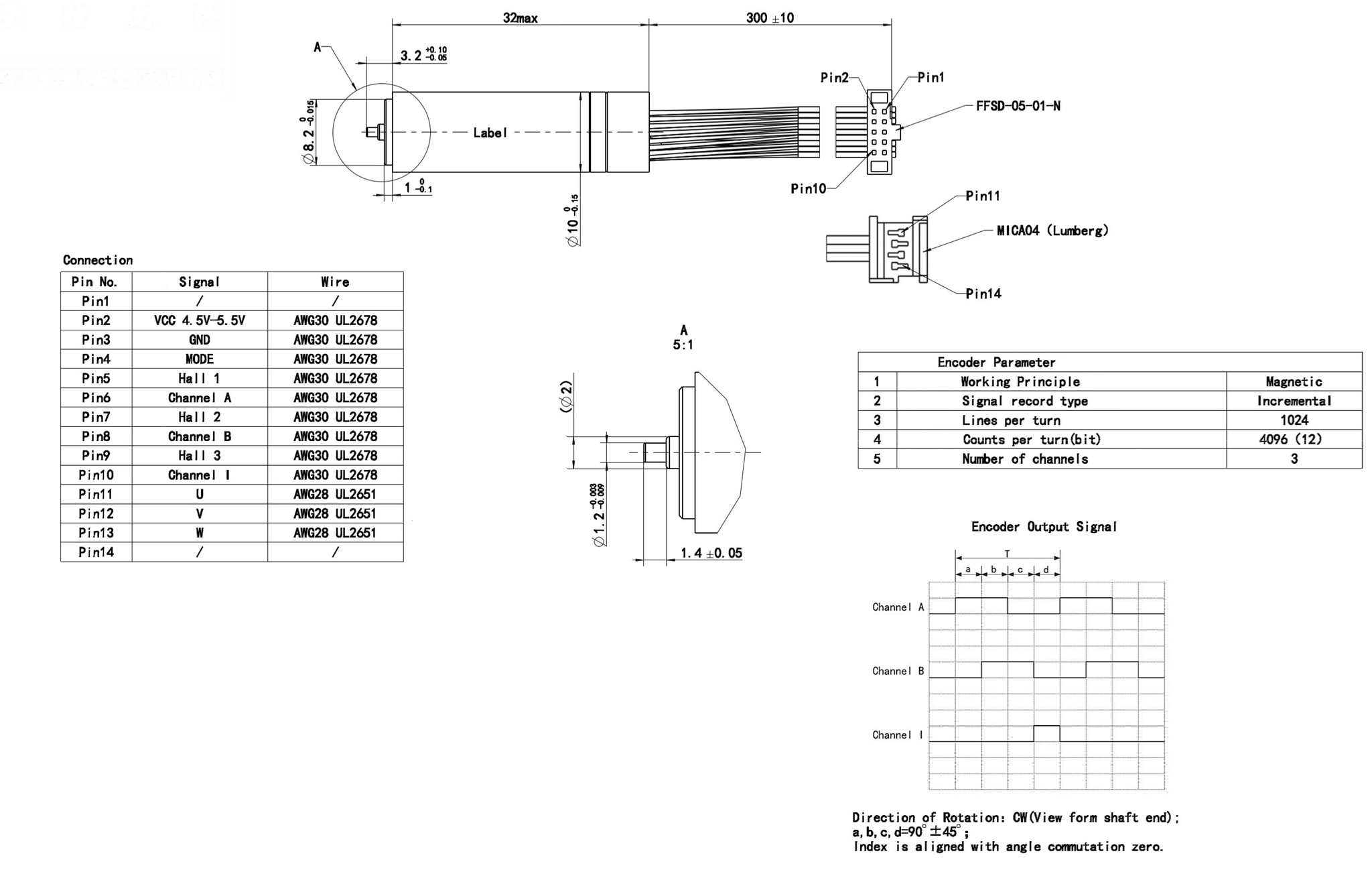

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Encoder
Weight0.04 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage9 VDC
No Load Speed 50400 RPM
No Load Current226 mA
Nominal Speed37780 RPM
Rated Speed37780 RPM
Rated Torque0.2294 oz-in
Rated Current1.05 A
Stall Torque2.195 oz-in
Stall Current9.38 A
Max. Efficiency80.2%

Motor Characteristics

Terminal Resistance0.96 ohm
Terminal Inductance0.0231 mH
Speed/Torque Gradient 476.6658 RPM/oz-in
Speed Constant5786 RPM/V
Mechanical Time Constant2.82 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load0.45 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor220 s
Thermal time constant winding1.5 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Performance Curve

SLH10CH032-09-MS10-1024
@9 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC
