SLH10CH032 Series
SLH10CH032-06-MS10-1024
Slotless BLDC Motor

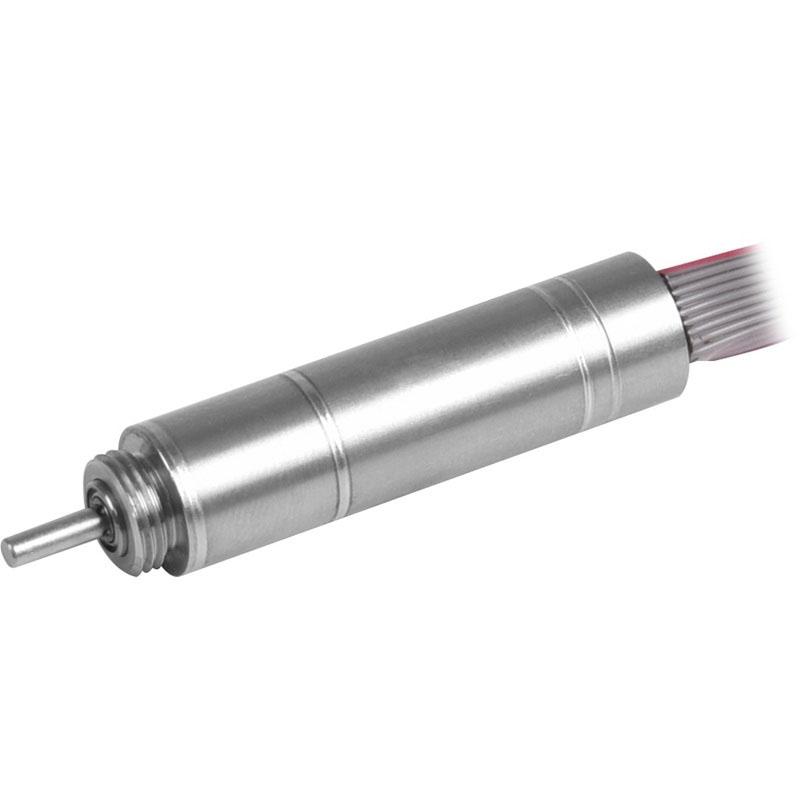

Featured product media

Quick Facts

SLH10CH032-06-MS10-1024 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 1.38 A Rated Current
  • 0.1968 oz-in Rated Torque
  • 6 VDC Nominal Voltage
  • 1.260 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Encoder
Weight0.04 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage6 VDC
No Load Speed 48161 RPM
No Load Current282 mA
Nominal Speed42167 RPM
Rated Speed42167 RPM
Rated Torque0.1968 oz-in
Rated Current1.38 A
Stall Torque1.6852 oz-in
Stall Current10.71 A
Max. Efficiency76.3%

Motor Characteristics

Terminal Resistance0.56 ohm
Terminal Inductance0.0109 mH
Speed/Torque Gradient 615.3038 RPM/oz-in
Speed Constant8578 RPM/V
Mechanical Time Constant3.64 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load0.45 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor220 s
Thermal time constant winding1.5 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Performance Curve

SLH10CH032-06-MS10-1024
@6 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH10CH032 Series

Downloads

SLH10CH032-06-MS10-1024 Configured Datasheet (PDF)
