SLH10CH032 Series
SLH10CH032-24
Slotless BLDC Motor

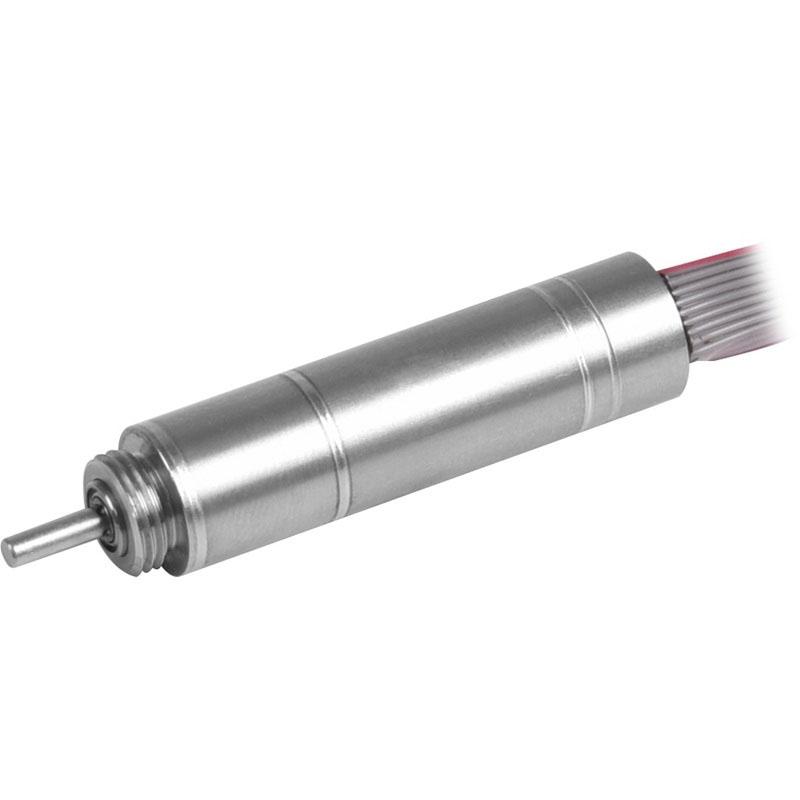

Featured product media

Quick Facts

SLH10CH032-24 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.3 A Rated Current
  • 0.2124 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.260 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor Only
Weight0.04 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 51800 RPM
No Load Current125 mA
Nominal Speed45200 RPM
Rated Speed45200 RPM
Rated Torque0.2124 oz-in
Rated Current0.3 A
Stall Torque2.6623 oz-in
Stall Current4.36 A
Max. Efficiency79.2%

Motor Characteristics

Terminal Resistance5.5 ohm
Terminal Inductance120 mH
Speed/Torque Gradient 398.3544 RPM/oz-in
Speed Constant2210 RPM/V
Mechanical Time Constant2.36 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load0.45 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor220 s
Thermal time constant winding1.85 s

Performance Curve

SLH10CH032-24
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC
