SLH10CH032 Series
SLH10CH032-24-G256-MS10-1024

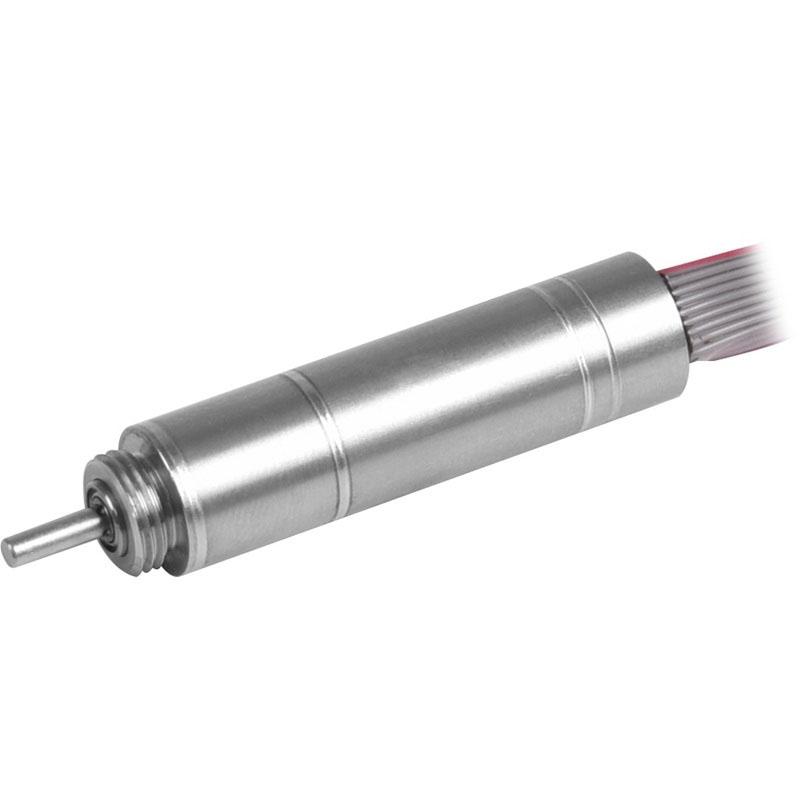

Slotless BLDC Motor

Name: SLH10CH032-24-G256-MS10-1024
Brand: Lin Engineering
SKU: SLH10CH032-24-G256-MS10-1024
Price: 424 USD
Availability: PreOrder

Quick Facts

SLH10CH032-24-G256-MS10-1024 Slotless BLDC Motors

Specifications:

0.390 in Frame Size
0.2 A Rated Current
20.817 oz-in Rated Torque
12 VDC Nominal Voltage
2.050 in Length

Specifications

Motor Specifications

Frame Size	0.390 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.063 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	12 VDC
No Load Speed	101.2 RPM
No Load Current	66 mA
Nominal Speed	92 RPM
Rated Speed	91.45 RPM
Rated Torque	20.817 oz-in
Rated Current	0.2 A
Stall Torque	218.932 oz-in
Stall Current	2.07 A
Max. Efficiency	43.5%

Motor Characteristics

Terminal Resistance	5.5 ohm
Terminal Inductance	0.12 mH
Speed/Torque Gradient	398.3544 RPM/oz-in
Speed Constant	2210 RPM/V
Mechanical Time Constant	2.36 ms
Rotor Inertia	0 oz-in²

Motor Mechanical Data

Max. Radial Load

1.124 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal time constant motor	220 s
Thermal time constant winding	1.5 s

Gearhead Specifications

Gearhead Reduction Ratio	256
Nominal Reduction Ratio	256

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

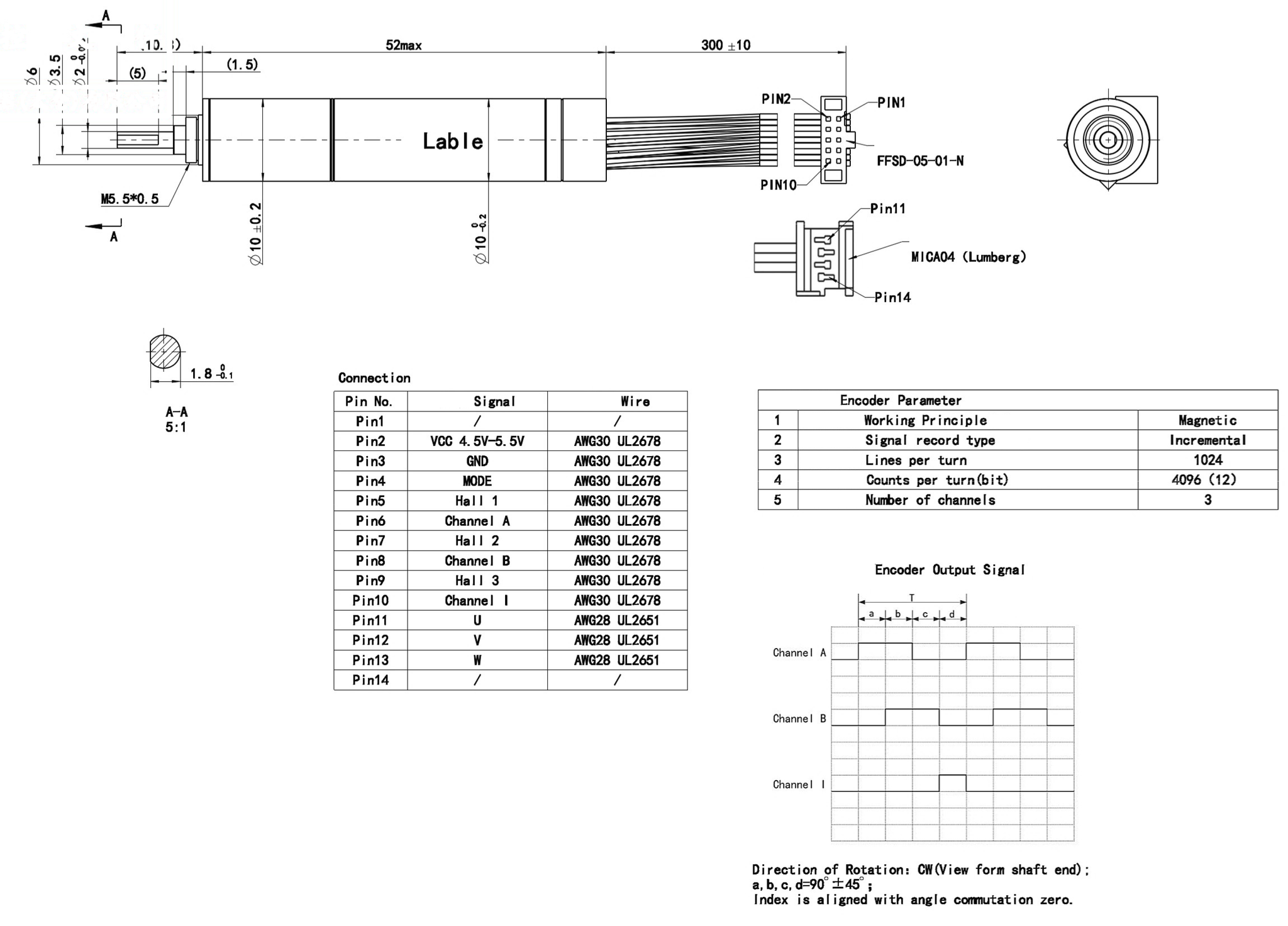

Dimensions

Model	DIM. A (length) in MAX
SLH10CH032-24-G256-MS10-1024	2.050 in

Performance Curve

SLH10CH032-24-G256-MS10-1024
^{@12 VDC, 256:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC
