SLH10CH032 Series
SLH10CH032-24-G62-MS10-1024
Slotless BLDC Motor

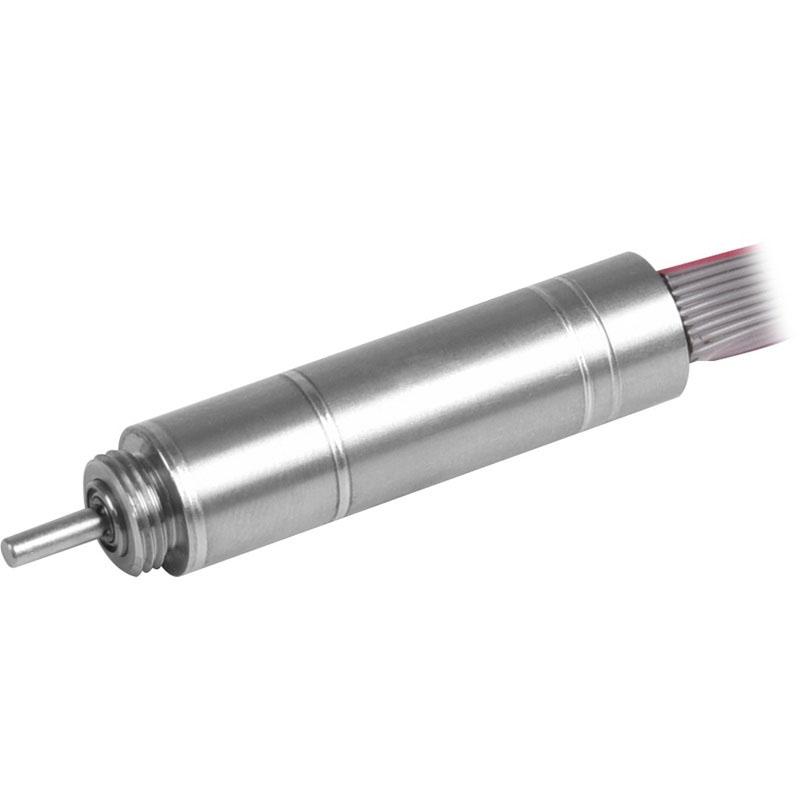

Featured product media

Quick Facts

SLH10CH032-24-G62-MS10-1024 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.3 A Rated Current
  • 9.6013 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 1.810 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Encoder + Gearhead
Weight0.055 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 418 RPM
No Load Current66 mA
Nominal Speed305 RPM
Nominal Torque (Max Cont. Torque)9.6013 oz-in
Rated Speed305 RPM
Rated Torque9.6013 oz-in
Rated Current0.3 A
Stall Torque60.1851 oz-in
Stall Current2.182 A
Max. Efficiency54%

Motor Characteristics

Terminal Resistance5.5 ohm
Terminal Inductance0.12 mH
Speed/Torque Gradient 398.3544 RPM/oz-in
Speed Constant2210 RPM/V
Mechanical Time Constant2.36 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load1.124 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor220 s
Thermal time constant winding1.5 s

Gearhead Specifications

Gearhead Reduction Ratio62
Nominal Reduction Ratio62

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

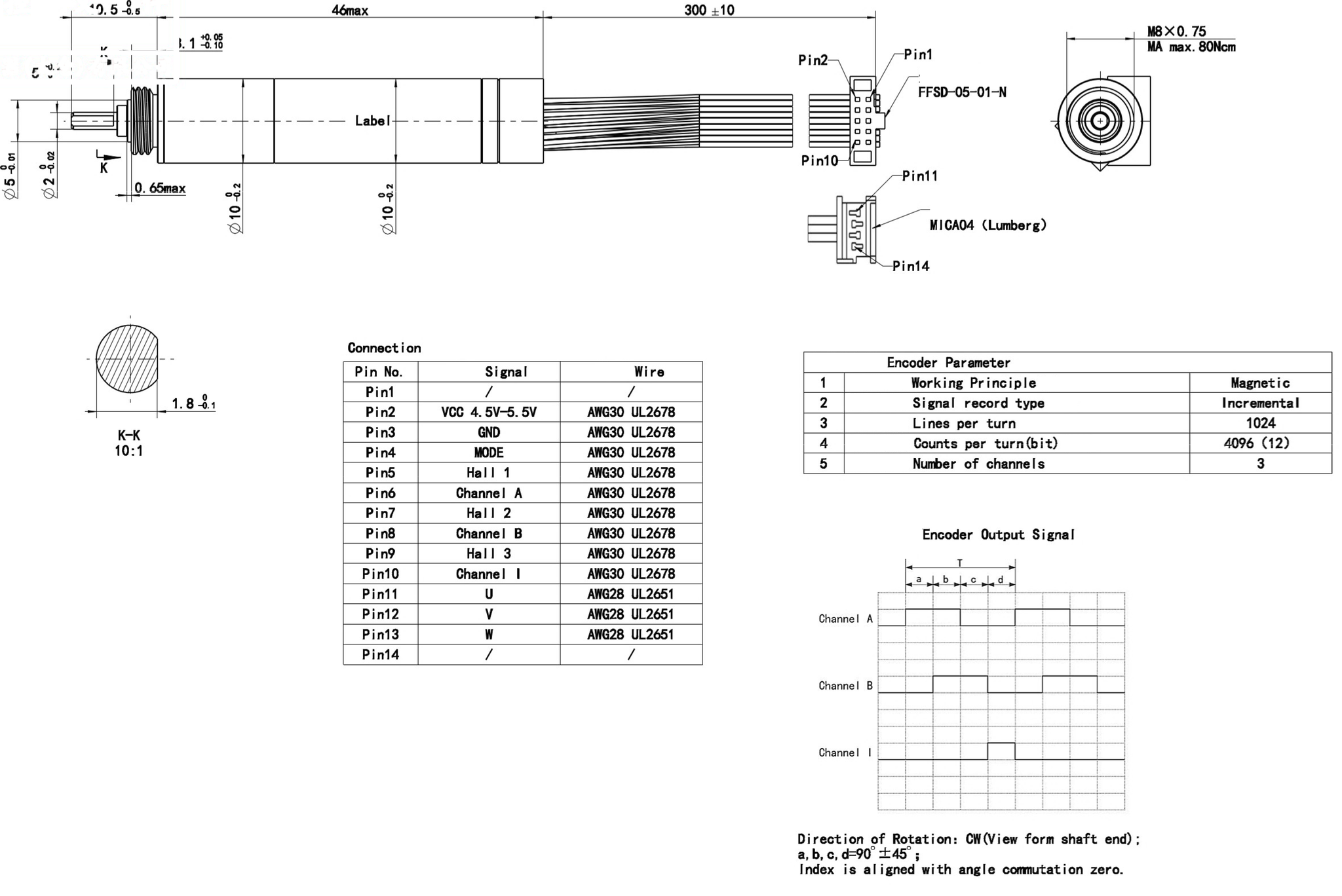

Dimensions

ModelDIM. A (length) in MAX
SLH10CH032-24-G62-MS10-10241.810 in

Performance Curve

SLH10CH032-24-G62-MS10-1024
@12 VDC, 62:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH10CH032 Series

Downloads

SLH10CH032-24-G62-MS10-1024 Configured Datasheet (PDF)
SLH10CH032-24-G62-MS10-1024 (3D model) (STP)
