SLH10CH032 Series
SLH10CH032-18-MS10-1024
Slotless BLDC Motor

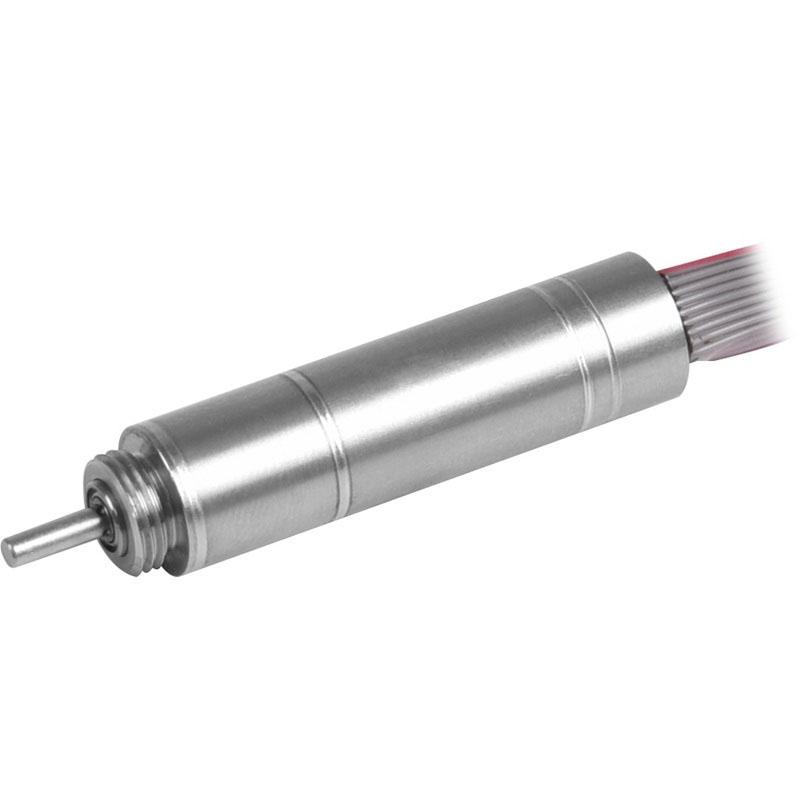

Featured product media

Quick Facts

SLH10CH032-18-MS10-1024 Slotless BLDC Motors

Specifications:
  • 0.390 in Frame Size
  • 0.48 A Rated Current
  • 0.2082 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 1.260 in Length

Specifications

Motor Specifications

Frame Size0.390 in
Motor TypeMotor + Encoder
Weight0.04 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 50419 RPM
No Load Current183 mA
Nominal Speed44000 RPM
Nominal Torque (Max Cont. Torque)0.2082 oz-in
Rated Speed42333 RPM
Rated Torque0.2082 oz-in
Rated Current0.48 A
Stall Torque2.5915 oz-in
Stall Current5.47 A
Max. Efficiency79.9%

Motor Characteristics

Terminal Resistance3.29 ohm
Terminal Inductance0.0947 mH
Speed/Torque Gradient 396.5134 RPM/oz-in
Speed Constant2851 RPM/V
Mechanical Time Constant2.35 ms
Rotor Inertia0 oz-in²

Motor Mechanical Data

Max. Radial Load0.45 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor220 s
Thermal time constant winding1.5 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

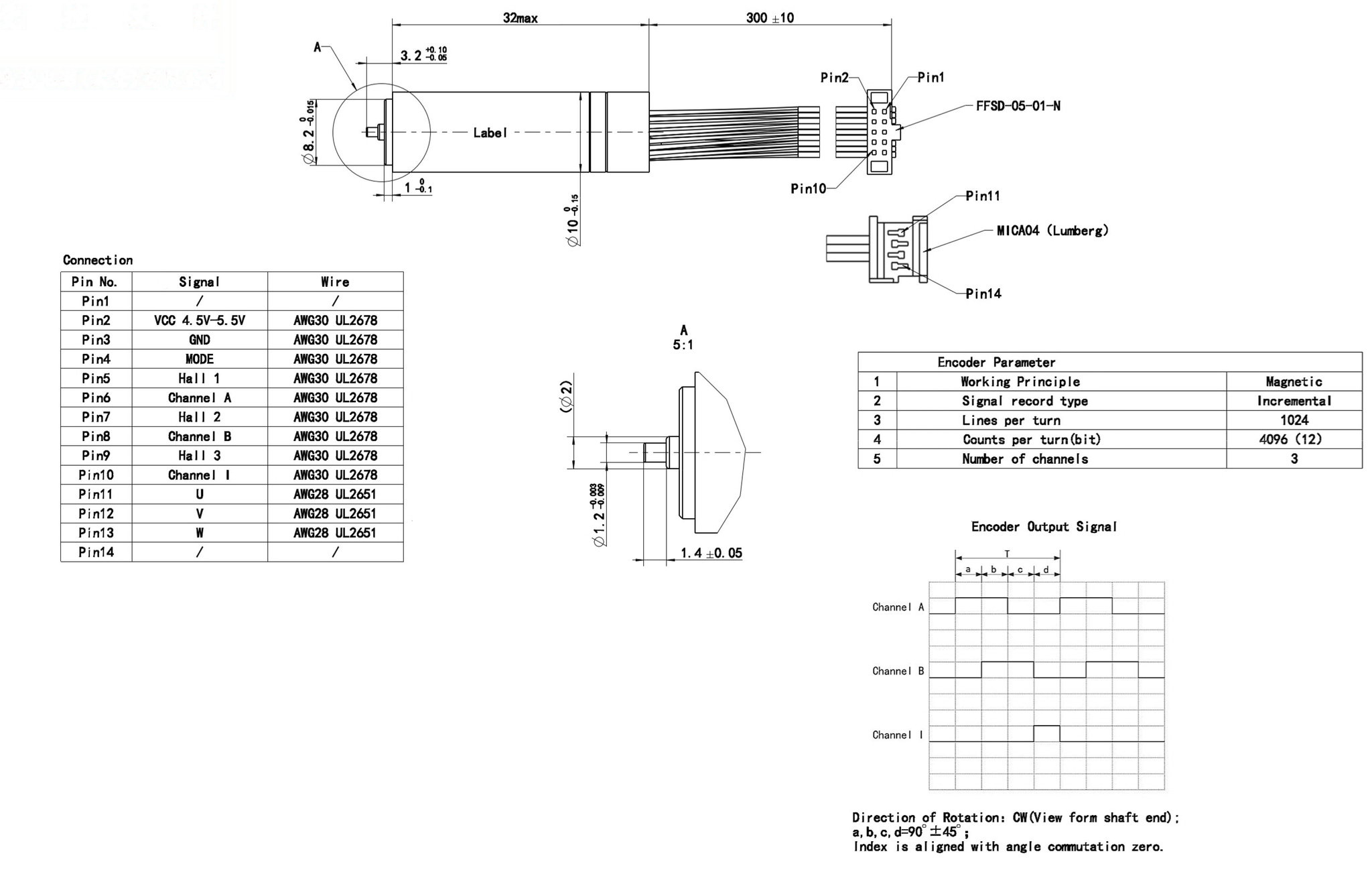

Dimensions

ModelDIM. A (length) in MAX
SLH10CH032-18-MS10-10241.260 in

Performance Curve

SLH10CH032-18-MS10-1024
@18 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH10CH032 Series

Downloads

SLH10CH032-18-MS10-1024 Configured Datasheet (PDF)
SLH10CH032-18-MS10-1024 (3D model) (STP)
