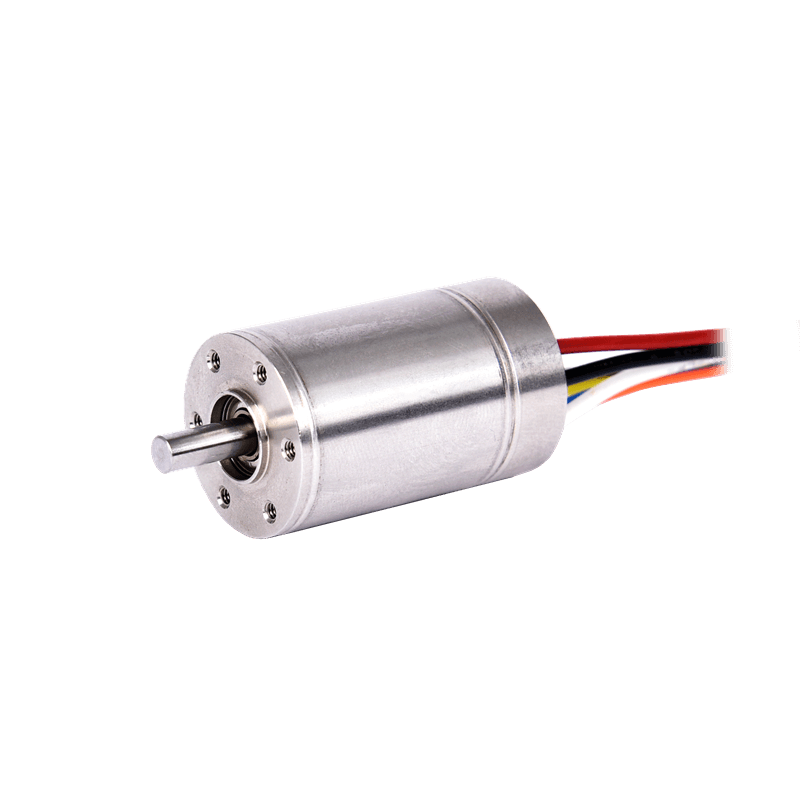

SLU26CH040 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLU26CH040-12 | 1.020 in | 1.570 in | 12 VDC | 7820 RPM | 3.1155 oz-in | 10339 RPM | 220 mA | NA | 0.287 lbs | 2.2 A | Quote |
| SLU26CH040-24 | 1.020 in | 1.570 in | 24 VDC | 8504 RPM | 3.1155 oz-in | 10220 RPM | 162 mA | NA | 0.287 lbs | 1.1 A | Quote |
| SLU26CH040-24-G138 | 1.020 in | 2.970 in | 24 VDC | 61 RPM | 335.6203 oz-in | 73.9 RPM | 162 mA | 138:1 | 0.54 lbs | 1.1 A | Quote |
| SLU26CH040-24-G138-M24-1024 | 1.020 in | 3.360 in | 24 VDC | 61 RPM | 336.0451 oz-in | 73.9 RPM | 162 mA | 138:1 | 0.573 lbs | 1.1 A | Quote |
| SLU26CH040-24-G21 | 1.020 in | 2.700 in | 24 VDC | 406 RPM | 54.1666 oz-in | 487.8 RPM | 162 mA | 21:1 | 0.489 lbs | 1.82 A | Quote |
| SLU26CH040-24-G21-M24-1024 | 1.020 in | 3.080 in | 24 VDC | 406 RPM | 54.1666 oz-in | 487.8 RPM | 162 mA | 21:1 | 0.522 lbs | 1.1 A | Quote |
| SLU26CH040-24-G4 | 1.020 in | 2.430 in | 24 VDC | 2153 RPM | 11.3148 oz-in | 2587.3 RPM | 162 mA | 4:1 | 0.454 lbs | 1.1 A | Quote |
| SLU26CH040-24-G4-M24-1024 | 1.020 in | 2.810 in | 24 VDC | 2153 RPM | 11.3148 oz-in | 2587.3 RPM | 162 mA | 4:1 | 0.474 lbs | 1.1 A | Quote |
| SLU26CH040-24-G62 | 1.020 in | 2.970 in | 24 VDC | 138 RPM | 150.1086 oz-in | 167.5 RPM | 162 mA | 62:1 | 0.54 lbs | 1.1 A | Quote |
| SLU26CH040-24-G62-M24-1024 | 1.020 in | 3.360 in | 24 VDC | 138 RPM | 149.4006 oz-in | 166.2 RPM | 162 mA | 62:1 | 0.573 lbs | 1.1 A | Quote |
| SLU26CH040-36 | 1.020 in | 1.570 in | 36 VDC | 8941 RPM | 3.1155 oz-in | 10430 RPM | 134 mA | NA | 0.287 lbs | 0.76 A | Quote |
| SLU26CH040-48 | 1.020 in | 1.570 in | 48 VDC | 8878 RPM | 3.1155 oz-in | 10517 RPM | 95.1 mA | NA | 0.287 lbs | 0.47 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
