SLU26CH040 Series
SLU26CH040-24-G138
Slotless BLDC Motor

Featured product media

Quick Facts

SLU26CH040-24-G138 Slotless BLDC Motors

Specifications:
  • 1.020 in Frame Size
  • 1.1 A Rated Current
  • 335.6203 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.970 in Length

Specifications

Motor Specifications

Frame Size1.020 in
Motor TypeMotor + Gearhead
Weight0.54 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 73.9 RPM
No Load Current162 mA
Nominal Speed63 RPM
Rated Speed61 RPM
Rated Torque335.6203 oz-in
Rated Current1.1 A
Stall Torque3078.6434 oz-in
Stall Current8.76 A
Max. Efficiency62.3%

Motor Characteristics

Terminal Resistance2.74 ohm
Terminal Inductance0.328 mH
Speed/Torque Gradient 6.9956 RPM/oz-in
Speed Constant415 RPM/V

Motor Mechanical Data

Max. Radial Load15.736 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio138
Nominal Reduction Ratio138

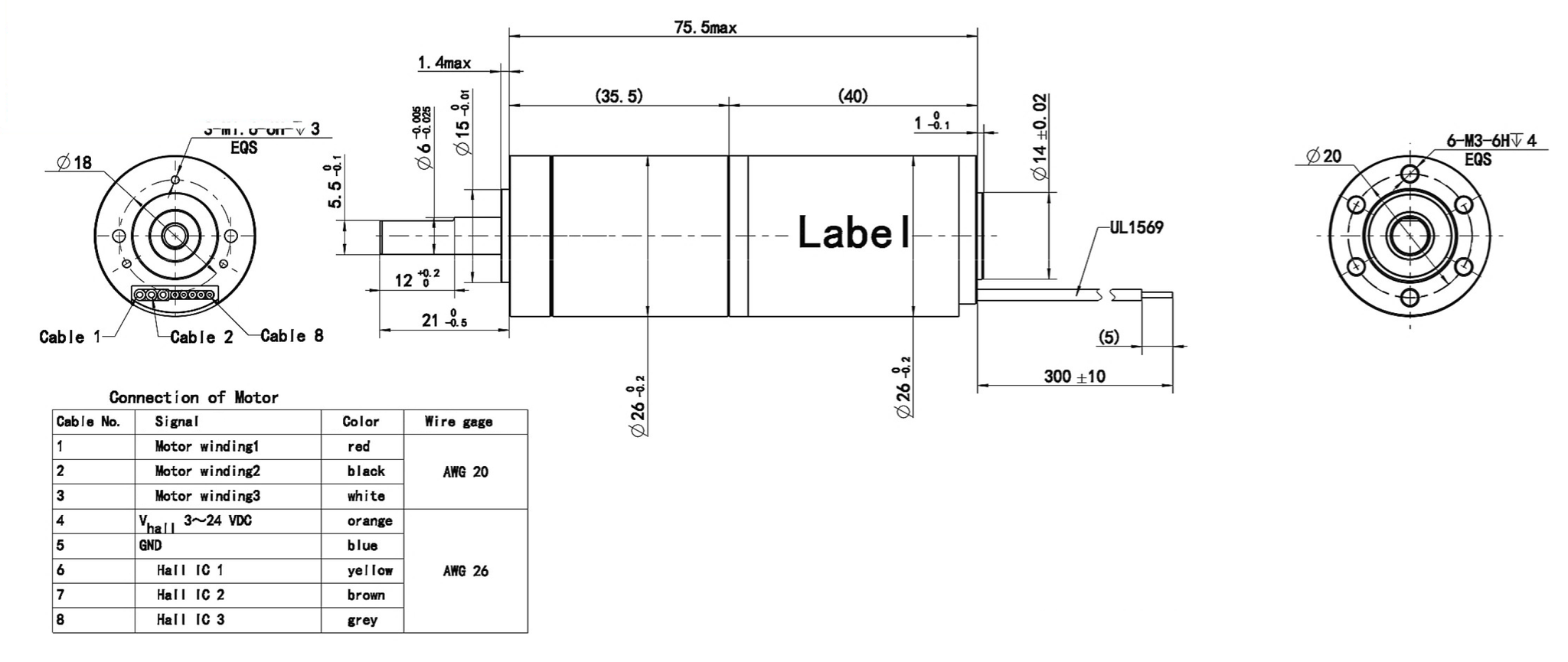

Dimensions

ModelDIM. A (length) in MAX
SLU26CH040-24-G1382.970 in

Performance Curve

SLU26CH040-24-G138
@24 VDC, 138:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU26CH040 Series

Downloads

SLU26CH040-24-G138 Configured Datasheet (PDF)
