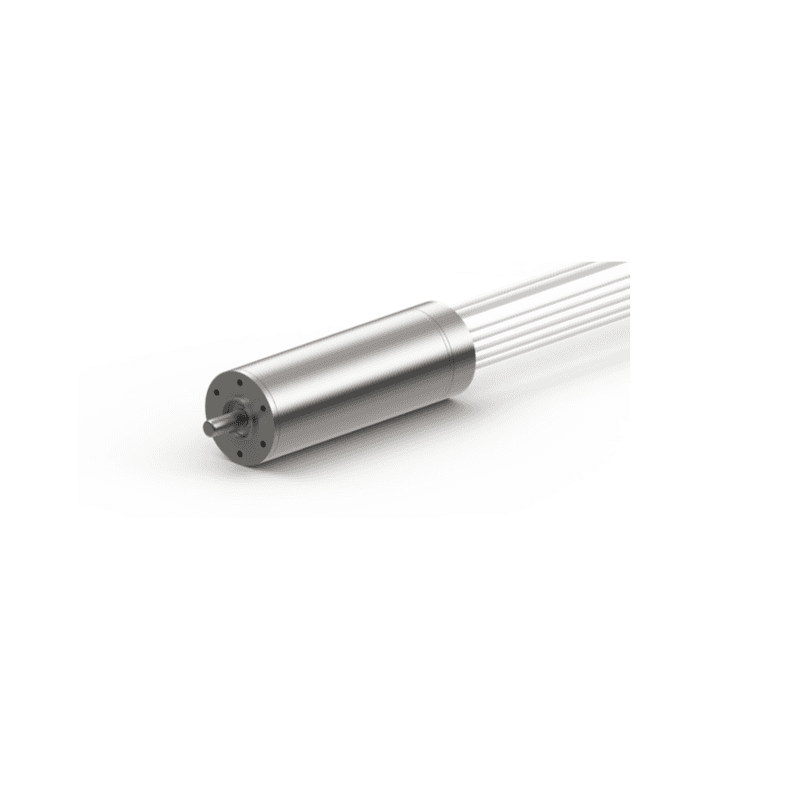

SLT22CH064 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLT22CH064-12 | 0.870 in | 2.520 in | 12 VDC | 7254 RPM | 6.3725 oz-in | 10400 RPM | 409 mA | NA | 0.309 lbs | 3.76 A | Quote |
| SLT22CH064-24 | 0.870 in | 2.520 in | 24 VDC | 8768 RPM | 6.3725 oz-in | 10600 RPM | 401 mA | NA | 0.309 lbs | 1.89 A | Quote |
| SLT22CH064-24-G16 | 0.870 in | 3.580 in | 24 VDC | 581 RPM | 85.392 oz-in | 661.1 RPM | 441 mA | 16:1 | 0.43 lbs | 1.89 A | Quote |
| SLT22CH064-24-G16-MH22-1024 | 0.870 in | 3.580 in | 24 VDC | 581 RPM | 85.392 oz-in | 661 RPM | 441 mA | 16:1 | 0.443 lbs | 1.89 A | Quote |
| SLT22CH064-24-G21-MH22-1024 | 0.870 in | 3.580 in | 24 VDC | 432 RPM | 114.7057 oz-in | 491.6 RPM | 441 mA | 21:1 | 0.443 lbs | 1.89 A | Quote |
| SLT22CH064-24-G4 | 0.870 in | 3.350 in | 24 VDC | 2369 RPM | 23.366 oz-in | 2685 RPM | 441 mA | 4:1 | 0.403 lbs | 1.89 A | Quote |
| SLT22CH064-24-G4-MH22-1024 | 0.870 in | 3.350 in | 24 VDC | 2291 RPM | 23.366 oz-in | 2607.6 RPM | 441 mA | 4:1 | 0.414 lbs | 1.89 A | Quote |
| SLT22CH064-24-G62-MH22-1024 | 0.870 in | 3.810 in | 24 VDC | 152.8 RPM | 226.5791 oz-in | 167.5 RPM | 441 mA | 62:1 | 0.467 lbs | 1.39 A | Quote |
| SLT22CH064-24-G7-MH22-1024 | 0.870 in | 3.350 in | 24 VDC | 1371 RPM | 38.9433 oz-in | 1560.6 RPM | 441 mA | 7:1 | 0.421 lbs | 1.89 A | Quote |
| SLT22CH064-24-MH22-1024 | 0.870 in | 2.520 in | 24 VDC | 8768 RPM | 6.3725 oz-in | 10600 RPM | 401 mA | NA | 0.32 lbs | 1.89 A | Quote |
| SLT22CH064-36 | 0.870 in | 2.520 in | 36 VDC | 9343 RPM | 6.3725 oz-in | 10580 RPM | 322 mA | NA | 0.309 lbs | 1.3 A | Quote |
| SLT22CH064-48 | 0.870 in | 2.520 in | 48 VDC | 9532 RPM | 6.3725 oz-in | 11000 RPM | 297 mA | NA | 0.309 lbs | 0.98 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
