SLT22CH064 Series
SLT22CH064-24-G16
Slotless BLDC Motor

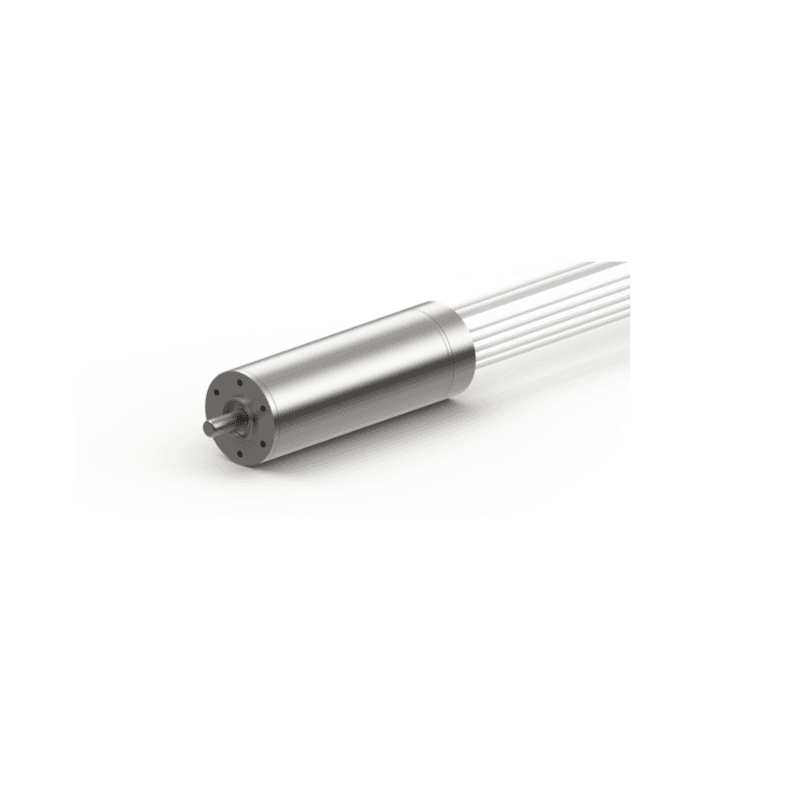

Featured product media

Quick Facts

SLT22CH064-24-G16 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.89 A Rated Current
  • 85.392 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 3.580 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Gearhead
Weight0.43 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 661.1 RPM
No Load Current441 mA
Nominal Speed616 RPM
Rated Speed581 RPM
Rated Torque85.392 oz-in
Rated Current1.89 A
Stall Torque1464.2674 oz-in
Stall Current35.56 A
Max. Efficiency73.6%

Motor Characteristics

Terminal Resistance0.675 ohm
Terminal Inductance0.0595 mH
Speed/Torque Gradient 1.9373 RPM/oz-in
Speed Constant440 RPM/V

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio16
Nominal Reduction Ratio16

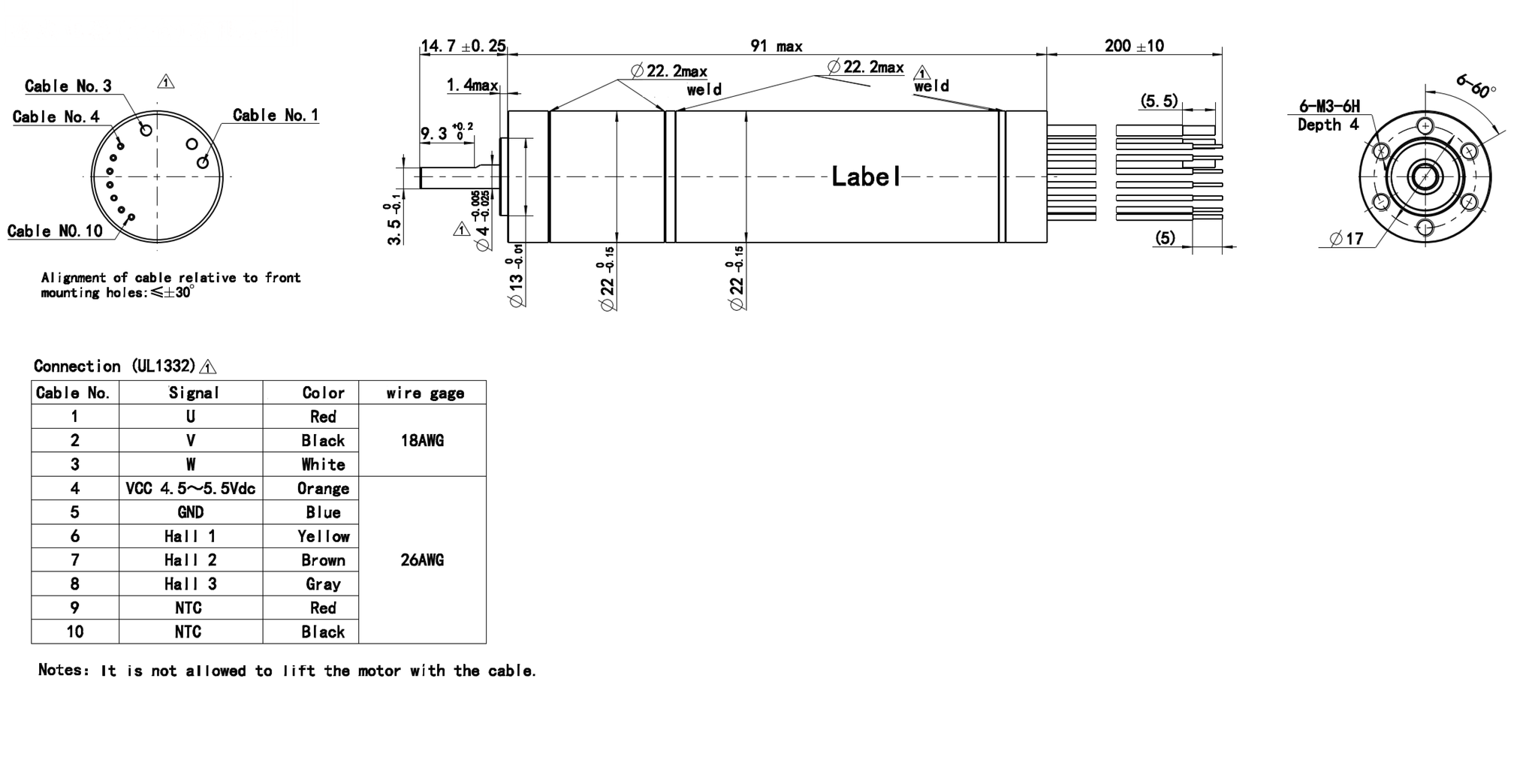

Dimensions

ModelDIM. A (length) in MAX
SLT22CH064-24-G163.580 in

Performance Curve

SLT22CH064-24-G16
@24 VDC, 16:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH064 Series

Downloads

SLT22CH064-24-G16 Configured Datasheet (PDF)
