SLT22CH064 Series

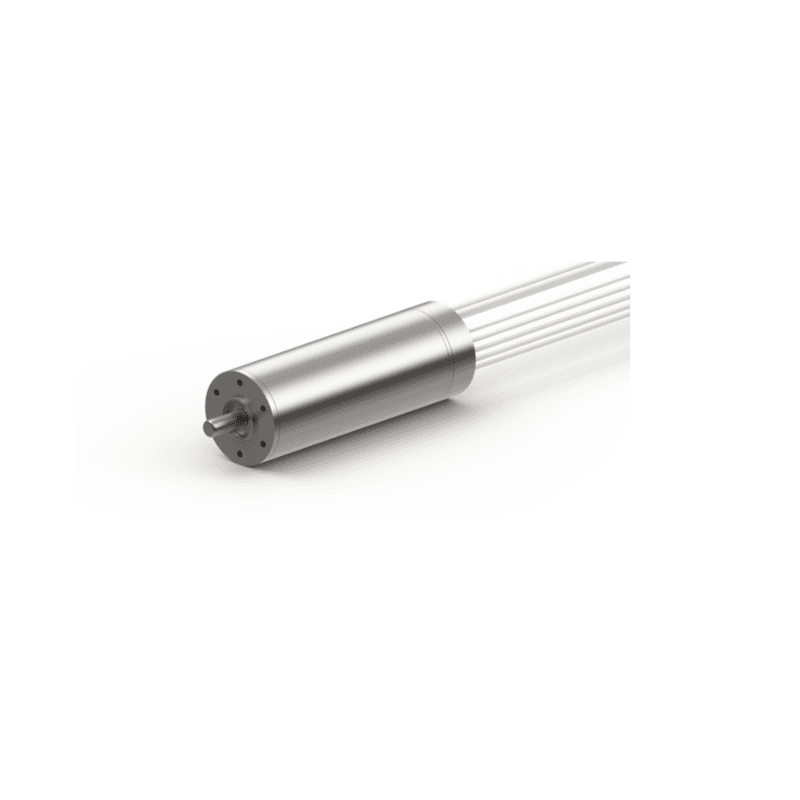

SLT22CH064-24-G4-MH22-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLT22CH064-24-G4-MH22-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.89 A Rated Current
  • 23.366 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 3.350 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder + Gearhead
Weight0.414 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 2607.6 RPM
No Load Current441 mA
Nominal Speed2464 RPM
Rated Speed2291 RPM
Rated Torque23.366 oz-in
Rated Current1.89 A
Stall Torque399.3456 oz-in
Stall Current35.56 A
Max. Efficiency79.4%

Motor Characteristics

Terminal Resistance0.675 ohm
Terminal Inductance0.0595 mH
Speed/Torque Gradient 1.9373 RPM/oz-in
Speed Constant440 RPM/V

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio4
Nominal Reduction Ratio4

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

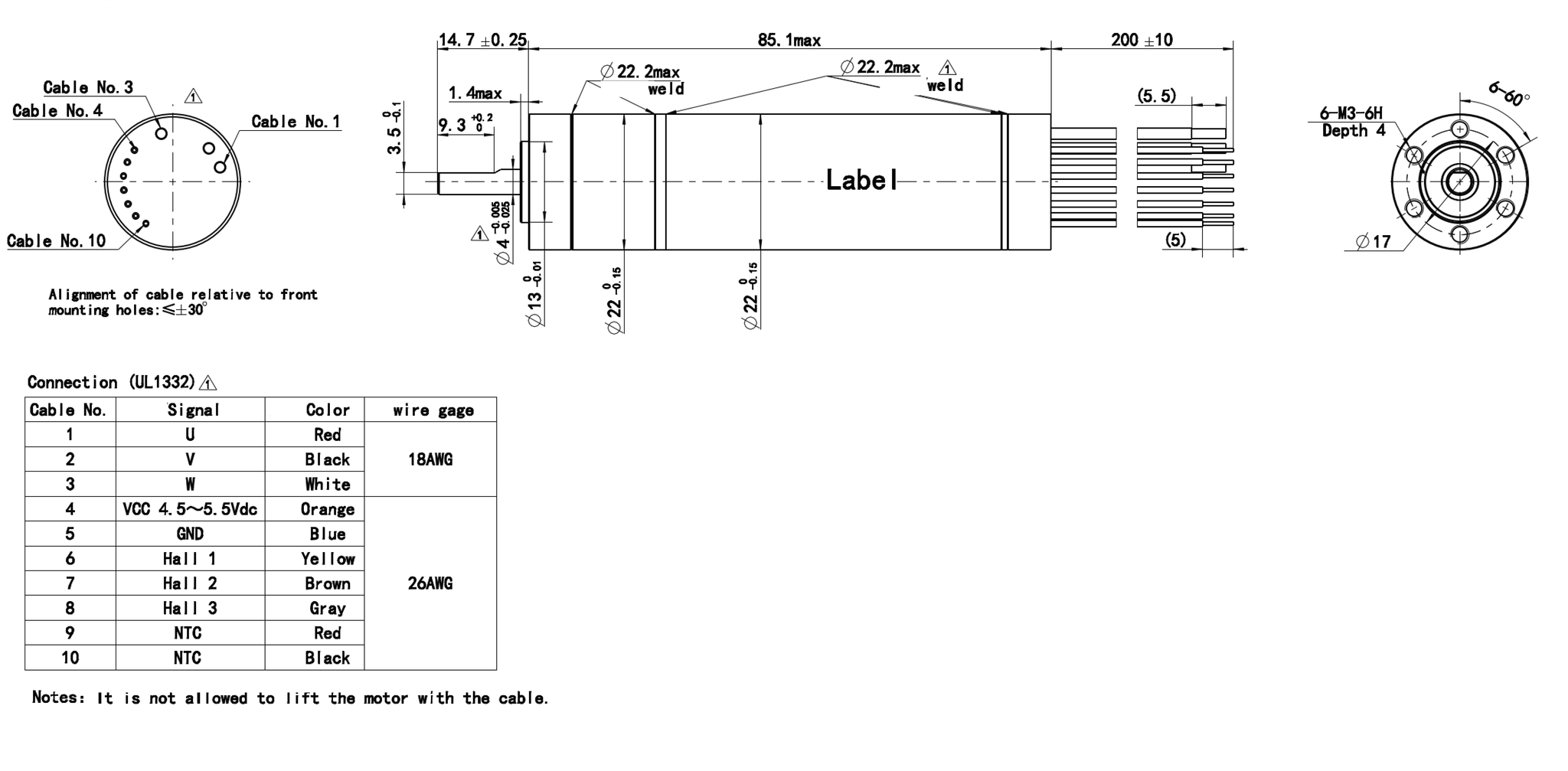

Dimensions

ModelDIM. A (length) in MAX
SLT22CH064-24-G4-MH22-10243.350 in

Performance Curve

SLT22CH064-24-G4-MH22-1024
@24 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH064 Series

Downloads

SLT22CH064-24-G4-MH22-1024 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
