SLT22CH064 Series
SLT22CH064-24
Slotless BLDC Motor

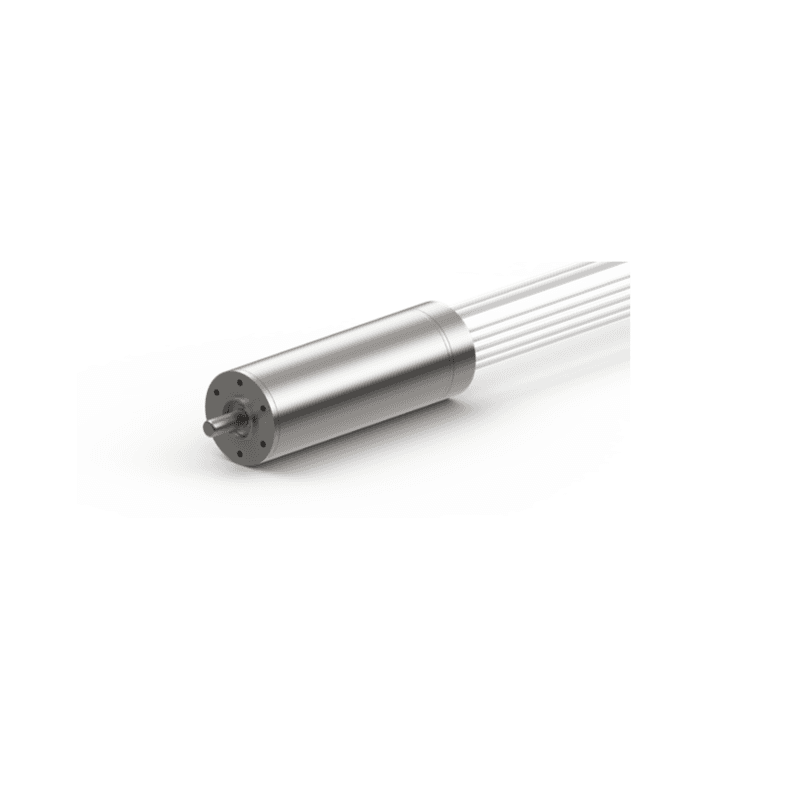

Featured product media

Quick Facts

SLT22CH064-24 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 1.89 A Rated Current
  • 6.3725 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.520 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.309 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 10600 RPM
No Load Current401 mA
Nominal Speed9855 RPM
Rated Speed8768 RPM
Rated Torque6.3725 oz-in
Rated Current1.89 A
Stall Torque109.2819 oz-in
Stall Current35.6 A
Max. Efficiency89.1%

Motor Characteristics

Terminal Resistance0.675 ohm
Terminal Inductance0.04775 mH
Speed/Torque Gradient 1.9373 RPM/oz-in
Speed Constant440 RPM/V
Mechanical Time Constant1.5 ms
Rotor Inertia0.057 oz-in²

Motor Mechanical Data

Max. Radial Load6.519 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor615 s
Thermal time constant winding7 s

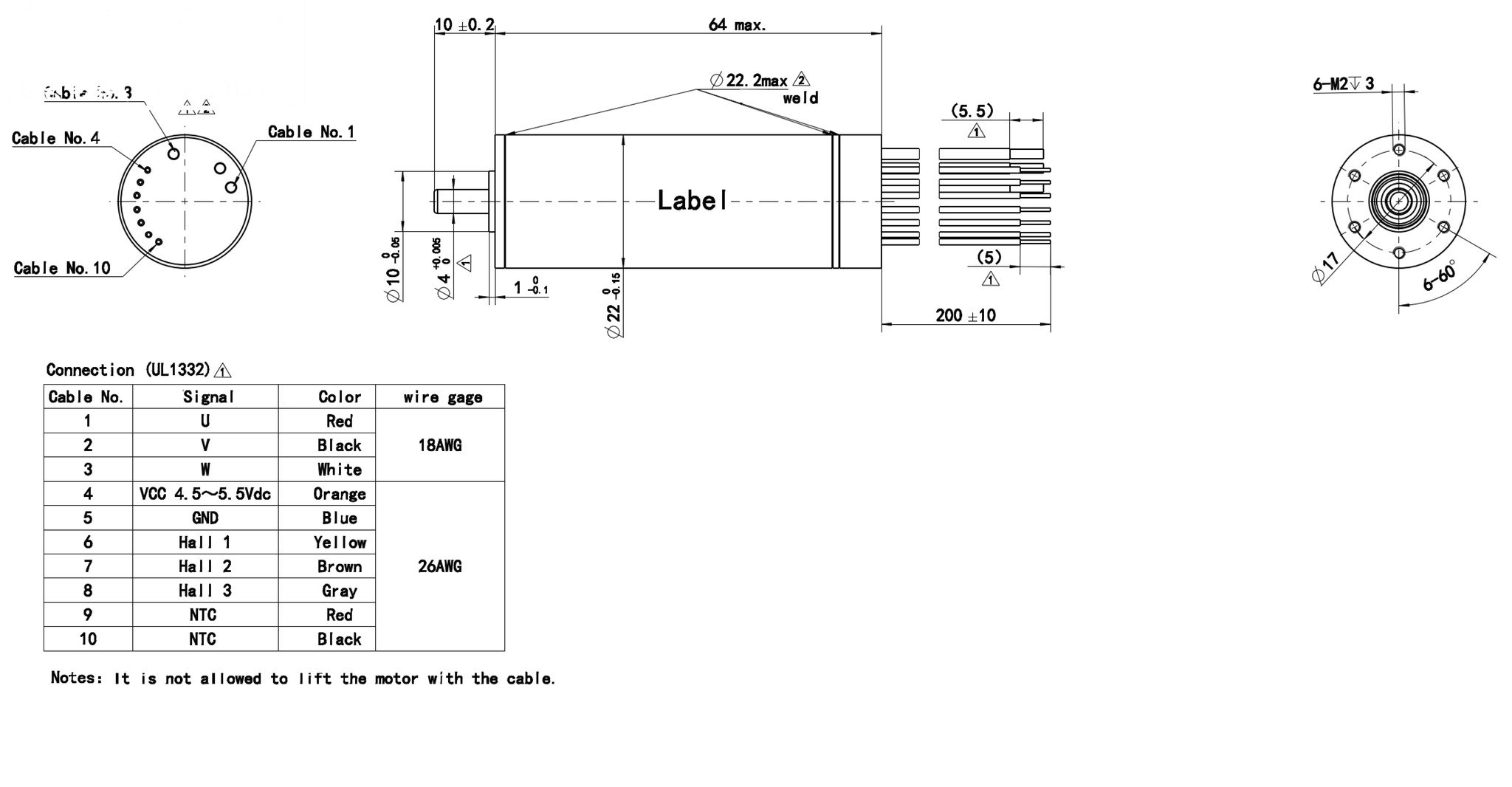

Dimensions

ModelDIM. A (length) in MAX
SLT22CH064-242.520 in

Performance Curve

SLT22CH064-24
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH064 Series

Downloads

SLT22CH064-24 Configured Datasheet (PDF)
