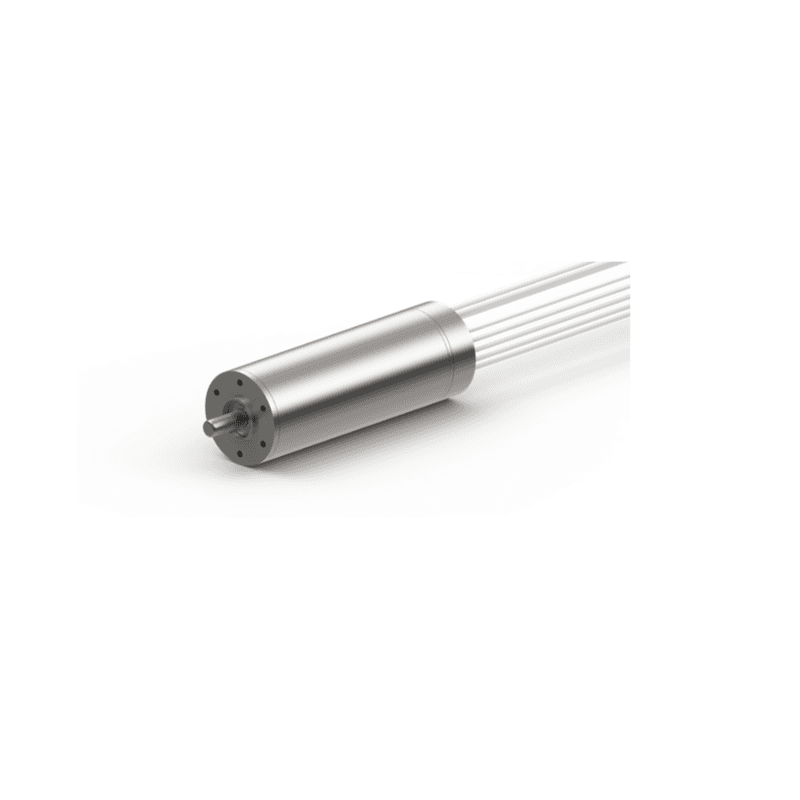

SLT22CH064 Series
SLT22CH064-12
Slotless BLDC Motor

Name: SLT22CH064-12
Brand: Lin Engineering
SKU: SLT22CH064-12
Price: 409 USD
Availability: PreOrder

Quick Facts

SLT22CH064-12 Slotless BLDC Motors

Specifications:

0.870 in Frame Size
3.76 A Rated Current
6.3725 oz-in Rated Torque
12 VDC Nominal Voltage
2.520 in Length

Specifications

Motor Specifications

Frame Size	0.870 in
Motor Type	Motor Only
Weight	0.309 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	12 VDC
No Load Speed	10400 RPM
No Load Current	409 mA
Nominal Speed	9566 RPM
Rated Speed	7254 RPM
Rated Torque	6.3725 oz-in
Rated Current	3.76 A
Stall Torque	99.1284 oz-in
Stall Current	64.5 A
Max. Efficiency	87%

Motor Characteristics

Terminal Resistance	0.186 ohm
Terminal Inductance	0.01194 mH
Speed/Torque Gradient	2.1369 RPM/oz-in
Speed Constant	880 RPM/V
Mechanical Time Constant	1.66 ms
Rotor Inertia	0.057 oz-in²

Motor Mechanical Data

Max. Radial Load

6.519 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal time constant motor	615 s
Thermal time constant winding	7 s

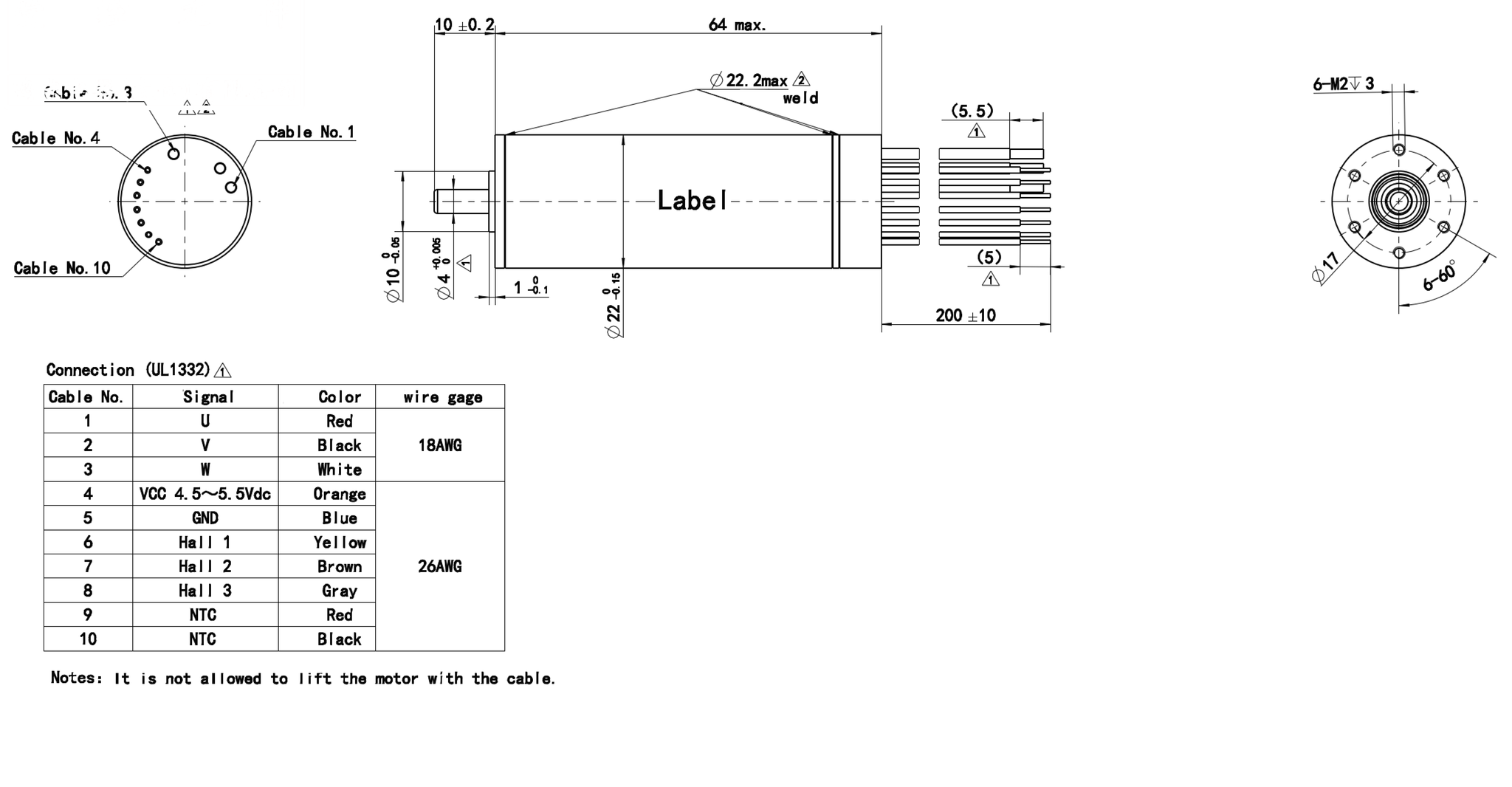

Dimensions

Model	DIM. A (length) in MAX
SLT22CH064-12	2.520 in

Performance Curve

SLT22CH064-12
^{@12 VDC}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH064 Series

Downloads

SLT22CH064-12 Configured Datasheet (PDF)
