SLT22CH064 Series
SLT22CH064-48
Slotless BLDC Motor

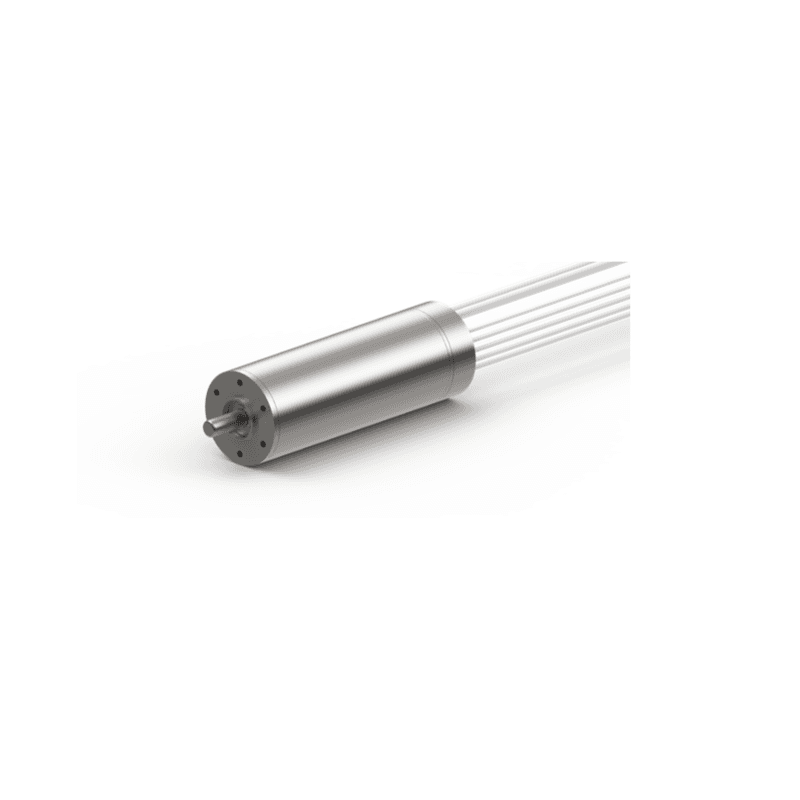

Featured product media

Quick Facts

SLT22CH064-48 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.98 A Rated Current
  • 6.3725 oz-in Rated Torque
  • 48 VDC Nominal Voltage
  • 2.520 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.309 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage48 VDC
No Load Speed 11000 RPM
No Load Current297 mA
Nominal Speed10322 RPM
Rated Speed9532 RPM
Rated Torque6.3725 oz-in
Rated Current0.98 A
Stall Torque115.1517 oz-in
Stall Current19.5 A
Max. Efficiency89%

Motor Characteristics

Terminal Resistance2.462 ohm
Terminal Inductance0.1764 mH
Speed/Torque Gradient 1.9146 RPM/oz-in
Speed Constant229 RPM/V
Mechanical Time Constant1.49 ms
Rotor Inertia0.057 oz-in²

Motor Mechanical Data

Max. Radial Load6.519 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor615 s
Thermal time constant winding7 s

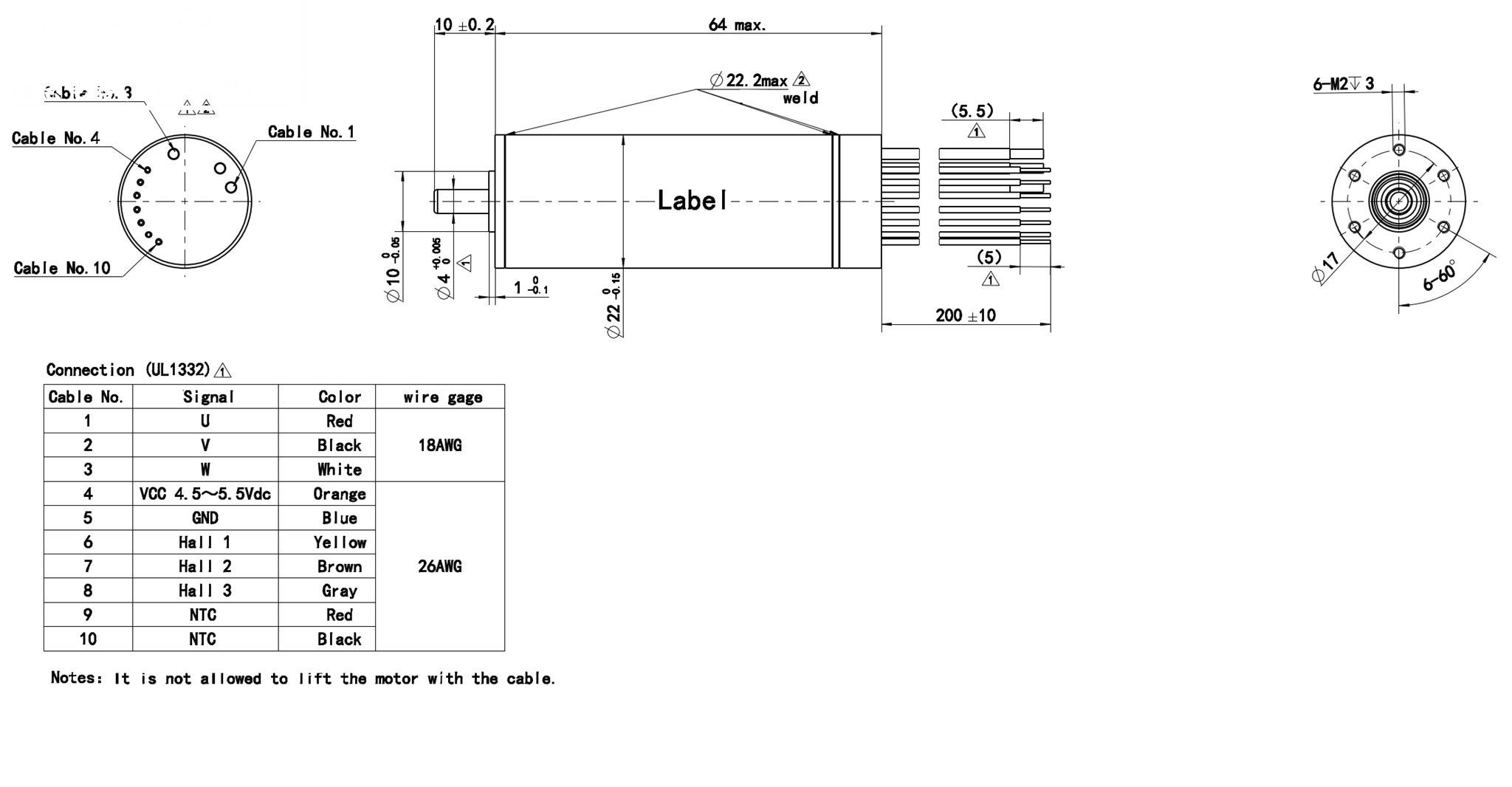

Dimensions

ModelDIM. A (length) in MAX
SLT22CH064-482.520 in

Performance Curve

SLT22CH064-48
@48 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH064 Series

Downloads

SLT22CH064-48 Configured Datasheet (PDF)
