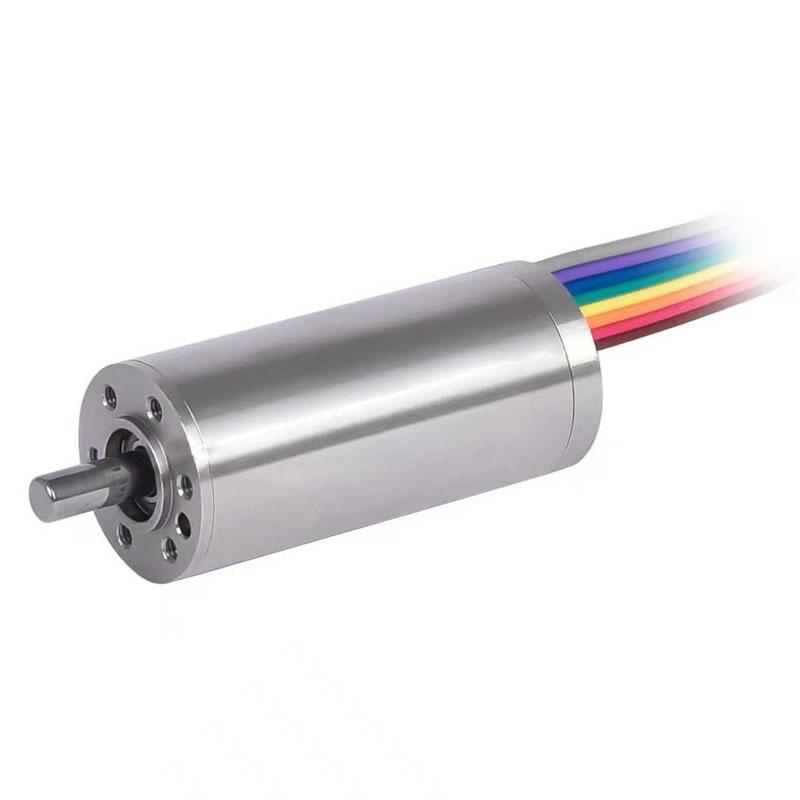

SLU19CH058 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLU19CH058-12 | 0.750 in | 2.280 in | 12 VDC | 11570 RPM | 2.4074 oz-in | 14800 RPM | 260 mA | NA | 0.225 lbs | 2.05 A | Quote |
| SLU19CH058-24 | 0.750 in | 2.280 in | 24 VDC | 12806 RPM | 3.1155 oz-in | 14800 RPM | 254 mA | NA | 0.225 lbs | 1.32 A | Quote |
| SLU19CH058-24-G21-M16-1024 | 0.750 in | 3.480 in | 24 VDC | 611 RPM | 57.0696 oz-in | 706 RPM | 254 mA | 21:1 | 0.325 lbs | 1.32 A | Quote |
| SLU19CH058-24-G4-M16-1024 | 0.750 in | 3.270 in | 24 VDC | 3244 RPM | 11.3148 oz-in | 3749 RPM | 254 mA | 4:1 | 0.305 lbs | 1.32 A | Quote |
| SLU19CH058-24-G406-M16-1024 | 0.750 in | 3.910 in | 24 VDC | 36 RPM | 113.2895 oz-in | 36 RPM | 254 mA | 406:1 | 0.365 lbs | 0.324 A | Quote |
| SLU19CH058-24-G83-M16-1024 | 0.750 in | 3.690 in | 24 VDC | 168 RPM | 92.0478 oz-in | 179 RPM | 254 mA | 83:1 | 0.345 lbs | 0.69 A | Quote |
| SLU19CH058-36 | 0.750 in | 2.280 in | 36 VDC | 13097 RPM | 3.0447 oz-in | 15000 RPM | 196 mA | NA | 0.225 lbs | 0.87 A | Quote |
| SLU19CH058-48 | 0.750 in | 2.280 in | 48 VDC | 13321 RPM | 2.903 oz-in | 15000 RPM | 156 mA | NA | 0.225 lbs | 0.63 A | Quote |
