SLU19CH058 Series
SLU19CH058-12
Slotless BLDC Motor

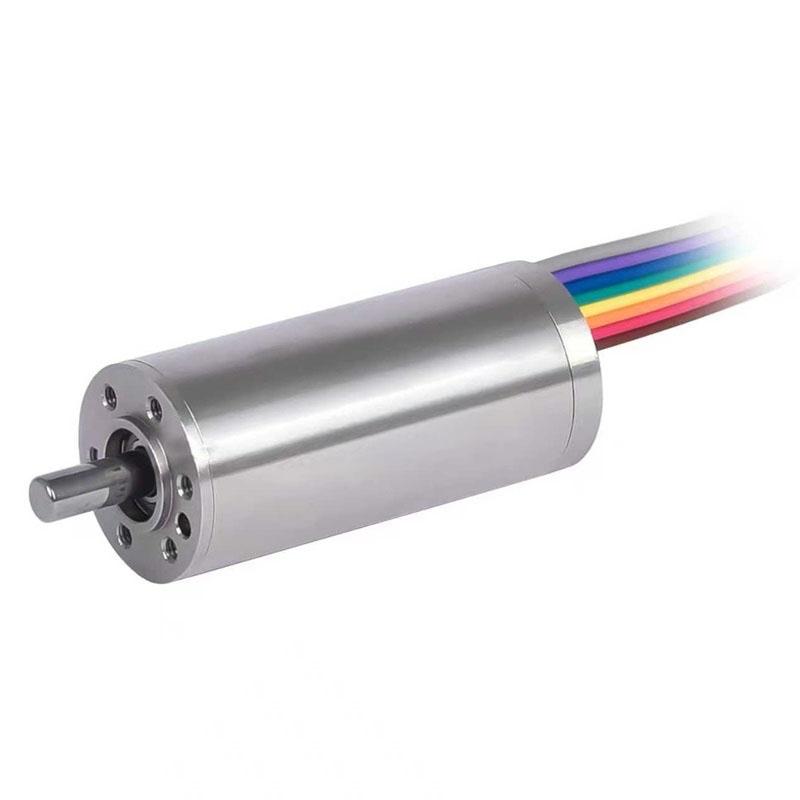

Featured product media

Quick Facts

SLU19CH058-12 Slotless BLDC Motors

Specifications:
  • 0.750 in Frame Size
  • 2.05 A Rated Current
  • 2.4074 oz-in Rated Torque
  • 12 VDC Nominal Voltage
  • 2.280 in Length

Specifications

Motor Specifications

Frame Size0.750 in
Motor TypeMotor Only
Weight0.225 lbs

Motor Values (At Nominal Speed)

Nominal Voltage12 VDC
No Load Speed 14800 RPM
No Load Current260 mA
Nominal Speed11570 RPM
Nominal Torque (Max Cont. Torque)2.4074 oz-in
Rated Speed11570 RPM
Rated Torque2.4074 oz-in
Rated Current2.05 A
Stall Torque36.5359 oz-in
Stall Current33.33 A
Max. Efficiency83.7%

Motor Characteristics

Terminal Resistance0.35 ohm
Terminal Inductance0.04 mH
Speed/Torque Gradient 8.0719 RPM/oz-in
Speed Constant1234 RPM/V
Mechanical Time Constant1.54 ms
Rotor Inertia0.014 oz-in²

Motor Mechanical Data

Max. Radial Load2.136 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor300 s
Thermal time constant winding2.46 s

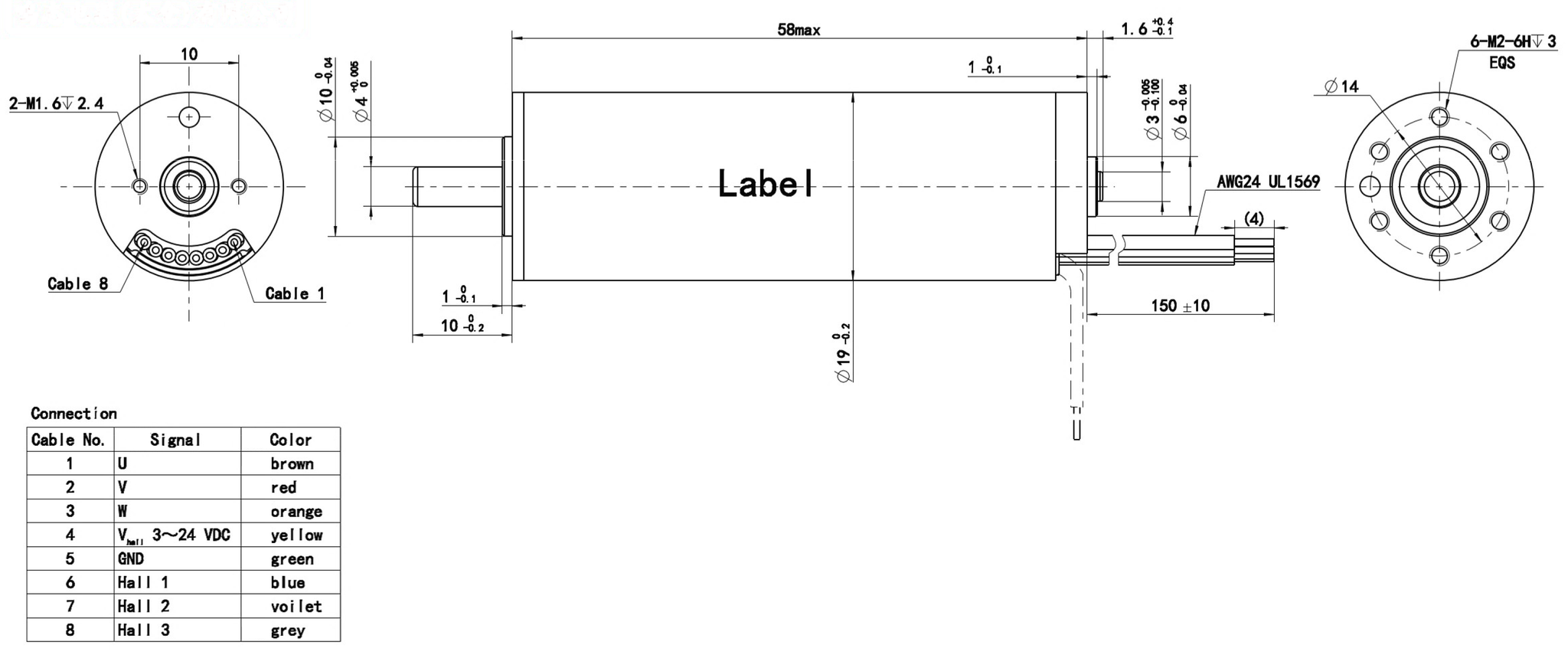

Dimensions

ModelDIM. A (length) in MAX
SLU19CH058-122.280 in

Performance Curve

SLU19CH058-12
@12 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU19CH058 Series

Downloads

SLU19CH058-12 Configured Datasheet (PDF)
SLU19CH058-12 (3D model) (STP)
