SLU19CH058 Series

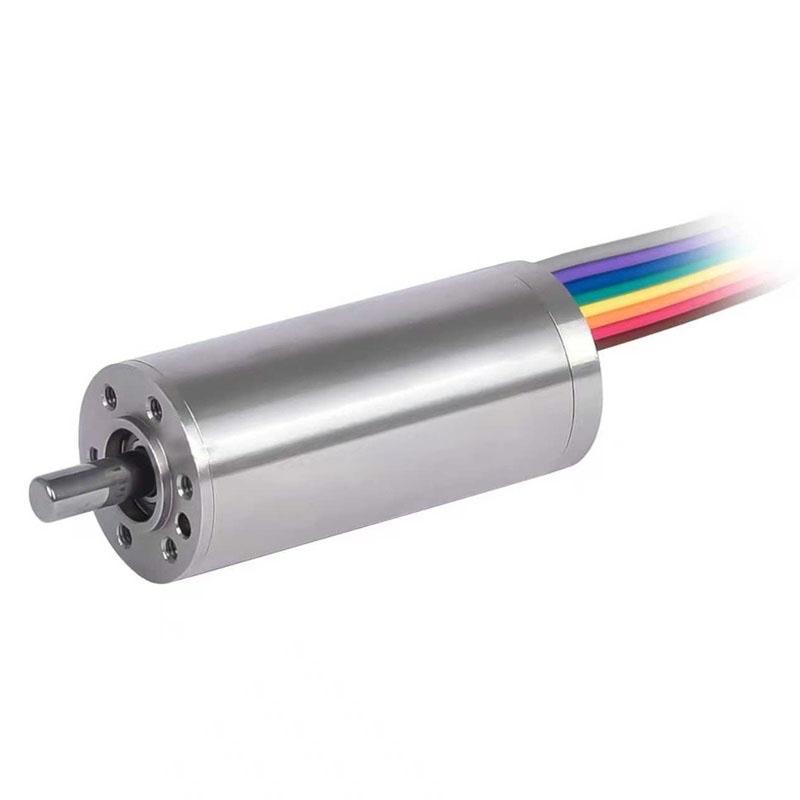

SLU19CH058-24-G4-M16-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLU19CH058-24-G4-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.750 in Frame Size
  • 1.32 A Rated Current
  • 11.3148 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 3.270 in Length

Specifications

Motor Specifications

Frame Size0.750 in
Motor TypeMotor + Encoder + Gearhead
Weight0.305 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 3749 RPM
No Load Current254 mA
Nominal Speed3202 RPM
Nominal Torque (Max Cont. Torque)11.3148 oz-in
Rated Speed3244 RPM
Rated Torque11.3148 oz-in
Rated Current1.32 A
Stall Torque148.6925 oz-in
Stall Current18.6 A
Max. Efficiency79.3%

Motor Characteristics

Terminal Resistance1.29 ohm
Terminal Inductance0.156 mH
Speed/Torque Gradient 7.2222 RPM/oz-in
Speed Constant614 RPM/V
Mechanical Time Constant1.37 ms

Motor Mechanical Data

Max. Radial Load12.364 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor500 s
Thermal time constant winding2.91 s

Gearhead Specifications

Gearhead Reduction Ratio4
Nominal Reduction Ratio4

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Performance Curve

SLU19CH058-24-G4-M16-1024
@24 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU19CH058 Series

Downloads

SLU19CH058-24-G4-M16-1024 Configured Datasheet (PDF)
SLU19CH058-24-G4-M16-1024 (3D model) (STP)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
