SLU19CH058 Series
SLU19CH058-36

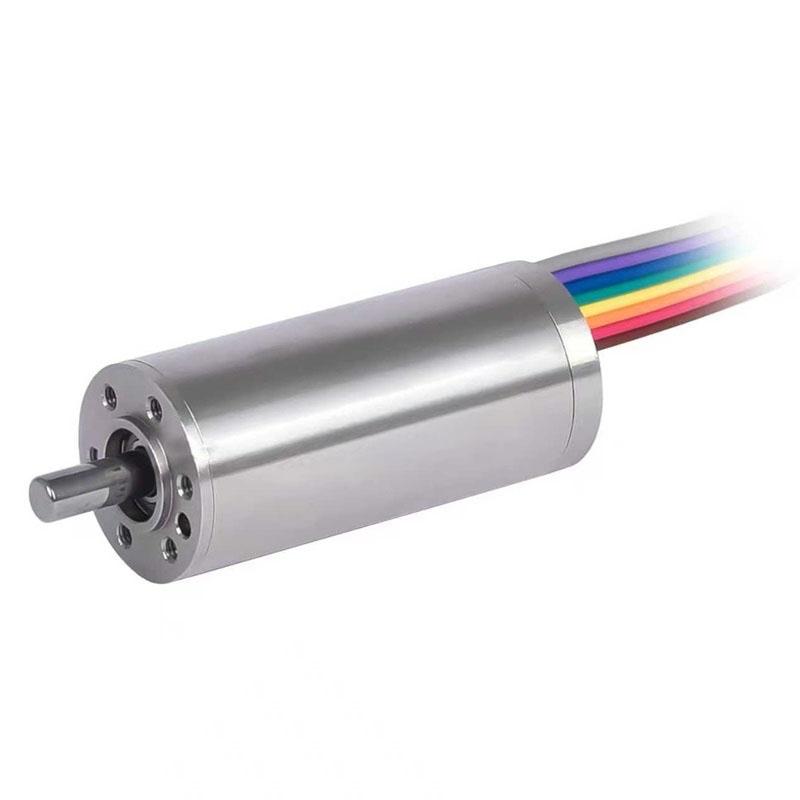

Slotless BLDC Motor

Name: SLU19CH058-36
Brand: Lin Engineering
SKU: SLU19CH058-36
Price: 200 USD
Availability: PreOrder

Quick Facts

SLU19CH058-36 Slotless BLDC Motors

Specifications:

0.750 in Frame Size
0.87 A Rated Current
3.0447 oz-in Rated Torque
36 VDC Nominal Voltage
2.280 in Length

Specifications

Motor Specifications

Frame Size	0.750 in
Motor Type	Motor Only
Weight	0.225 lbs

Motor Values (At Nominal Speed)

Nominal Voltage	36 VDC
No Load Speed	15000 RPM
No Load Current	196 mA
Nominal Speed	13097 RPM
Nominal Torque (Max Cont. Torque)	3.0447 oz-in
Rated Speed	13097 RPM
Rated Torque	3.0447 oz-in
Rated Current	0.87 A
Stall Torque	42.257 oz-in
Stall Current	12.72 A
Max. Efficiency	85.7%

Motor Characteristics

Terminal Resistance	2.83 ohm
Terminal Inductance	0.355 mH
Speed/Torque Gradient	6.939 RPM/oz-in
Speed Constant	407 RPM/V
Mechanical Time Constant	1.32 ms
Rotor Inertia	0.014 oz-in²

Motor Mechanical Data

Max. Radial Load

2.136 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Thermal time constant motor	500 s
Thermal time constant winding	2.91 s

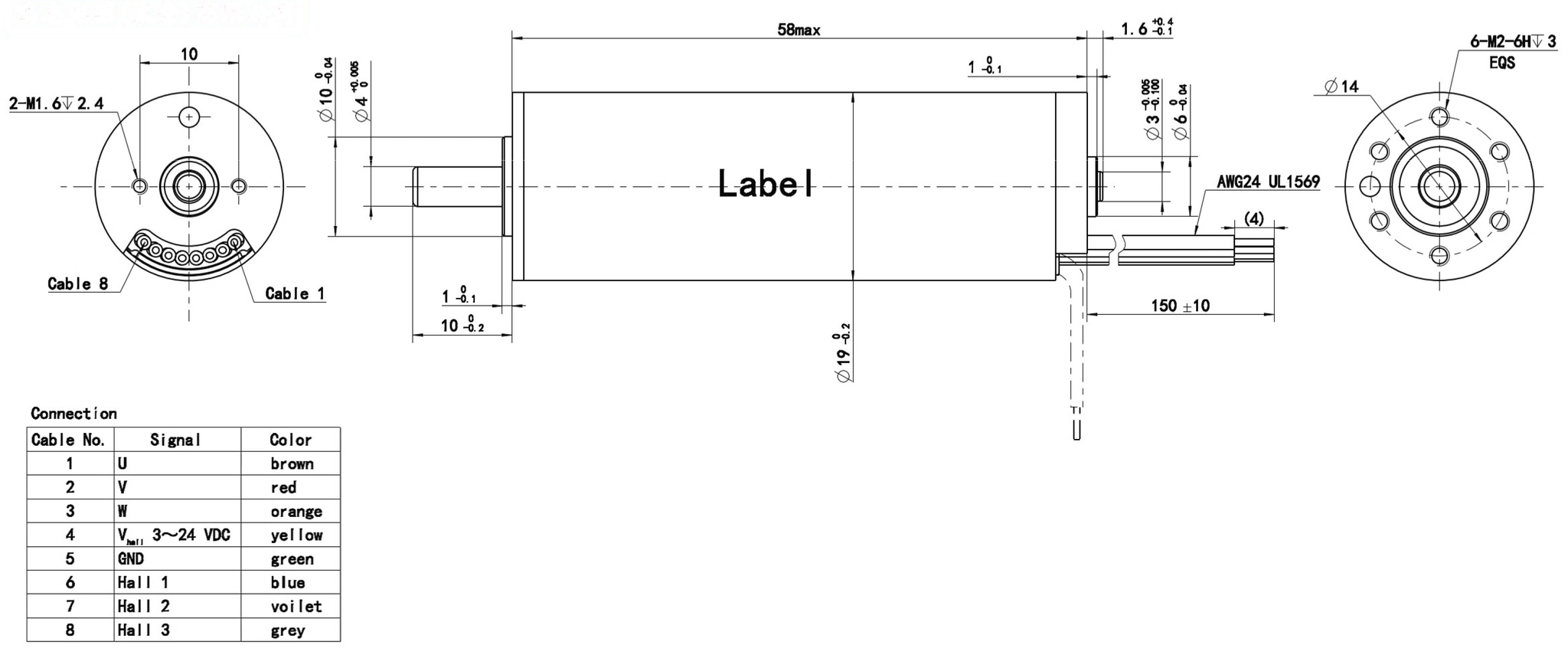

Dimensions

Model	DIM. A (length) in MAX
SLU19CH058-36	2.280 in

Performance Curve

SLU19CH058-36
^{@36 VDC}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLU19CH058 Series

Downloads

SLU19CH058-36 Configured Datasheet (PDF)

SLU19CH058-36 (3D model) (STP)
