SLU19CH058 Series
SLU19CH058-24-G406-M16-1024

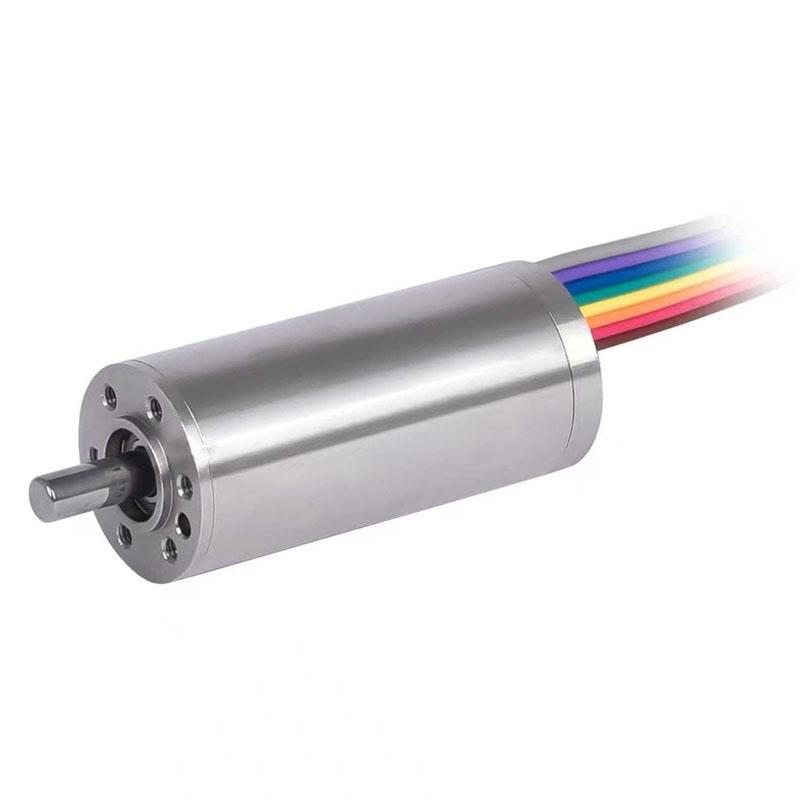

Slotless BLDC Motor

Name: SLU19CH058-24-G406-M16-1024
Brand: Lin Engineering
SKU: SLU19CH058-24-G406-M16-1024
Price: 442 USD
Availability: PreOrder

Quick Facts

SLU19CH058-24-G406-M16-1024 Slotless BLDC Motors

Specifications:

0.750 in Frame Size
0.324 A Rated Current
113.2895 oz-in Rated Torque
24 VDC Nominal Voltage
3.910 in Length

Specifications

Motor Specifications

Frame Size	0.750 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.365 lbs

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	36 RPM
No Load Current	254 mA
Nominal Speed	32 RPM
Rated Speed	36 RPM
Rated Torque	113.2895 oz-in
Rated Current	0.324 A
Stall Torque	11803.7792 oz-in
Stall Current	18.6 A
Max. Efficiency	61.2%

Motor Characteristics

Terminal Resistance	1.29 ohm
Terminal Inductance	0.156 mH
Speed/Torque Gradient	7.2222 RPM/oz-in
Speed Constant	614 RPM/V
Mechanical Time Constant	1.37 ms

Motor Mechanical Data

Max. Radial Load

12.364 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F
Thermal time constant motor	500 s
Thermal time constant winding	2.91 s

Gearhead Specifications

Gearhead Reduction Ratio	406
Nominal Reduction Ratio	406

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

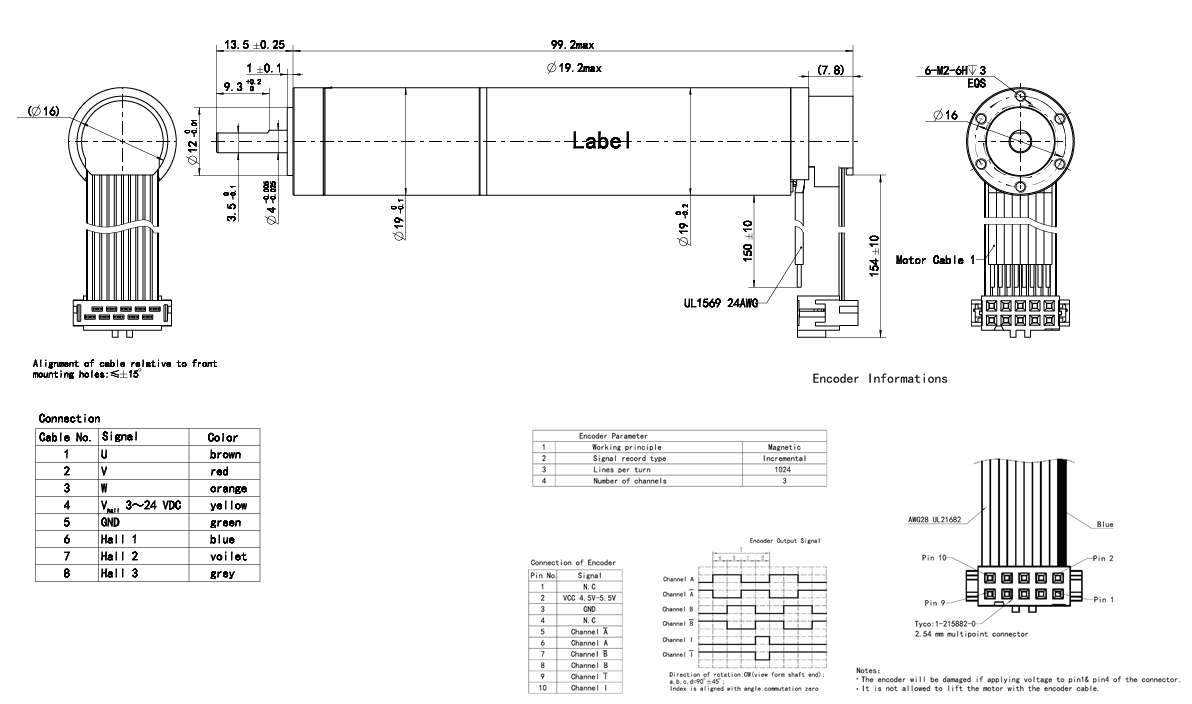

Dimensions

Model	DIM. A (length) in MAX
SLU19CH058-24-G406-M16-1024	3.910 in

Performance Curve

SLU19CH058-24-G406-M16-1024
^{@24 VDC, 406:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLU19CH058 Series

Downloads

SLU19CH058-24-G406-M16-1024 Configured Datasheet (PDF)
