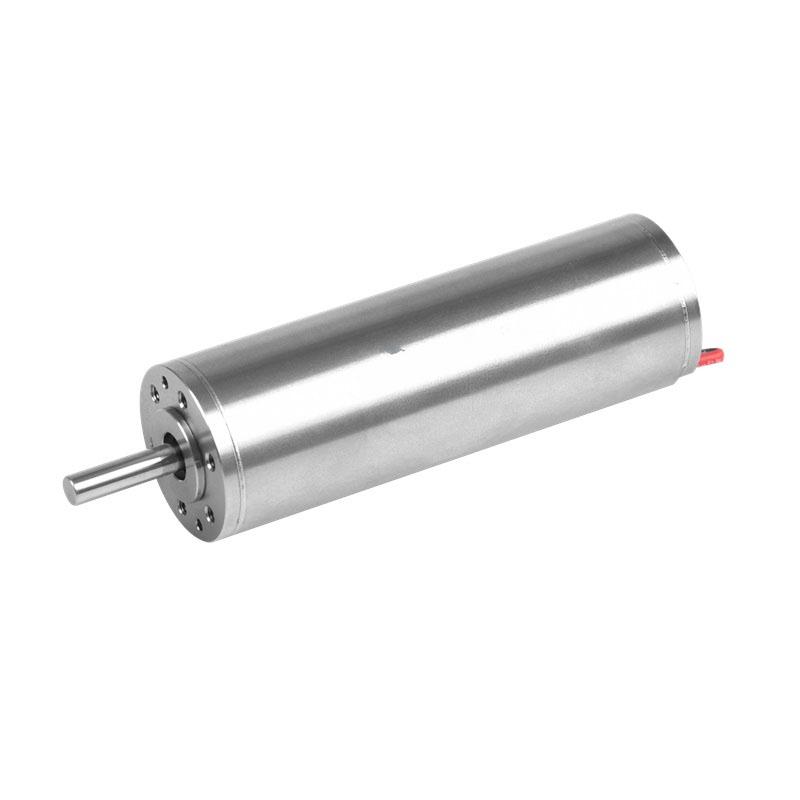

SLT30CH090 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLT30CH090-24 | 1.180 in | 3.540 in | 24 VDC | 8520 RPM | 19.1176 oz-in | 10500 RPM | 850 mA | NA | 0.882 lbs | 5.82 A | Quote |
| SLT30CH090-24-G35-M30-1024 | 1.180 in | 5.020 in | 24 VDC | 272 RPM | 410.6746 oz-in | 294 RPM | 990 mA | 35:1 | 1.274 lbs | 4.47 A | Quote |
| SLT30CH090-24-G4-M30-1024 | 1.180 in | 4.690 in | 18 VDC | 1498 RPM | 67.9737 oz-in | 2031 RPM | 820 mA | 4:1 | 1.199 lbs | 5.8 A | Quote |
| SLT30CH090-24-G62 | 1.180 in | 5.340 in | 18 VDC | 118.6 RPM | 708.0597 oz-in | 128 RPM | 1000 mA | 62:1 | 1.274 lbs | 4.45 A | Quote |
| SLT30CH090-24-M30-1024 | 1.180 in | 3.540 in | 24 VDC | 8520 RPM | 19.1176 oz-in | 10500 RPM | 850 mA | NA | 0.891 lbs | 5.82 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
