SLT30CH090 Series
SLT30CH090-24-G35-M30-1024
Slotless BLDC Motor

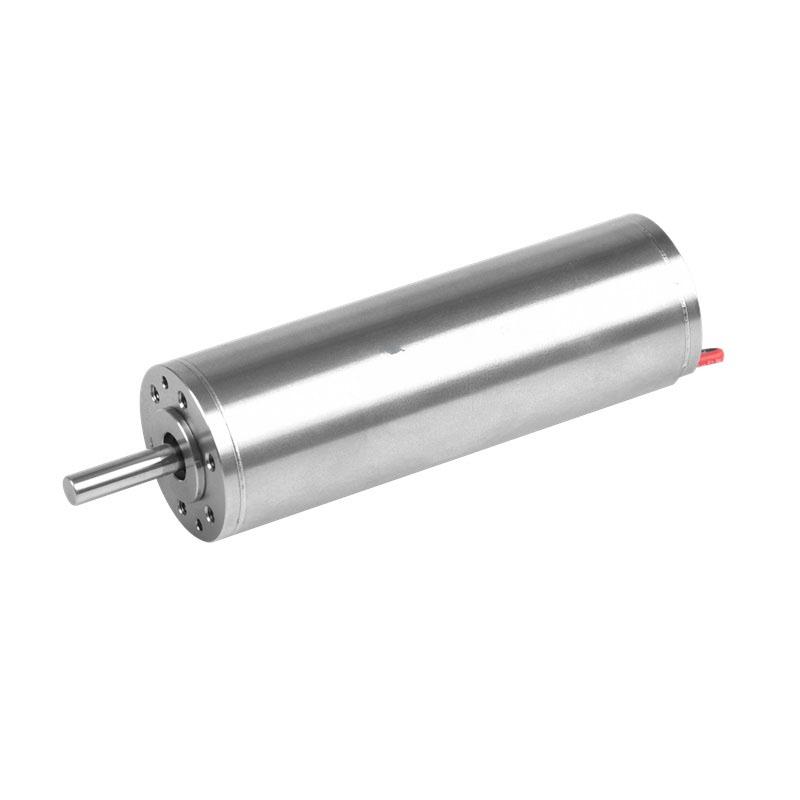

Featured product media

Quick Facts

SLT30CH090-24-G35-M30-1024 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 4.47 A Rated Current
  • 410.6746 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 5.020 in Length

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor + Encoder + Gearhead
Weight1.274 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 294 RPM
No Load Current990 mA
Nominal Speed272 RPM
Rated Speed272 RPM
Rated Torque410.6746 oz-in
Rated Current4.47 A
Stall Torque21737.4313 oz-in
Stall Current237 A
Max. Efficiency78%

Motor Characteristics

Terminal Resistance0.101 ohm
Terminal Inductance0.014 mH
Speed/Torque Gradient 0.2974 RPM/oz-in
Speed Constant444 RPM/V
Mechanical Time Constant1.32 ms
Rotor Inertia0.246 oz-in²

Motor Mechanical Data

Max. Radial Load40.464 lbf

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio35
Nominal Reduction Ratio35

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

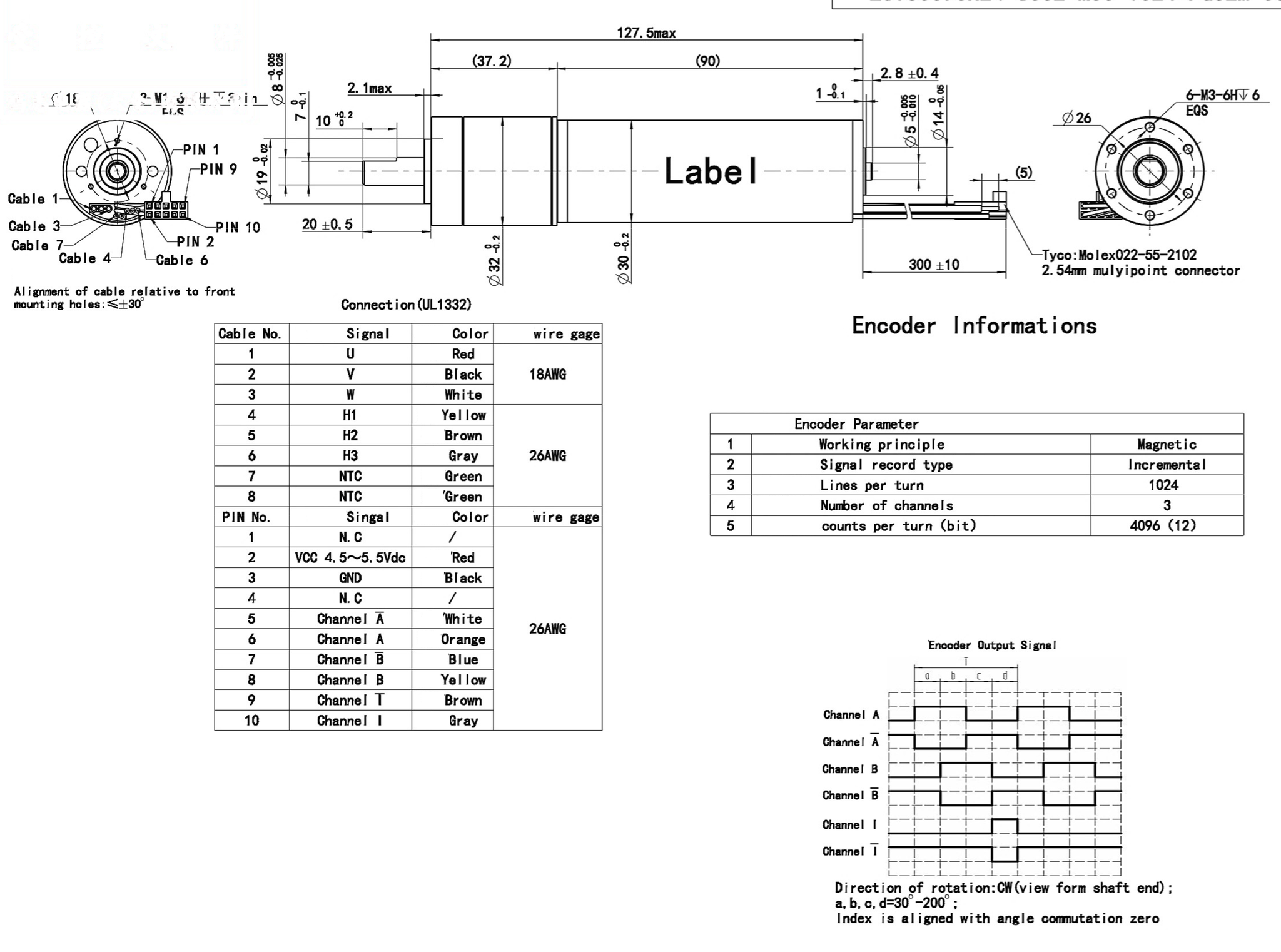

Dimensions

ModelDIM. A (length) in MAX
SLT30CH090-24-G35-M30-10245.020 in

Performance Curve

SLT30CH090-24-G35-M30-1024
@24 VDC, 35:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT30CH090 Series

Downloads

SLT30CH090-24-G35-M30-1024 Configured Datasheet (PDF)
