SLT30CH090 Series
SLT30CH090-24-G4-M30-1024
Slotless BLDC Motor

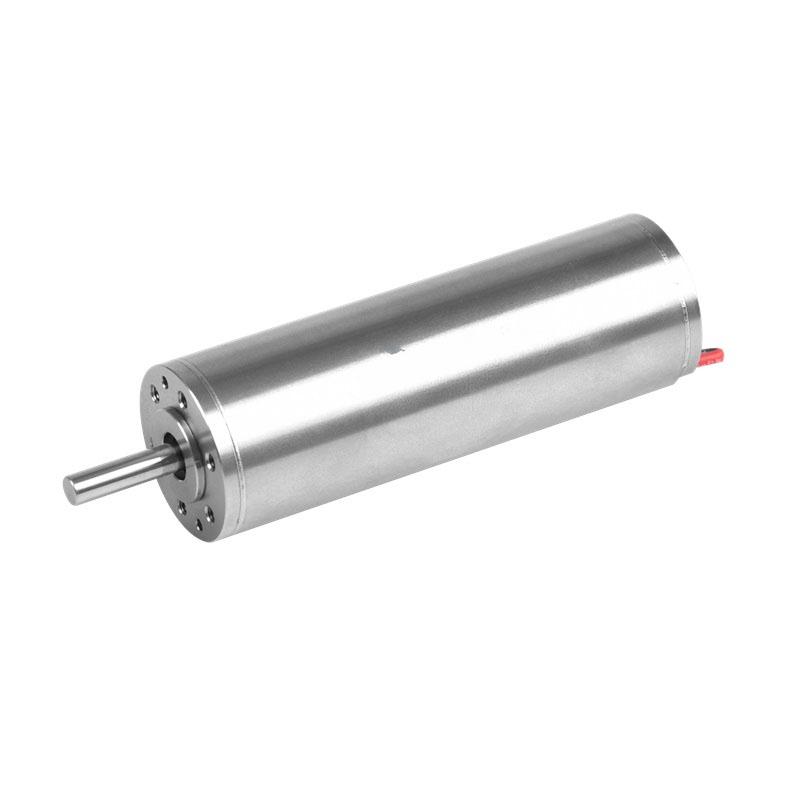

Featured product media

Quick Facts

SLT30CH090-24-G4-M30-1024 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 5.8 A Rated Current
  • 67.9737 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 4.690 in Length

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor + Encoder + Gearhead
Weight1.199 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 2031 RPM
No Load Current820 mA
Nominal Speed2500 RPM
Rated Speed1498 RPM
Rated Torque67.9737 oz-in
Rated Current5.8 A
Stall Torque2336.5968 oz-in
Stall Current224 A
Max. Efficiency81%

Motor Characteristics

Terminal Resistance0.107 ohm
Terminal Inductance0.018 mH
Speed/Torque Gradient 0.3356 RPM/oz-in
Speed Constant460 RPM/V

Motor Mechanical Data

Max. Radial Load40.464 lbf

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio4
Nominal Reduction Ratio4

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

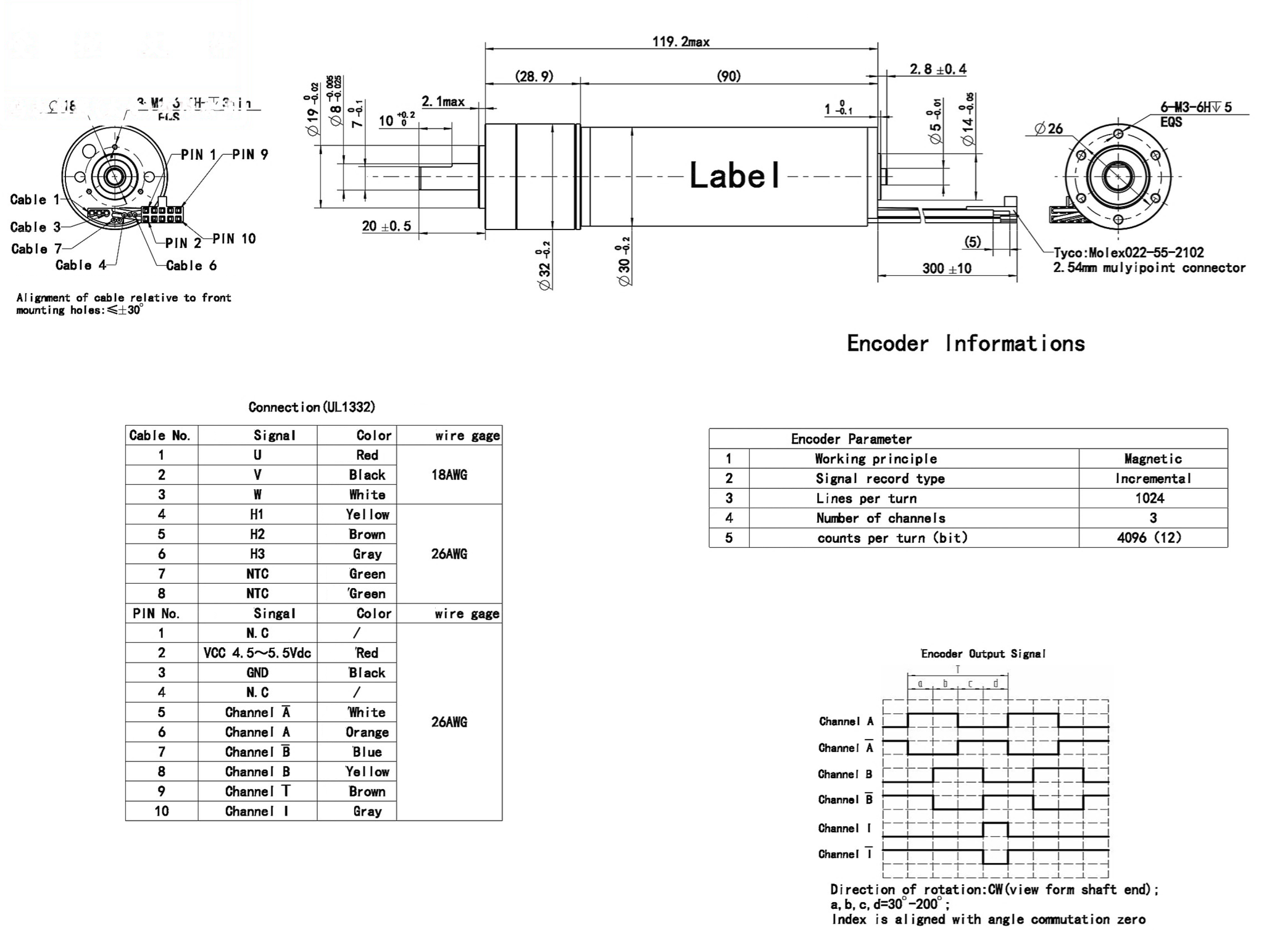

Dimensions

ModelDIM. A (length) in MAX
SLT30CH090-24-G4-M30-10244.690 in

Performance Curve

SLT30CH090-24-G4-M30-1024
@18 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT30CH090 Series

Downloads

SLT30CH090-24-G4-M30-1024 Configured Datasheet (PDF)
