SLT30CH090 Series
SLT30CH090-24-G62
Slotless BLDC Motor

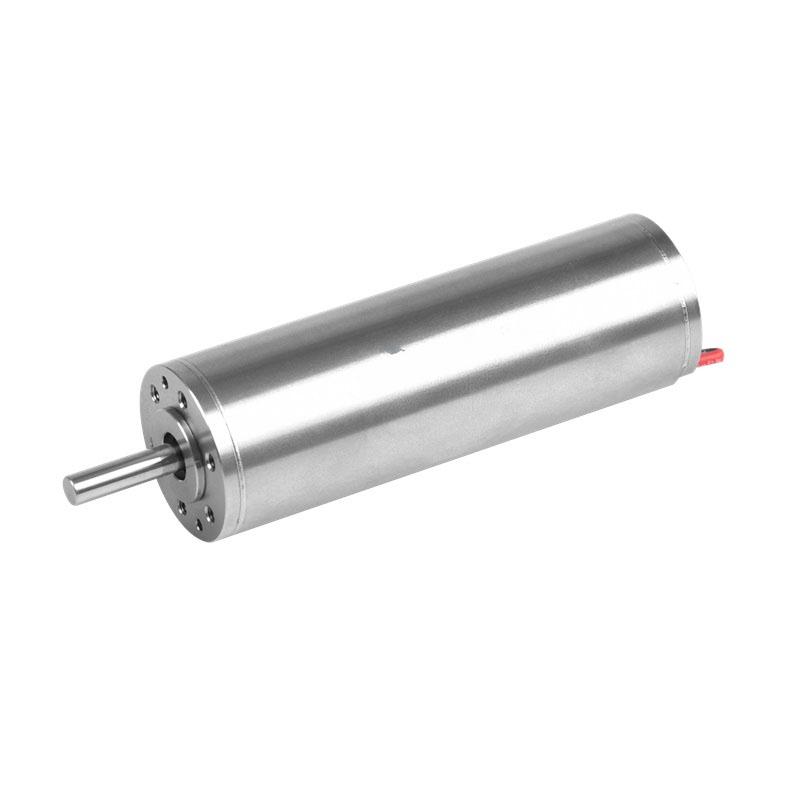

Featured product media

Quick Facts

SLT30CH090-24-G62 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 4.45 A Rated Current
  • 708.0597 oz-in Rated Torque
  • 18 VDC Nominal Voltage
  • 5.340 in Length

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor + Gearhead
Weight1.274 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage18 VDC
No Load Speed 128 RPM
No Load Current1000 mA
Nominal Speed161 RPM
Rated Speed118.6 RPM
Rated Torque708.0597 oz-in
Rated Current4.45 A
Stall Torque26623.0428 oz-in
Stall Current168.2 A
Max. Efficiency78.2%

Motor Characteristics

Terminal Resistance0.107 ohm
Terminal Inductance0.018 mH
Speed/Torque Gradient 0.3215 RPM/oz-in
Speed Constant450 RPM/V

Motor Mechanical Data

Max. Radial Load22.48 lbf

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio62
Nominal Reduction Ratio62

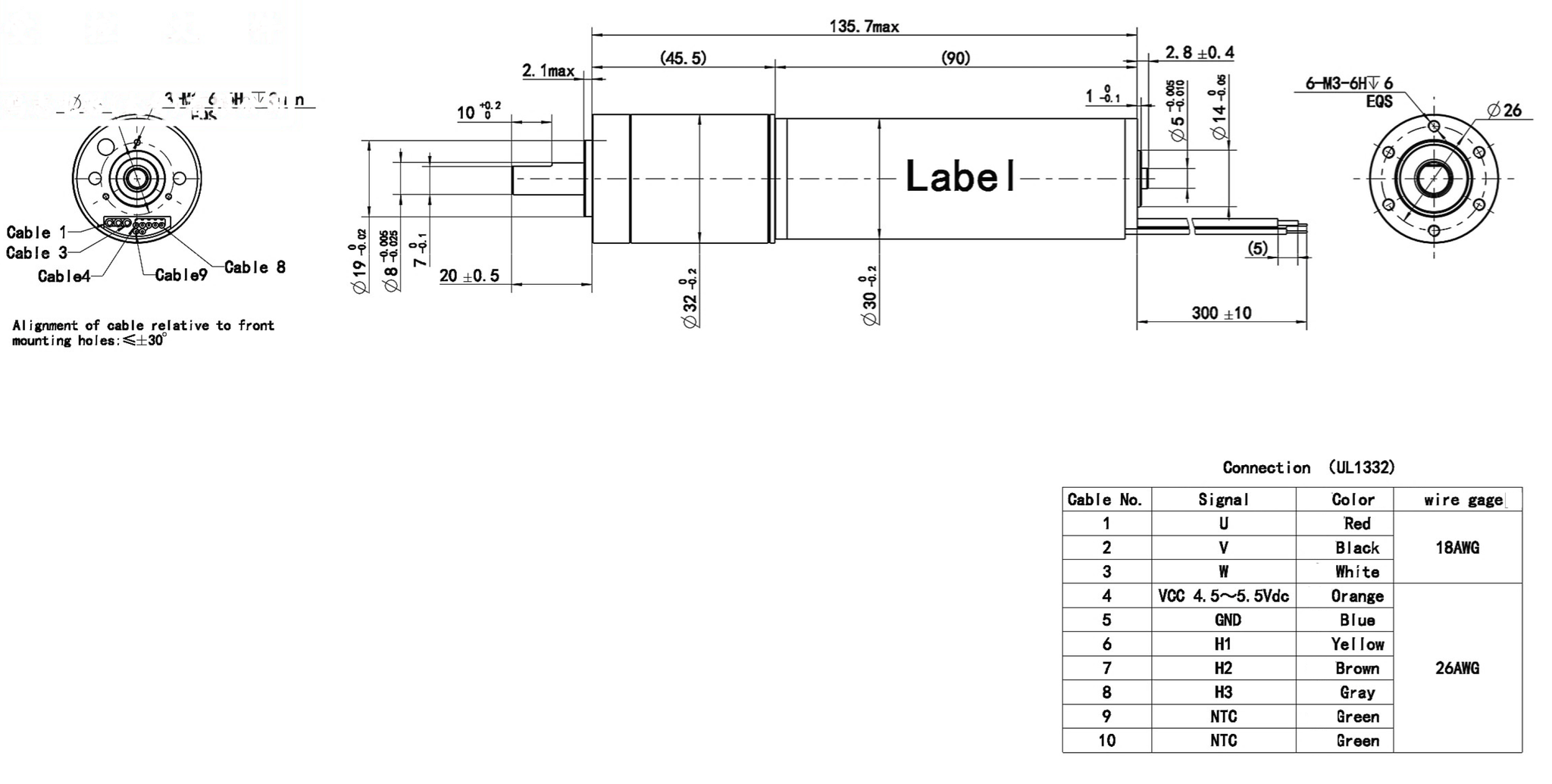

Dimensions

ModelDIM. A (length) in MAX
SLT30CH090-24-G625.340 in

Performance Curve

SLT30CH090-24-G62
@18 VDC, 62:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT30CH090 Series

Downloads

SLT30CH090-24-G62 Configured Datasheet (PDF)
