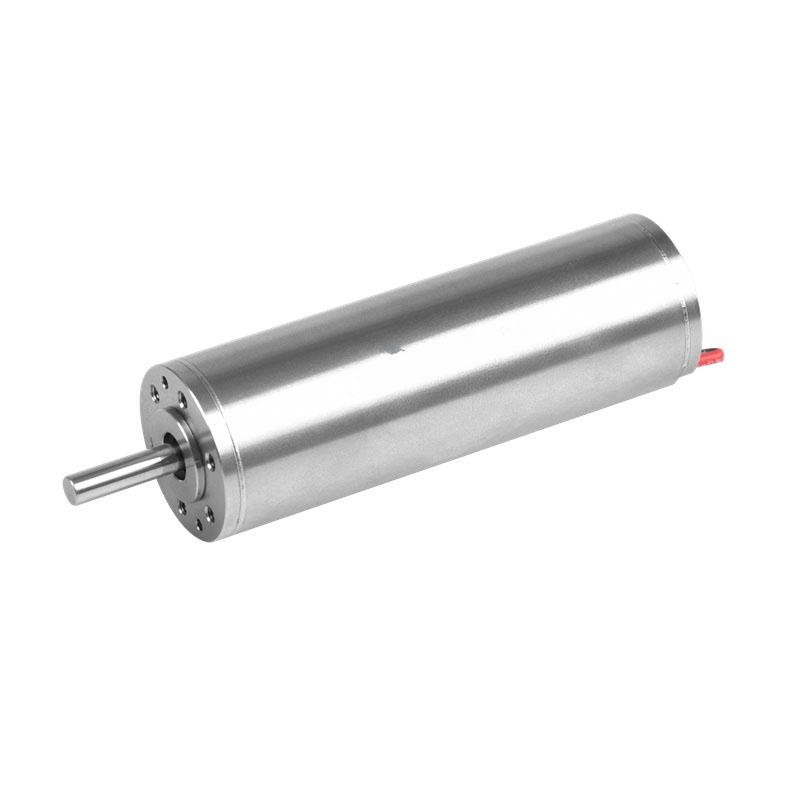

SLT30CH090 Series
SLT30CH090-24
Slotless BLDC Motor

Featured product media

Quick Facts

SLT30CH090-24 Slotless BLDC Motors

Specifications:
  • 1.180 in Frame Size
  • 5.82 A Rated Current
  • 19.1176 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 3.540 in Length

Specifications

Motor Specifications

Frame Size1.180 in
Motor TypeMotor Only
Weight0.882 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 10500 RPM
No Load Current850 mA
Nominal Speed10000 RPM
Rated Speed8520 RPM
Rated Torque19.1176 oz-in
Rated Current5.82 A
Stall Torque674.0445 oz-in
Stall Current224.3 A
Max. Efficiency91%

Motor Characteristics

Terminal Resistance0.107 ohm
Terminal Inductance0.018 mH
Speed/Torque Gradient 0.3215 RPM/oz-in
Speed Constant450 RPM/V
Mechanical Time Constant1.11 ms
Rotor Inertia0.256 oz-in²

Motor Mechanical Data

Max. Radial Load5.62 lbf

Motor Thermal Data

Ambient Temperature-40 °F to 212.00 °F
Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor1570 s
Thermal time constant winding8.4 s

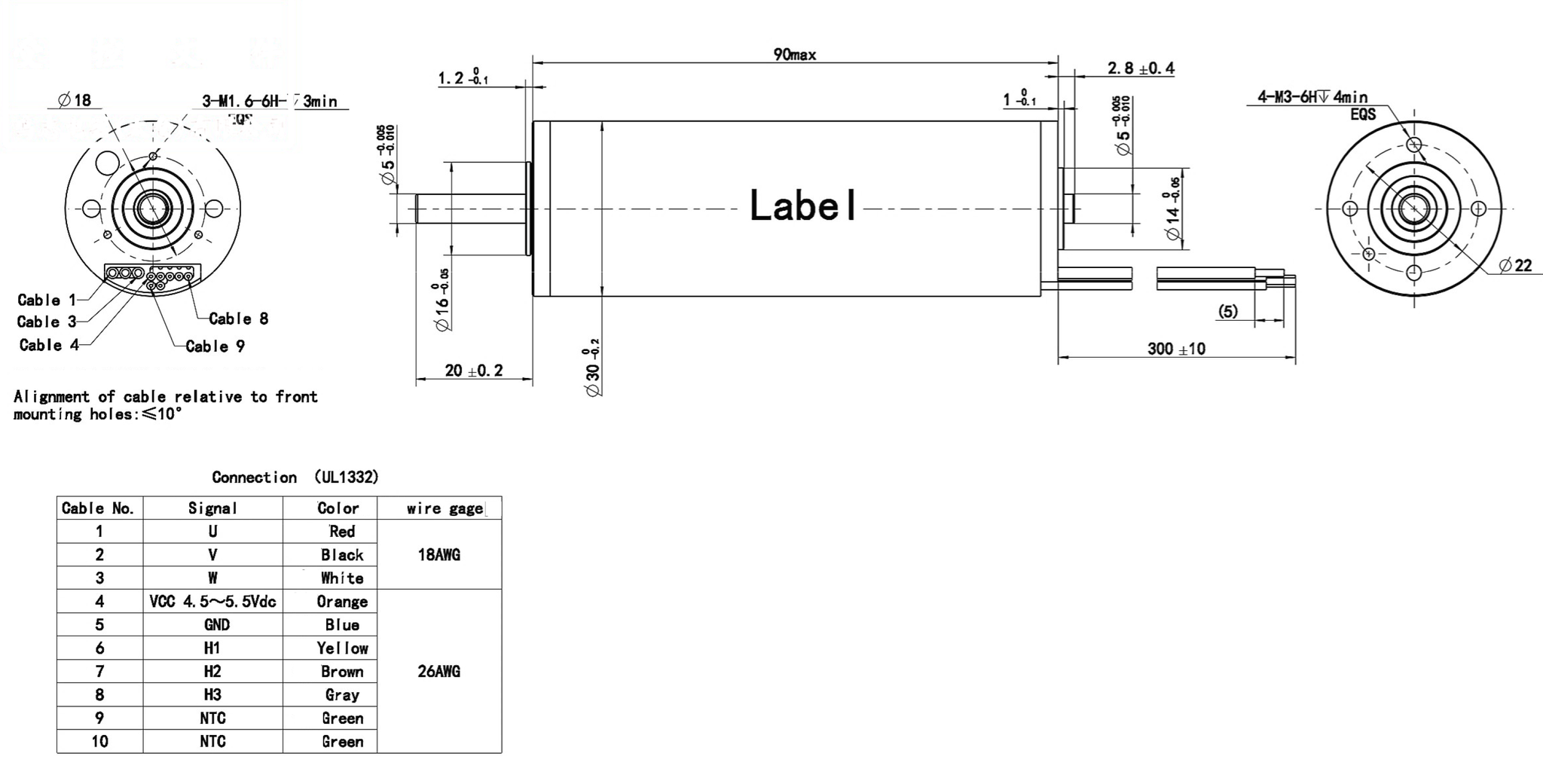

Dimensions

ModelDIM. A (length) in MAX
SLT30CH090-243.540 in

Performance Curve

SLT30CH090-24
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT30CH090 Series

Downloads

SLT30CH090-24 Configured Datasheet (PDF)
