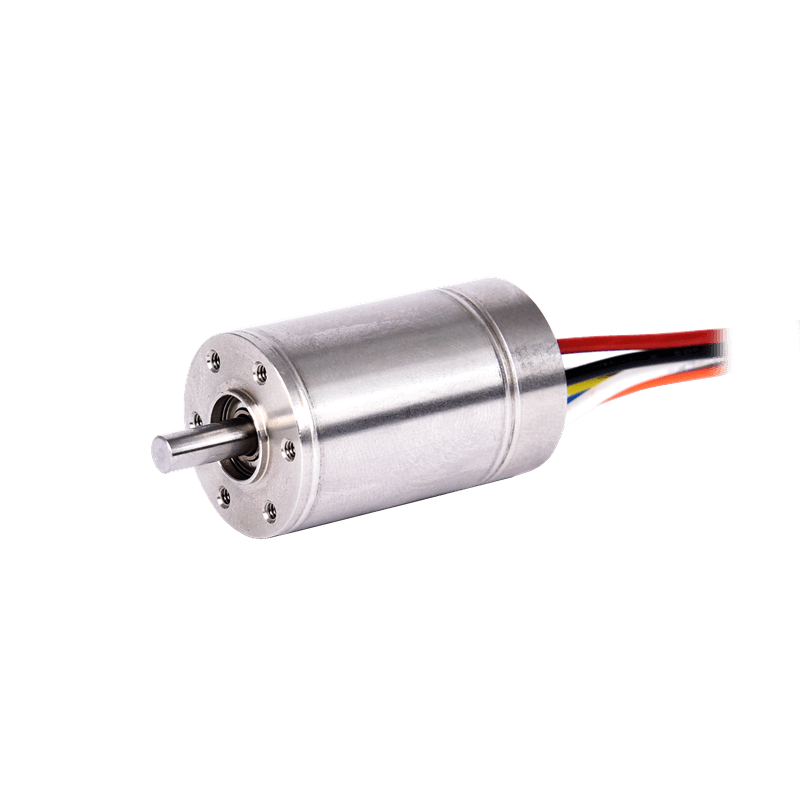

SLT22CH035 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLT22CH035-12 | 0.870 in | 1.380 in | 12 VDC | 9535 RPM | 1.9826 oz-in | 12360 RPM | 195 mA | NA | 0.161 lbs | 1.4 A | Quote |
| SLT22CH035-24 | 0.870 in | 1.380 in | 24 VDC | 10850 RPM | 1.9826 oz-in | 12900 RPM | 160 mA | NA | 0.161 lbs | 0.905 A | Quote |
| SLT22CH035-24-G111-MH22-1024 | 0.870 in | 2.670 in | 24 VDC | 96.4 RPM | 162.8537 oz-in | 116 RPM | 175 mA | 111:1 | 0.334 lbs | 0.75 A | Quote |
| SLT22CH035-24-G16-MH22-1024 | 0.870 in | 2.440 in | 24 VDC | 827.9 RPM | 26.623 oz-in | 827.9 RPM | 175 mA | 16:1 | 0.306 lbs | 0.75 A | Quote |
| SLT22CH035-24-G7-MH22-1024 | 0.870 in | 2.210 in | 24 VDC | 1624.25 RPM | 12.1786 oz-in | 1954.5 RPM | 175 mA | 7:1 | 0.281 lbs | 0.75 A | Quote |
| SLT22CH035-24-MH22-1024 | 0.870 in | 1.380 in | 24 VDC | 10850 RPM | 1.9826 oz-in | 12900 RPM | 160 mA | NA | 0.176 lbs | 0.905 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
