SLT22CH035 Series
SLT22CH035-24-G7-MH22-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLT22CH035-24-G7-MH22-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.75 A Rated Current
  • 12.1786 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.210 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder + Gearhead
Weight0.281 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 1954.5 RPM
No Load Current175 mA
Nominal Speed1606 RPM
Rated Speed1624.25 RPM
Rated Torque12.1786 oz-in
Rated Current0.75 A
Stall Torque130.283 oz-in
Stall Current8.28 A
Max. Efficiency71.3%

Motor Characteristics

Terminal Resistance2.9 ohm
Terminal Inductance0.17 mH
Speed/Torque Gradient 11.8954 RPM/oz-in
Speed Constant525 RPM/V

Motor Mechanical Data

Max. Radial Load13.488 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio7
Nominal Reduction Ratio7

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

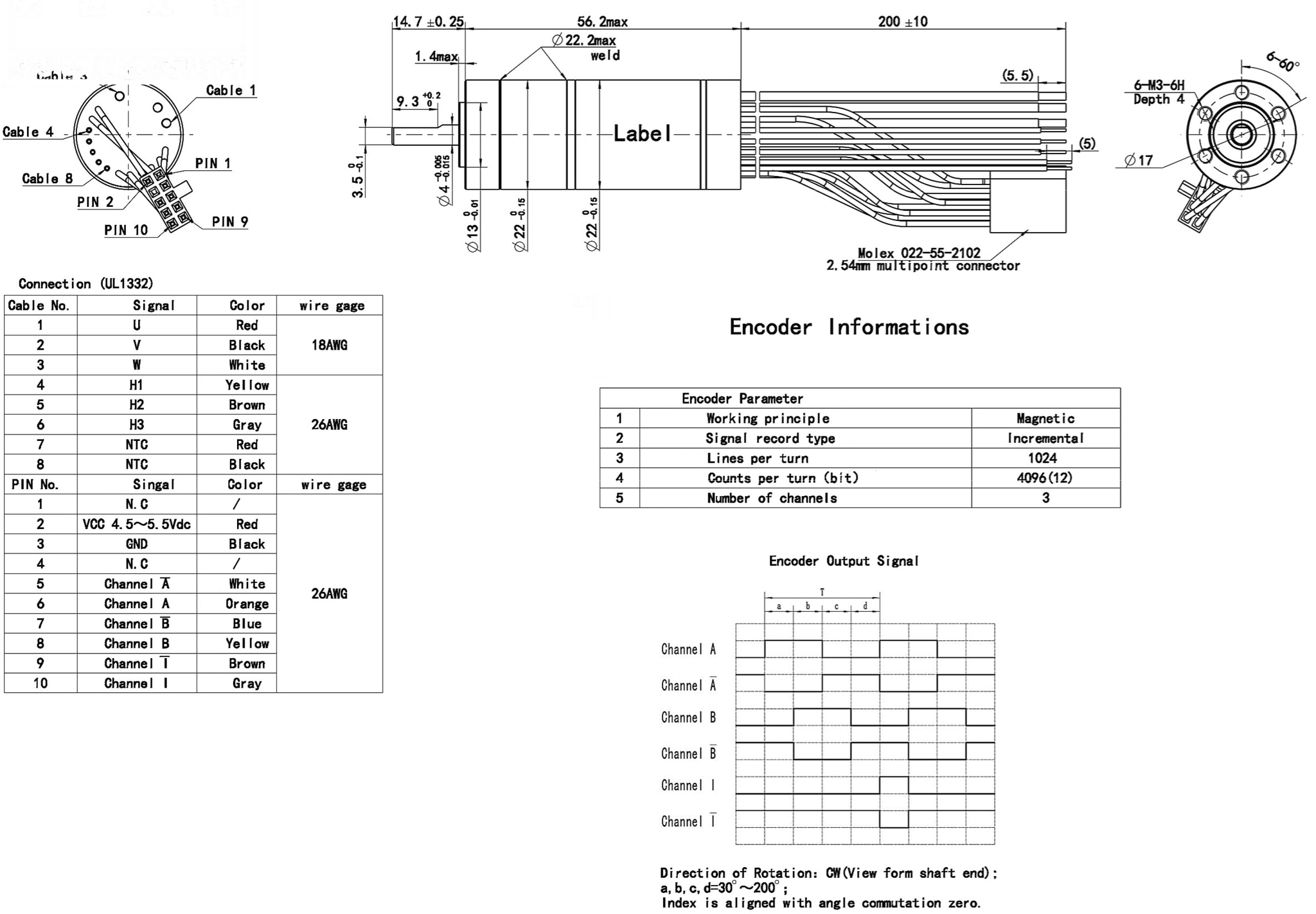

Dimensions

ModelDIM. A (length) in MAX
SLT22CH035-24-G7-MH22-10242.210 in

Performance Curve

SLT22CH035-24-G7-MH22-1024
@24 VDC, 7:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH035 Series

Downloads

SLT22CH035-24-G7-MH22-1024 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
