SLT22CH035 Series
SLT22CH035-24-G111-MH22-1024
Slotless BLDC Motor

Name: SLT22CH035-24-G111-MH22-1024
Brand: Lin Engineering
SKU: SLT22CH035-24-G111-MH22-1024
Price: 589 USD
Availability: PreOrder

Quick Facts

SLT22CH035-24-G111-MH22-1024 Slotless BLDC Motors

Specifications:

0.870 in Frame Size
0.75 A Rated Current
162.8537 oz-in Rated Torque
24 VDC Nominal Voltage
2.670 in Length

Specifications

Motor Specifications

Frame Size	0.870 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.334 lbs
Certification	RoHS

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	116 RPM
No Load Current	175 mA
Nominal Speed	101 RPM
Rated Speed	96.4 RPM
Rated Torque	162.8537 oz-in
Rated Current	0.75 A
Stall Torque	1754.5718 oz-in
Stall Current	8.28 A
Max. Efficiency	56.9%

Motor Characteristics

Terminal Resistance	2.9 ohm
Terminal Inductance	0.17 mH
Speed/Torque Gradient	11.8954 RPM/oz-in

Motor Mechanical Data

Max. Radial Load

13.488 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio	111
Nominal Reduction Ratio	111

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

Dimensions

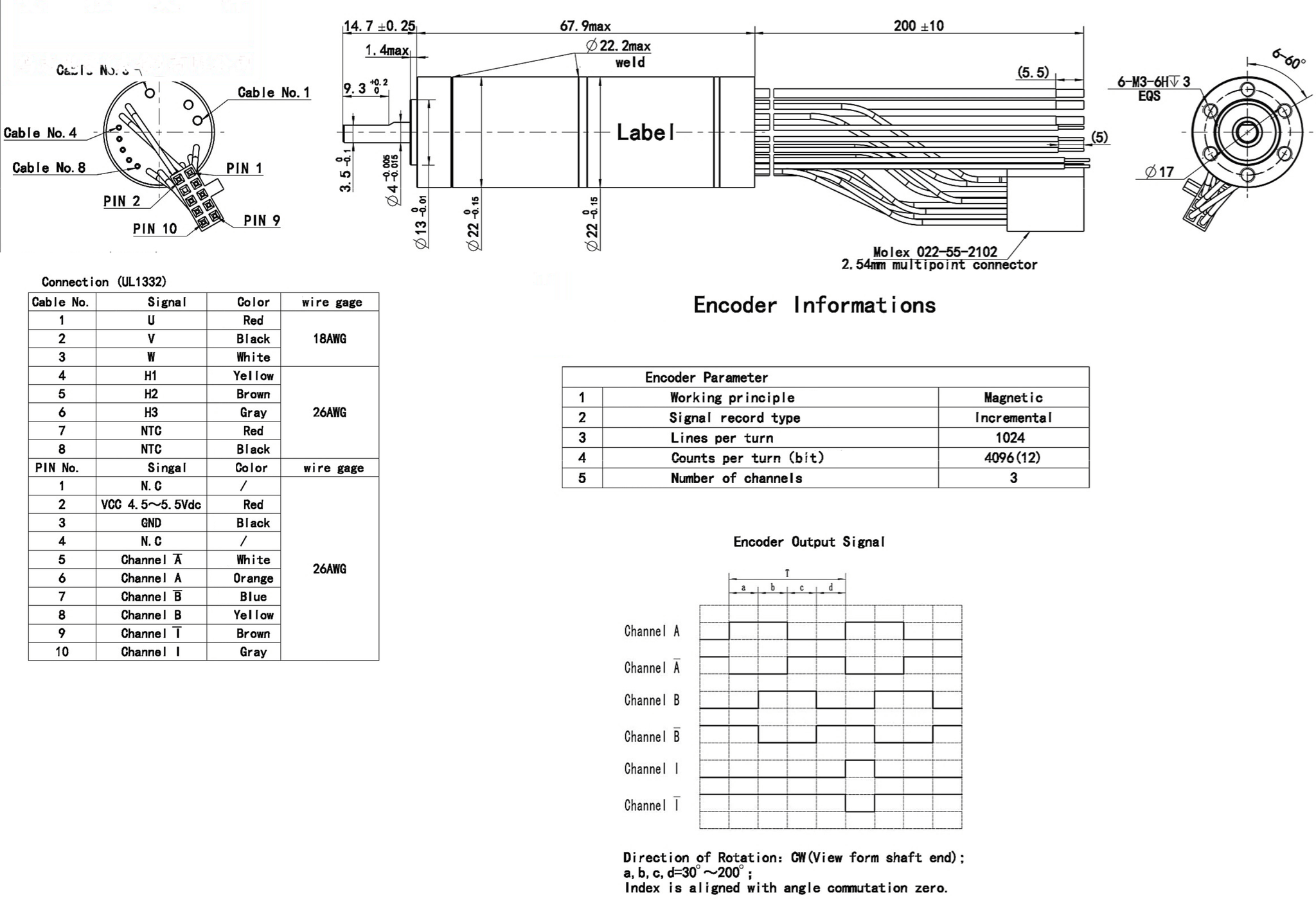

Model	DIM. A (length) in MAX
SLT22CH035-24-G111-MH22-1024	2.670 in

Performance Curve

SLT22CH035-24-G111-MH22-1024
^{@24 VDC, 111:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH035 Series

Downloads

SLT22CH035-24-G111-MH22-1024 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
