SLT22CH035 Series
SLT22CH035-24
Slotless BLDC Motor

Featured product media

Quick Facts

SLT22CH035-24 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.905 A Rated Current
  • 1.9826 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.380 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.161 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 12900 RPM
No Load Current160 mA
Nominal Speed11240 RPM
Rated Speed10850 RPM
Rated Torque1.9826 oz-in
Rated Current0.905 A
Stall Torque21.3268 oz-in
Stall Current8.28 A
Max. Efficiency80.4%

Motor Characteristics

Terminal Resistance2.9 ohm
Terminal Inductance0.17 mH
Speed/Torque Gradient 11.8954 RPM/oz-in
Speed Constant525 RPM/V
Mechanical Time Constant3.49 ms

Motor Mechanical Data

Max. Radial Load4.946 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor600 s
Thermal time constant winding6.74 s

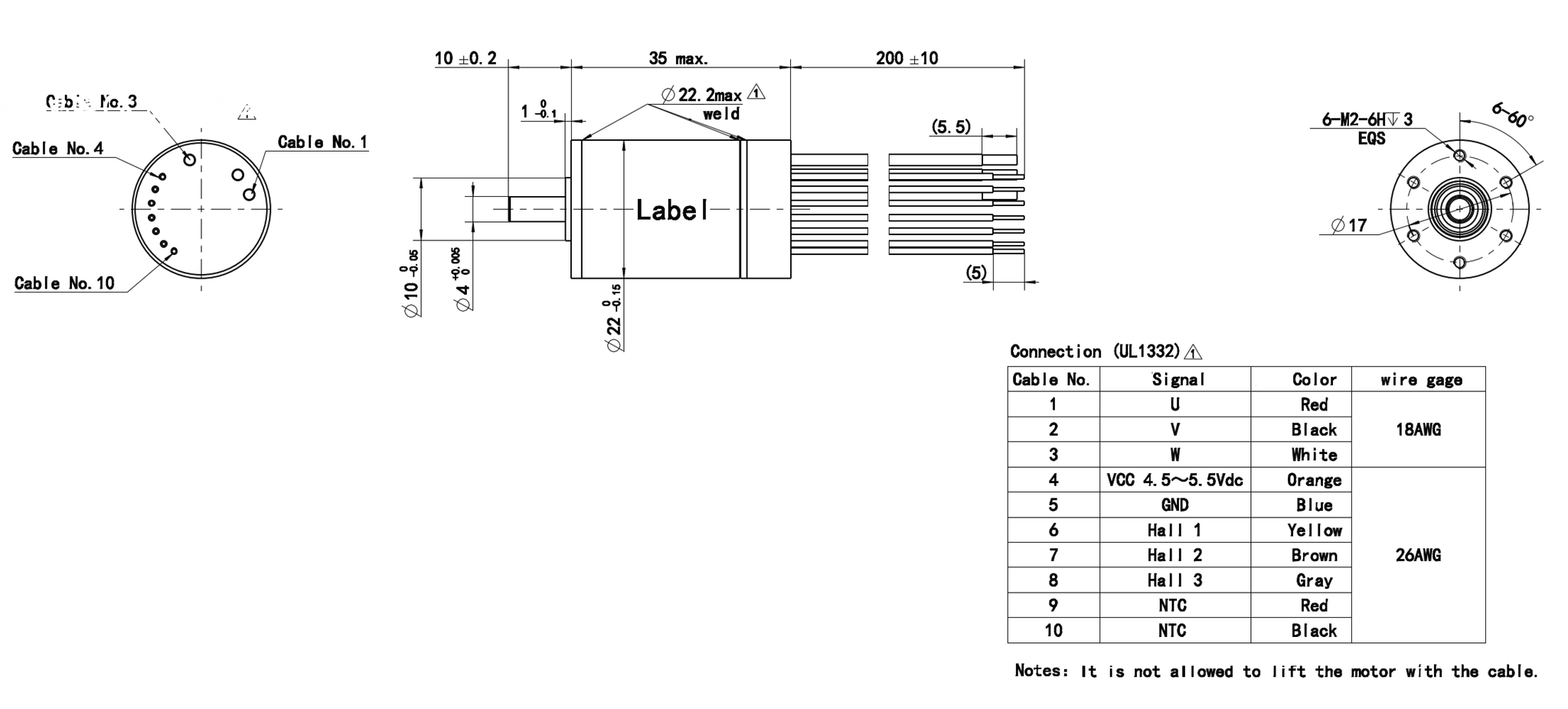

Dimensions

ModelDIM. A (length) in MAX
SLT22CH035-241.380 in

Performance Curve

SLT22CH035-24
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH035 Series

Downloads

SLT22CH035-24 Configured Datasheet (PDF)
