SLT22CH035 Series
SLT22CH035-24-MH22-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLT22CH035-24-MH22-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 0.905 A Rated Current
  • 1.9826 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 1.380 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder
Weight0.176 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 12900 RPM
No Load Current160 mA
Nominal Speed11240 RPM
Rated Speed10850 RPM
Rated Torque1.9826 oz-in
Rated Current0.905 A
Stall Torque21.3268 oz-in
Stall Current8.28 A
Max. Efficiency80.4%

Motor Characteristics

Terminal Resistance2.9 ohm
Terminal Inductance0.17 mH
Speed/Torque Gradient 11.8954 RPM/oz-in
Speed Constant525 RPM/V
Mechanical Time Constant3.49 ms

Motor Mechanical Data

Max. Radial Load4.946 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor600 s
Thermal time constant winding6.74 s

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Dimensions

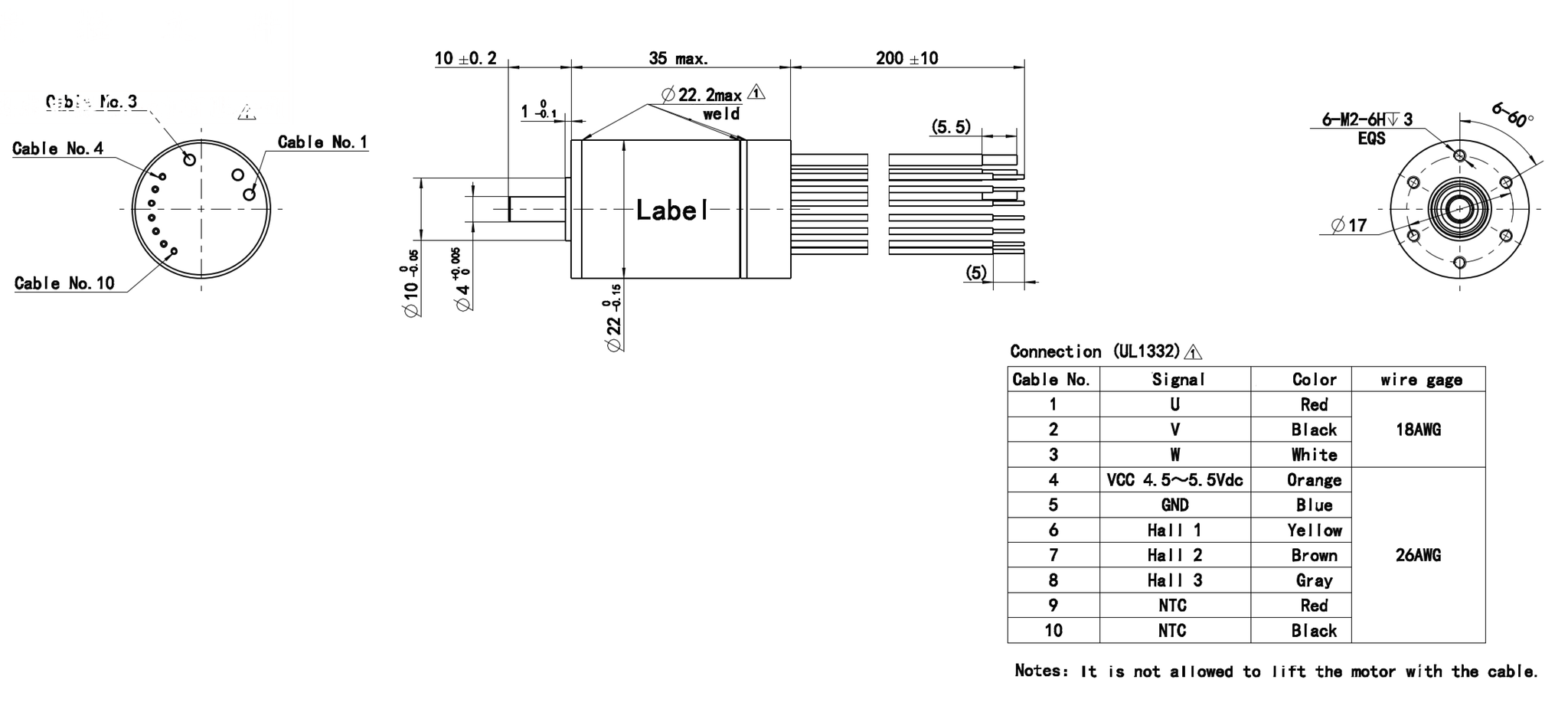

ModelDIM. A (length) in MAX
SLT22CH035-24-MH22-10241.380 in

Performance Curve

SLT22CH035-24-MH22-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLT22CH035 Series

Downloads

SLT22CH035-24-MH22-1024 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
