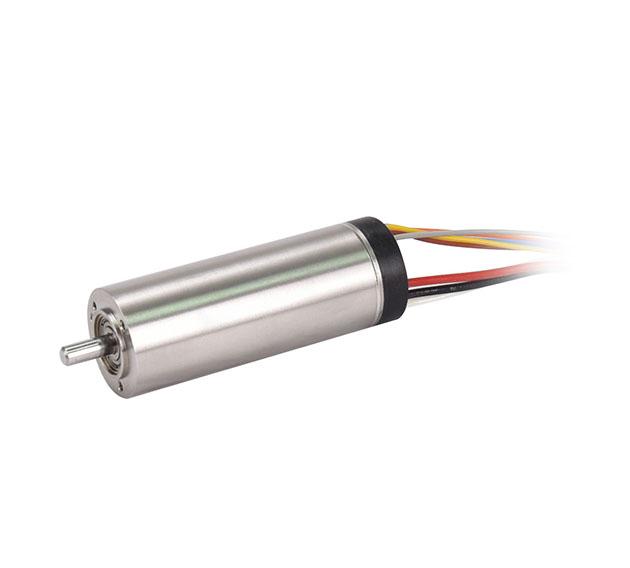

SLH22CH060 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLH22CH060-24 | 0.870 in | 2.360 in | 24 VDC | 34940 RPM | 3.6819 oz-in | 37000 RPM | 1050 mA | NA | 0.309 lbs | 4.35 A | Quote |
| SLH22CH060-24-MH22-1024 | 0.870 in | 2.360 in | 24 VDC | 39500 RPM | 3.6819 oz-in | 39500 RPM | 1050 mA | NA | 0.309 lbs | 4.35 A | Quote |
| SLH22CH060-36 | 0.870 in | 2.360 in | 36 VDC | 37600 RPM | 3.6819 oz-in | 41000 RPM | 1100 mA | NA | 0.309 lbs | 3.16 A | Quote |
| SLH22CH060-48 | 0.870 in | 2.360 in | 48 VDC | 39300 RPM | 3.2571 oz-in | 42000 RPM | 1100 mA | NA | 0.309 lbs | 2.3 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
