SLH22CH060 Series
SLH22CH060-36
Slotless BLDC Motor

Featured product media

Quick Facts

SLH22CH060-36 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 3.16 A Rated Current
  • 3.6819 oz-in Rated Torque
  • 36 VDC Nominal Voltage
  • 2.360 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.309 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage36 VDC
No Load Speed 41000 RPM
No Load Current1100 mA
Nominal Speed40740 RPM
Nominal Torque (Max Cont. Torque)3.6819 oz-in
Rated Speed37600 RPM
Rated Torque3.6819 oz-in
Rated Current3.16 A
Stall Torque176.3918 oz-in
Stall Current150 A
Max. Efficiency93%

Motor Characteristics

Terminal Resistance0.24 ohm
Terminal Inductance0.04 mH
Speed/Torque Gradient 5.8061 RPM/oz-in
Speed Constant1150 RPM/V
Mechanical Time Constant1.23 ms
Rotor Inertia0.019 oz-in²

Motor Mechanical Data

Max. Radial Load3.597 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor400 s
Thermal time constant winding1.56 s

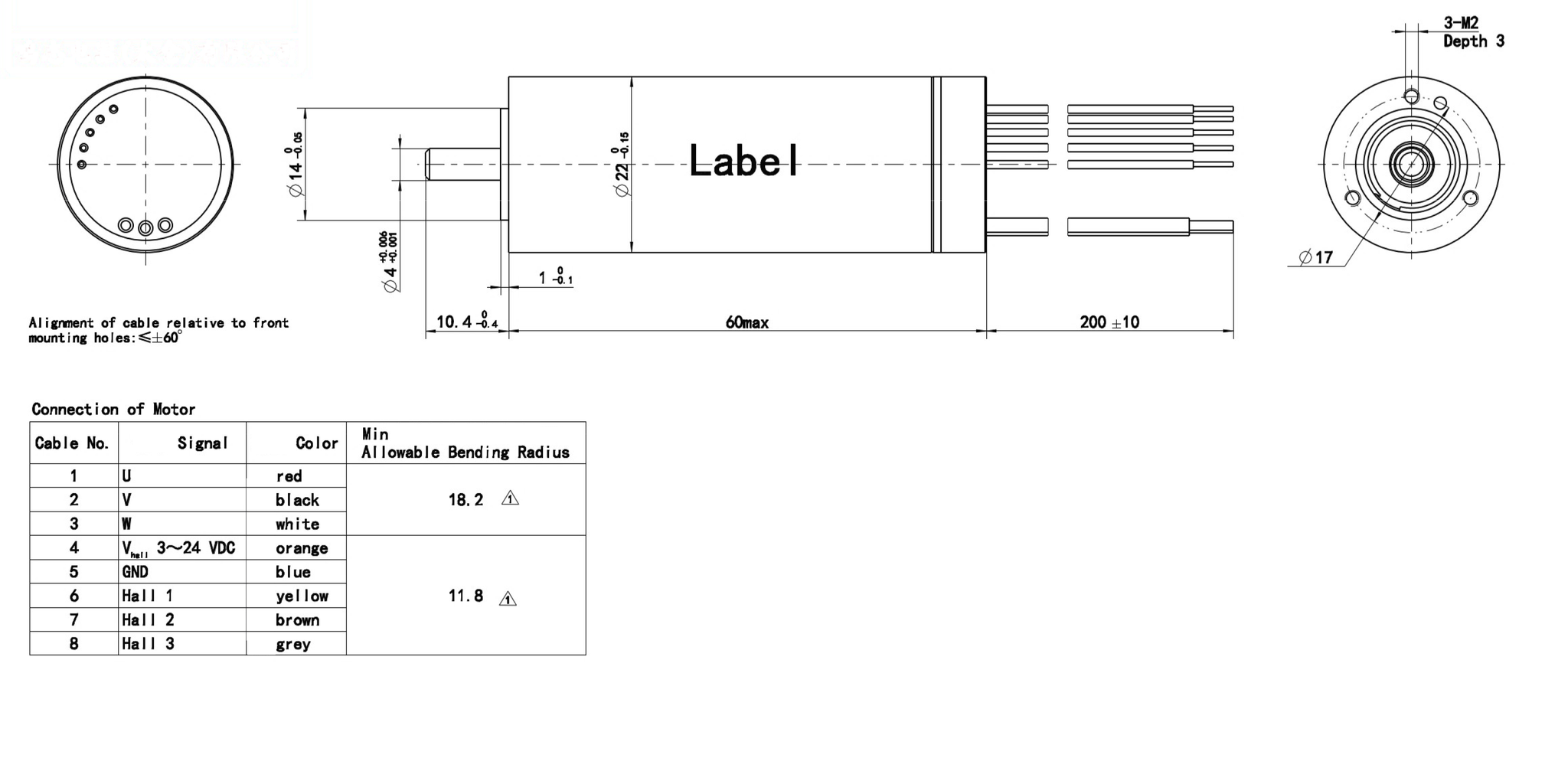

Dimensions

ModelDIM. A (length) in MAX
SLH22CH060-362.360 in

Performance Curve

SLH22CH060-36
@36 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH22CH060 Series

Downloads

SLH22CH060-36 Configured Datasheet (PDF)
