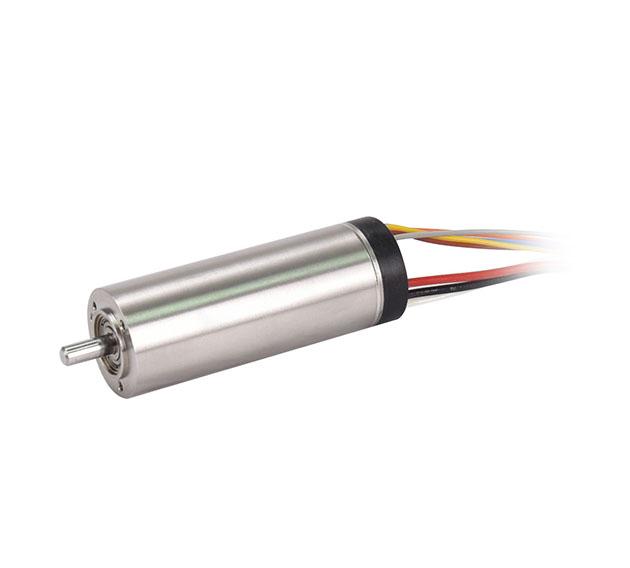

SLH22CH060 Series
SLH22CH060-24-MH22-1024
Slotless BLDC Motor

Featured product media

Quick Facts

SLH22CH060-24-MH22-1024 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 4.35 A Rated Current
  • 3.6819 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.360 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor + Encoder
Weight0.309 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 39500 RPM
No Load Current1050 mA
Nominal Speed38020 RPM
Rated Speed39500 RPM
Rated Torque3.6819 oz-in
Rated Current4.35 A
Stall Torque144.8265 oz-in
Stall Current180.45 A
Max. Efficiency93%

Motor Characteristics

Terminal Resistance0.133 ohm
Terminal Inductance0.015 mH
Speed/Torque Gradient 5.5993 RPM/oz-in
Speed Constant1685 RPM/V
Mechanical Time Constant1.46 ms
Rotor Inertia0.019 oz-in²

Motor Mechanical Data

Max. Radial Load3.597 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor545 s
Thermal time constant winding1.56 s

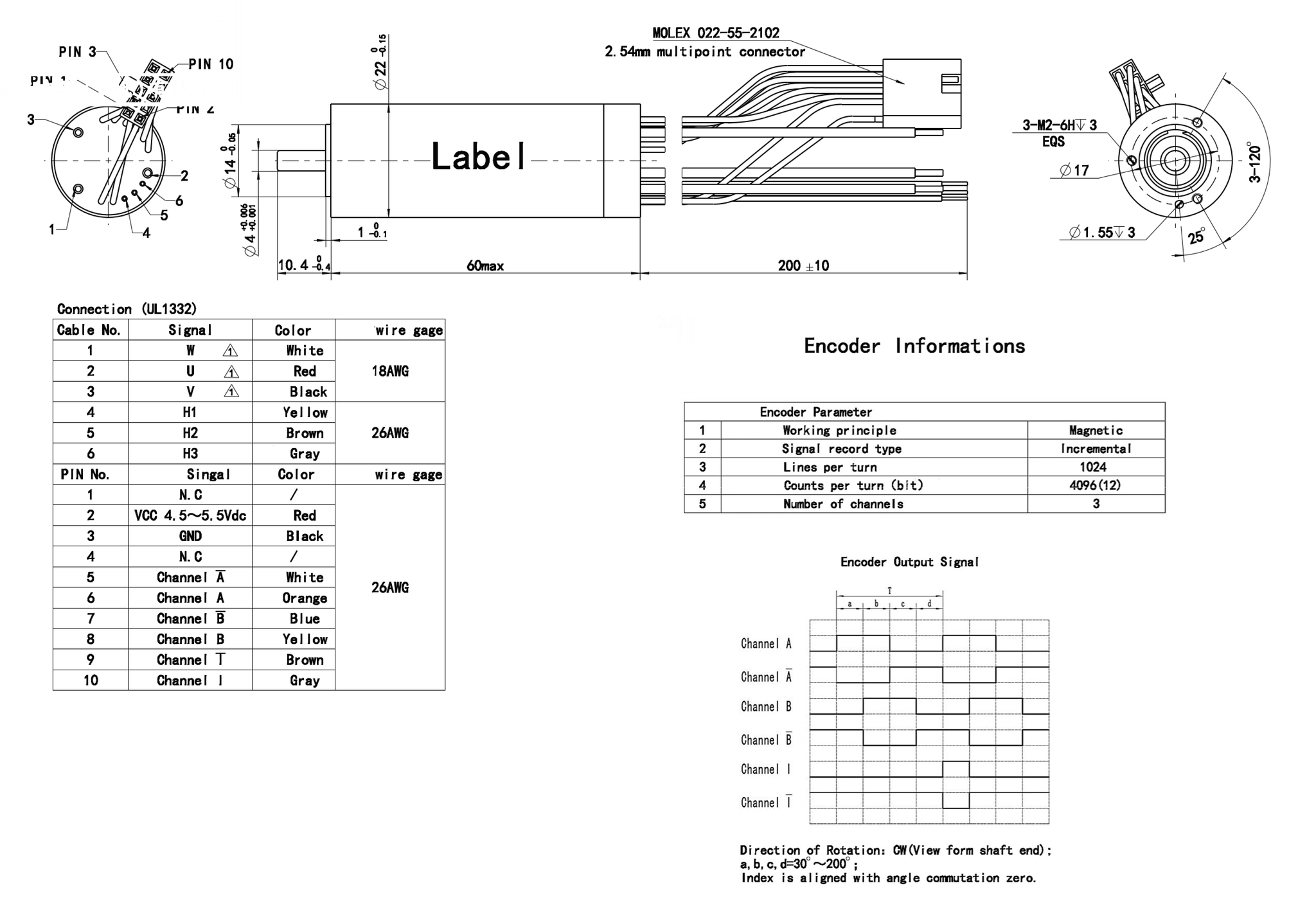

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

Performance Curve

SLH22CH060-24-MH22-1024
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH22CH060 Series

Downloads

SLH22CH060-24-MH22-1024 Configured Datasheet (PDF)
