SLH22CH060 Series
SLH22CH060-24

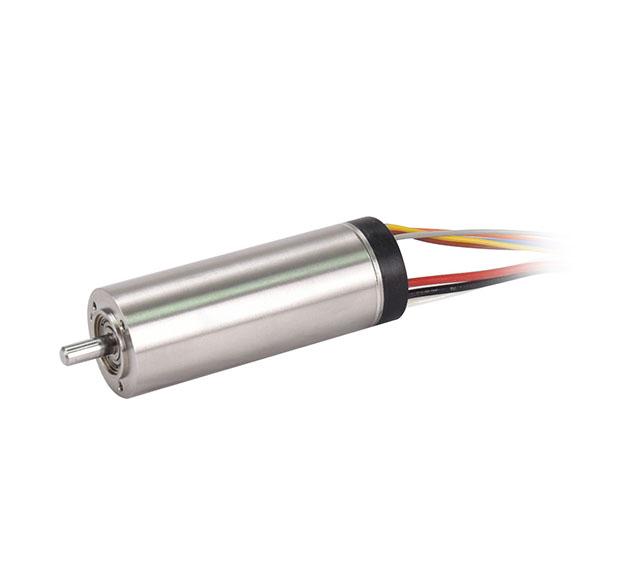

Slotless BLDC Motor

Featured product media

Quick Facts

SLH22CH060-24 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 4.35 A Rated Current
  • 3.6819 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.360 in Length

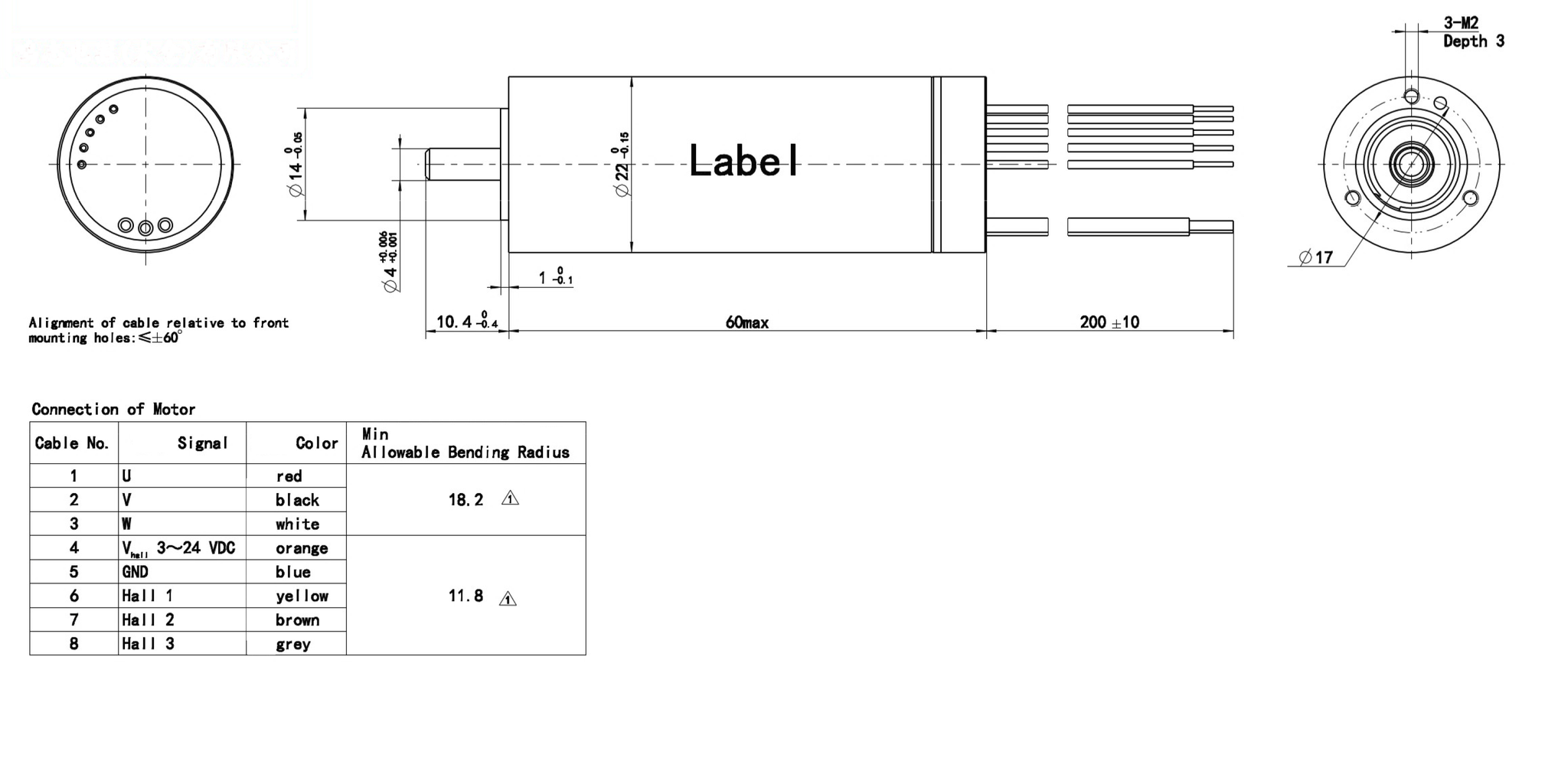

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.309 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 37000 RPM
No Load Current1050 mA
Nominal Speed38020 RPM
Rated Speed34940 RPM
Rated Torque3.6819 oz-in
Rated Current4.35 A
Stall Torque144.8265 oz-in
Stall Current180.45 A
Max. Efficiency93%

Motor Characteristics

Terminal Resistance0.133 ohm
Terminal Inductance0.019 mH
Speed/Torque Gradient 6.5141 RPM/oz-in
Speed Constant1685 RPM/V
Mechanical Time Constant1.34 ms
Rotor Inertia0.019 oz-in²

Motor Mechanical Data

Max. Radial Load3.597 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor400 s
Thermal time constant winding1.56 s

Performance Curve

SLH22CH060-24
@24 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH22CH060 Series

Downloads

SLH22CH060-24 Configured Datasheet (PDF)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
