SLH22CH060 Series
SLH22CH060-48
Slotless BLDC Motor

Featured product media

Quick Facts

SLH22CH060-48 Slotless BLDC Motors

Specifications:
  • 0.870 in Frame Size
  • 2.3 A Rated Current
  • 3.2571 oz-in Rated Torque
  • 48 VDC Nominal Voltage
  • 2.360 in Length

Specifications

Motor Specifications

Frame Size0.870 in
Motor TypeMotor Only
Weight0.309 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage48 VDC
No Load Speed 42000 RPM
No Load Current1100 mA
Nominal Speed41350 RPM
Nominal Torque (Max Cont. Torque)3.2571 oz-in
Rated Speed39300 RPM
Rated Torque3.2571 oz-in
Rated Current2.3 A
Stall Torque184.8602 oz-in
Stall Current120.3 A
Max. Efficiency93%

Motor Characteristics

Terminal Resistance0.33 ohm
Terminal Inductance0.069 mH
Speed/Torque Gradient 6.5141 RPM/oz-in
Speed Constant880 RPM/V
Mechanical Time Constant1.2 ms
Rotor Inertia0.019 oz-in²

Motor Mechanical Data

Max. Radial Load3.597 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Thermal time constant motor400 s
Thermal time constant winding1.56 s

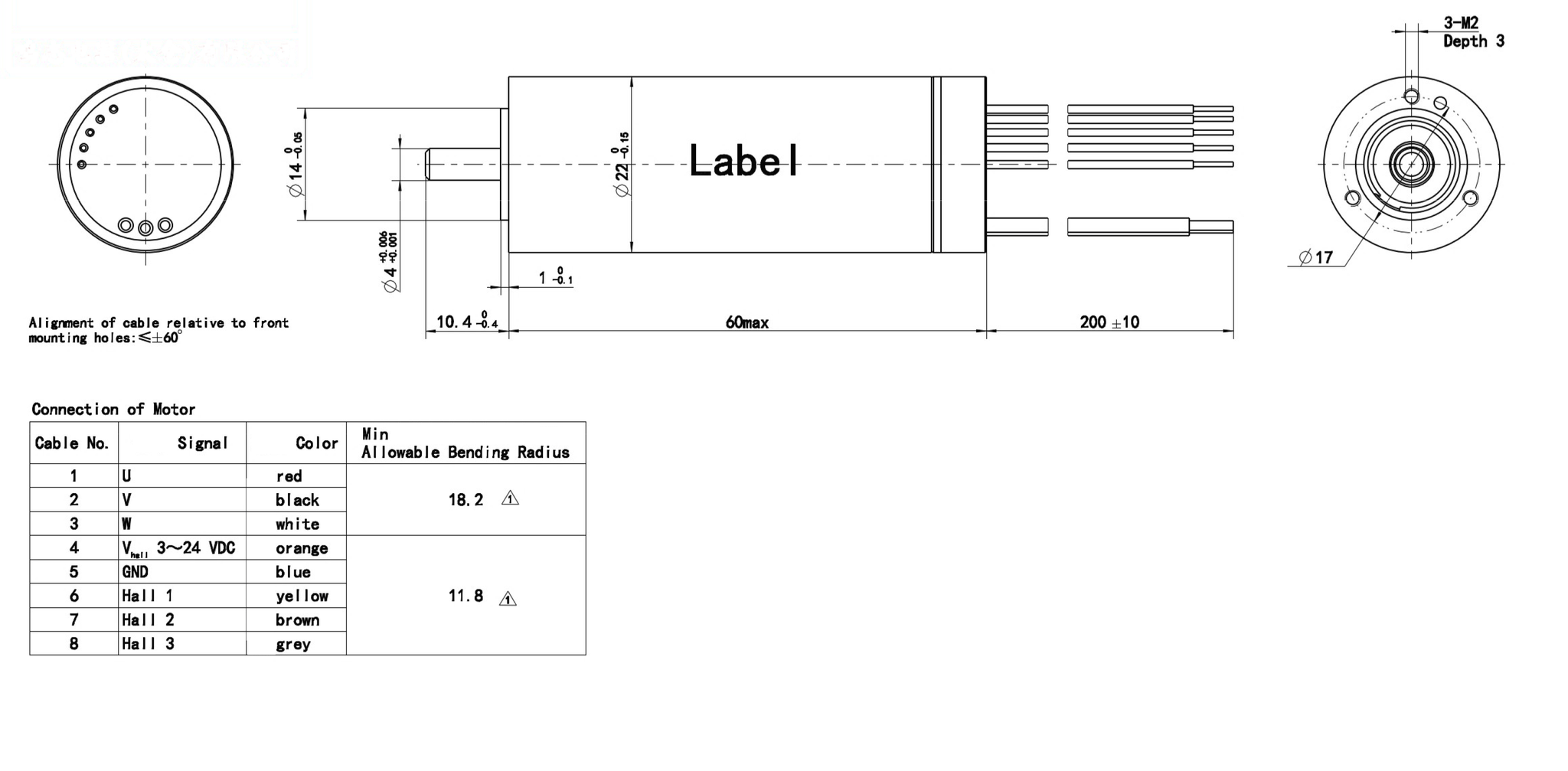

Dimensions

ModelDIM. A (length) in MAX
SLH22CH060-482.360 in

Performance Curve

SLH22CH060-48
@48 VDC

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLH22CH060 Series

Downloads

SLH22CH060-48 Configured Datasheet (PDF)
SLH22CH060-48 (3D model) (STEP)

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
