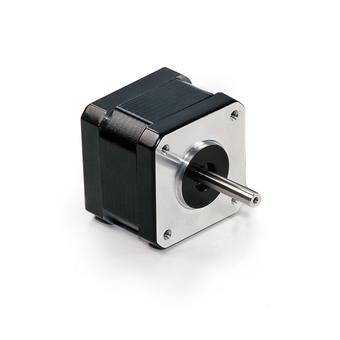

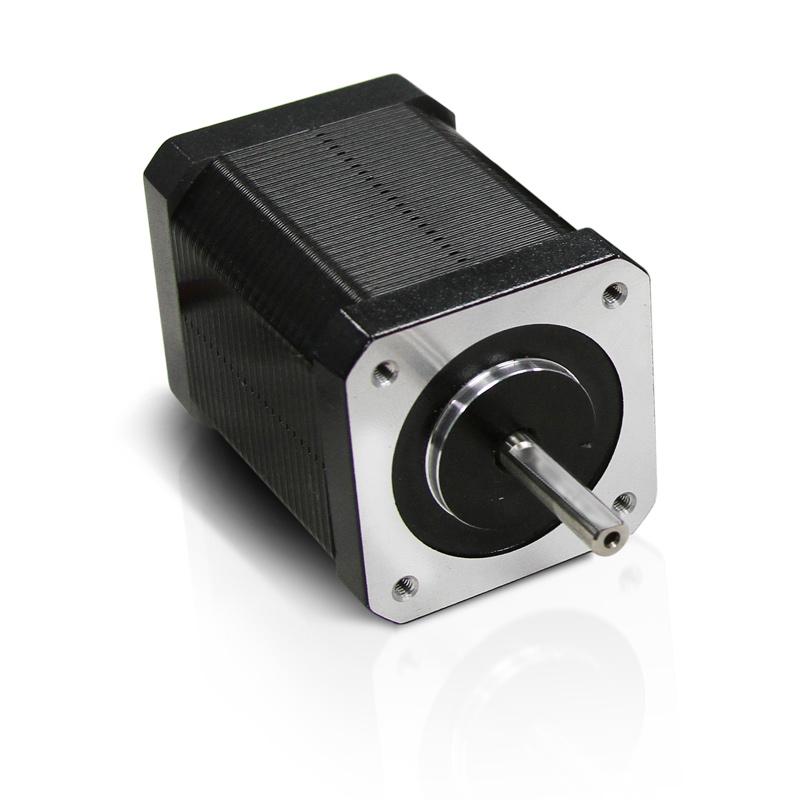

4118 Series - Rapid Prototyping Motors
4118L-07S
Hybrid Stepper Motor

Unit Price:

$56.50

Inventory:

10 Available in 4 Business Days

Ships:

4 Business Days

Part Number:

WO-4118L-07S

Looking For Higher Volume?

Dimensions

ModelDIM. A (length) in
4118L-07S1.890 in

Torque Curves

Speed

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Base Motor Part Number4118L-07S
Configured Motor Part NumberWO-4118L-07S
Step Angle1.8°
Frame Size1.670 in
NEMA SizeNEMA 17
Body Length 1.890 in
Current (AMP)1.05 AMP
Holding Torque 83.55 oz-in
Resistance5.2 ohm
Rotor Inertia0.37 oz-in²
Number of leads4
ConnectionSerial
Weight0.701 lbs

Operating Specifications

Radial Play0.001 in @ 1 lbs
End Play0.003 in @ 3 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face6 lbs
Dimension "K"0.620 in
Max Axial Load6 lbs
Maximum Case Temperature176.00 °F maximum
Ambient Temperature-4 ° to 122.00 °F
Storage Temperature-4 ° to 212.00 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min

Gearbox Options

DESCRIPTIONSPECIFICATION
MAX EFFICIENCY (%)90%
OPERATIONAL TEMPERATURE-20 TO 50 deg C
TORQUE RATING (CONTINUOUS) Tc141 oz-in (1N-m)
GEARHEAD INERTIA (oz-in^2)4.542 oz-in^2
MAX BACKLASH (arcmin)+/- 25 arcminutes
GEARHEAD WEIGHT (LBS)0.22 lbs
MAX RADIAL LOAD RATING AT K DISTANCE20 lbs
K DISTANCE AWAY FROM MOUNTING FACE0.2 inches
MAX AXIAL LOAD50 lbs
Content image

Click Here For More Information

Encoder Options

E5S - Single-Ended Optical Encoder

Content image

View E5S Specifications



E5D - Differential Optical Encoder

Content image

View E5D Specifications

Connector Options

Molex Micro Fit

Content image

Molex Nano Fit

Content image

TE Micro Fit

Content image

Features

Unbeatable Value



The 4118 Series stepper motor is our best-selling stepper motor for numerous reasons: it delivers unbeatable balance between high performance and low price; it offers a high range of customizations; and its wide performance range makes it ideal for many applications.

Versatile performance



The 4118 Series stepper motor is a good fit for wide range of applications. The series is available in many stator lengths, from 1.34” (34mm) to 2.34” (59.4mm). Holding torque ranges from 44 oz-in (0.3 Nm), up to 115 oz-in (0.88 Nm). High range of dynamic torque with speed up to 1200 RPM. And a large selection of windings to meet your specific requirements.

Lin Engineering Quality



Every component and every motor that leaves our facility must meet our mean value control. Additionally, every motor is tested to meet the required electrical specifications (resistance, inductance, leakage), torque specifications (holding and detent torque), mechanical specification (front shaft extension dimension and overall body length), and any other special feature specification. We want to ensure that your motor delivers the precise specifications you require. This gives you confidence that your motors will perform consistently and reliably within your application.

Content image

Specialty Motors

Vacuum Rated Motors
Card image

Vacuum rated motors, for example, are perfect for environments where out-gassing needs to be minimized, which includes vacuum chambers, space applications, and clean room environments.

IP Rated Motors
Card image

IP (Ingress Protection) rated motors are perfect for applications exposed to humidity, water, oil, and other various debris.

High / Low temperature Operation motors
Card image

These motors are designed to operate in higher and lower temperature ranges than what conventional motors are capable of.

Application Examples

Why Lin?

Card image

OEM Motors Optimized For Your Application

Card image

Quick Prototype Turnaround

Card image

Small Batch to Large Volume Production

Card image

US Based Support and Manufacturing

Motor Customizations

Lin Engineering can ensure that your hybrid stepper motor is optimized to deliver the required performance for your specific application, whether it’s increasing torque at a specific speed range, reducing noise or vibration, or optimizing for minimal power consumption, or making specific modification  to ensure proper and native fit within your assembly.

Content image

Customization Services Include:

  • Optimized Winding
  • Multiple Shaft Options
  • Customized Leads & Connectors
  • Customized Housings & Mountings
  • Bearings & Lubricants
  • Mechatronic Solutions
  • Environmental Protection
  • Drivers & Controllers, Encoders, Gearboxes & Accessories



Learn More About Motor Customizations & Optimizations

The result is that you’ll get a motor that is fully optimized for your specific applications and configured to seamlessly fit with your assembly. This reduces your product's complexity, and increases the speed and ease of the assembly of your final product.



Speak with one of our sales representatives about your specific application needs by filling out a request for a quote.
