Shielded Encoder Cable for E5S SERIES
4634140205294
Encoder Cable

Featured product media

Quick Facts

4634140205294 Series Accessories

Features and Benefits:
  • Shielded
  • Fits E5S (Single Ended) Encoder
  • 12in Length, 5 Pins

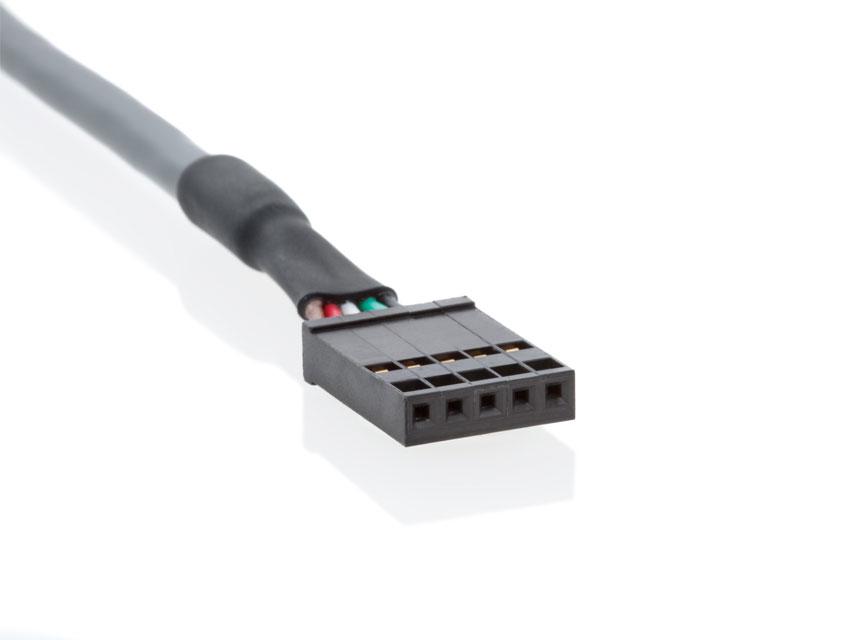

A 5-pin female locking connector on one end of a 5-conductor round shielded 24 AWG cable.



PIN-OUT

PINDESCRIPTIONCOLOR
1GroundBlack
(drain connected on one end)
2IndexGreen
3A ChannelWhite
4+5VDC powerRed
5B ChannelBrown

Downloads

4634140205294 Configured Datasheet (PDF)
