Shielded Encoder Cable for E5D SERIES090-00274Encoder Cable
Features and Benefits:
- Shielded
- Fits E5D (Differential) Encoder
- 12in Length
- 10 Pins
Unit Price:
$15.72
Inventory:
10 Available in 10 Business Days
Ships:
10 Business Days
Part Number:
090-00274
Looking For Higher Volume?

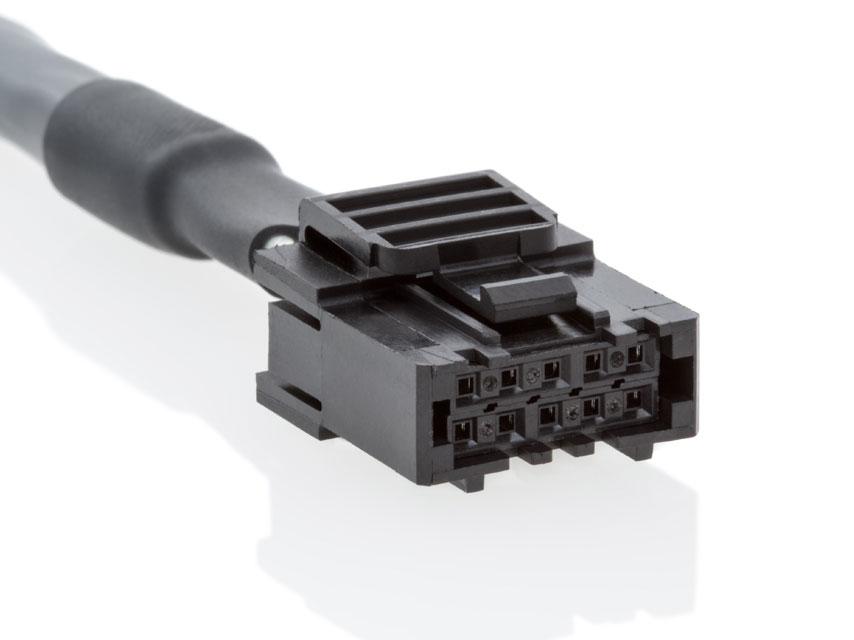

A 10-pin female latching connector on one end of an 8-conductor round shielded twisted pair 24 AWG cable.
PIN-OUT
![Content image](/_next/image?url=/images/loading-placeholder.png&w=2048&q=100)
PIN | DESCRIPTION | COLOR |
---|---|---|
1 | - | - |
2 | Ground | Green / White Stripe |
3 | I- channel | White / Orange Stripe |
4 | I+ channel | Orange / White Stripe |
5 | A- channel | White / Blue Stripe |
6 | A+ channel | Blue / White Stripe |
7 | Power | White / Green Stripe |
8 | - | - |
9 | B- channel | White / Brown Stripe |
10 | B+ channel | Brown / White Stripe |
Downloads
090-00274 Configured Datasheet (PDF)
