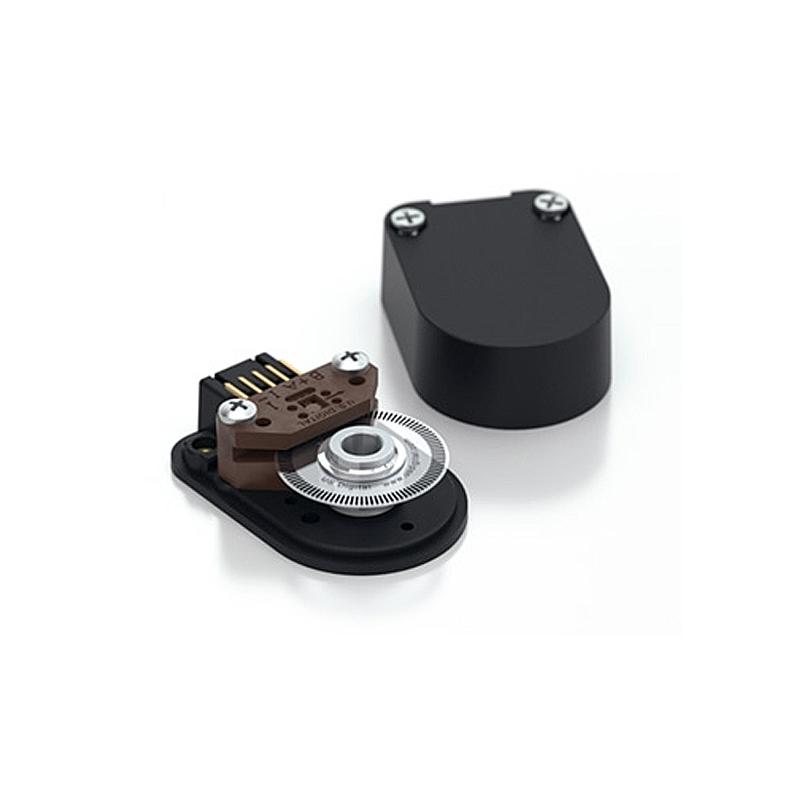

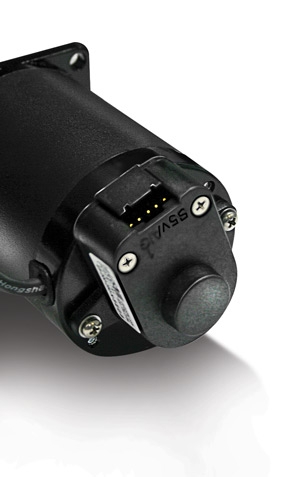

E5 SERIESE5Optical Encoder
Features and Benefits:
- Best for NEMA 17, 23 & 34
- Single ended or differential output options
- 32 to 5,000 cycles per Revolution (CPR)
- 128 to 20,000 pulses per revolution (PPR)
- Positive finger-latching polarized connector
- Tracks from 0 to 720,000 cycles/sec (Dependent on CPR)
- Optional index (3rd channel)
- -40 to 100ºC operating temperature (Operating temperature dependent on CPR)
- 2 year warranty
Pin Outs
CYCLES PER SECOND |
0 to 720,000 CPR Dependent |
CYCLES PER REVOLUTION (CPR) |
32 to 5,000 |
PULSES PER REVOLUTION (PPR) |
128 to 20,000 |
CYCLES PER REVOLUTION (CPR)
32 | 400 | 2048 |
50 | 500 | 2500 |
96 | 512 | 4000 |
100 | 540 | 4096 |
192 | 720 | 5000 |
200 | 900 | |
250 | 1000 | |
256 | 1024 | |
360 | 1250 | |
400 | 2000 |
10-PIN DIFFERENTIAL
STANDARD
PIN | DESCRIPTION |
---|---|
1 | Ground |
2 | Ground |
3 | Index - |
4 | Index+ |
5 | A- Channel |
6 | A+ Channel |
7 | +5VDC power |
8 | +5VDC power |
9 | B- Channel |
10 | B+ Channel |
10-PIN DIFFERENTIAL
(L-OPTION)
PIN | DESCRIPTION |
---|---|
1 | No connection |
2 | +5VDC power |
3 | Ground |
4 | No connection |
5 | A- Channel |
6 | A+ Channel |
7 | B- Channel |
8 | B+ Channel |
9 | Index - |
10 | Index + |
Dimension
E5S - Single-Ended Optical Encoder
![Content image](https://lin-staging.space/_next/image?url=https://lin-cms-images-dev.s3.us-west-2.amazonaws.com/E5_S_5c0dbceaad.png&w=2048&q=100)
E5D - Differential Optical Encoder
![Content image](https://lin-staging.space/_next/image?url=https://lin-cms-images-dev.s3.us-west-2.amazonaws.com/E5_D_44f29e1e0d.png&w=2048&q=100)
Accessories
ACCESSORIES
![Content image](/_next/image?url=https://lin-cms-images.s3.us-west-2.amazonaws.com/8bc71e2d3655494da09c8cff6947ccb1.jpg&w=2048&q=100)
4-PIN CONNECTOR
Lin part # 090-00223
![Content image](/_next/image?url=https://lin-cms-images.s3.us-west-2.amazonaws.com/db1ef91ad0cd492cb4c681b8d04831ec.jpg&w=2048&q=100)
10-PIN CONNECTOR
Lin part # 090-00226
Use with E5 with the D output option
(E5 with D Option)
RECOMMENDED
Best for size 17, 23, and size 34
![Content image](/_next/image?url=https://lin-cms-images-dev.s3.amazonaws.com/f48e60945bc8496e95db5dfb2d320742.jpg&w=2048&q=100)
Downloads
E5 Configured Datasheet (PDF)
