IP65 and IPX7 Rated Stepper Motors

Every new application creates its own restrictions and challenges, so when you discover that your motion system will have to operate in extreme environmental conditions such as rain, dust or even under water, what do you do? Luckily, we continue to research, develop, and unveil cutting-edge technologies to facilitate wider and wider ranges of applications. While our standard lines of stepper motors are well-known for their durability, our IP 65 and IP X7 lines can also withstand harsh environments where typical motors will fail.

IP65 Rated Series—Features and Benefits

The IP65 Rated Series provides dust proof operation, and can withstand low-pressure jets of water sprayed from all directions from a distance as close as three meters for extended periods of time. The water jets can be delivered at pressures of up to 30kPa, at a rate of 12.5 l/mi, and for duration of up to three minutes.

Dust proof

Water resistant

Multiple stack lengths

Motors available with the IP65 rating modification:

4118 Series
NEMA 171.8° Step AngleIP65 Rated MotorUp to 124.6 oz-in (0.88 N-m) Holding Torque
5718 Series
NEMA 231.8° Step AngleIP65 Rated MotorUp to 294.5 oz-in (2.08 N-m) Holding Torque
8718 Series
NEMA 341.8° Step AngleUp to 1,288.6 oz-in (9.1 N-m) Holding Torque

IPX7 Rated Series—Features and Benefits

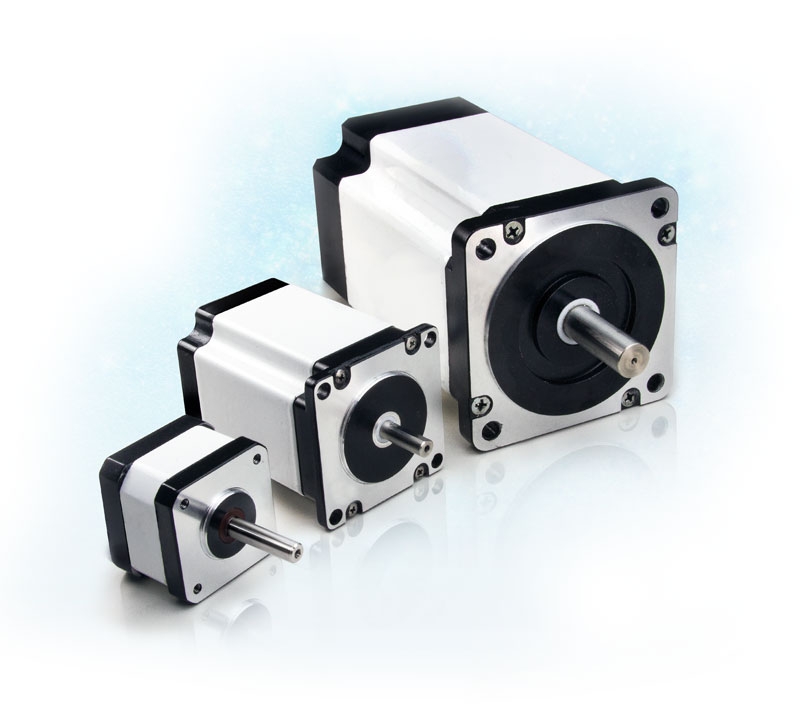

The IPX7 Rated Series of motors are completely protected against dust and withstand immersion into liquids at depths of 15cm to 1m for up to 30 minutes. Stepper motors are now available with IPX7 Rating in three sizes—NEMA 17, 23, and 34—the motors are capable of producing holding torque up to 1,288 oz-in. Plus, unipolar and bipolar windings are available to allow for the torque and speed required to accommodate your specific application.

Dust proof

Immersion resistant

Multiple stack lengths

Motors available with the IPX7 rating modification:

4118 Series
NEMA 171.8° Step AngleIP65 Rated MotorUp to 124.6 oz-in (0.88 N-m) Holding Torque
5718 Series
NEMA 231.8° Step AngleIP65 Rated MotorUp to 294.5 oz-in (2.08 N-m) Holding Torque
8718 Series
NEMA 341.8° Step AngleUp to 1,288.6 oz-in (9.1 N-m) Holding Torque

IP Motor applications

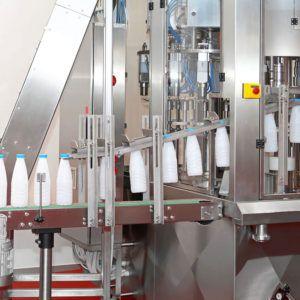

Food

Commonly used in food production and packaging applications. IP65 and IPX7 are suitable for washdown procedures.

Aerospace

IP65 and IPX7 stepper motors are routinely used in Aerospace applications where motors are exposed to extreme environments. For instance: wing control surfaces, landing gears, and other externally mounted applications. We are an AS9100C registered manufacturer.

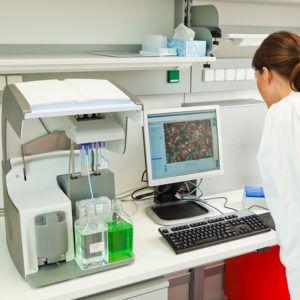

Medical

Medical and Laboratory equipment such as liquid handlers or devices exposed to moisture or particles.

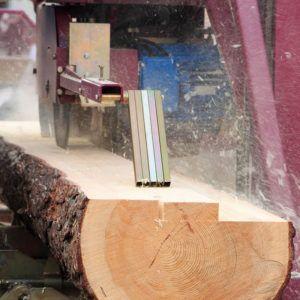

Harsh Environments

Any application where dust, liquids, or corrosion is of concern.
