4118 Series - Rapid Prototyping Motors
4118L-07P
Hybrid Stepper Motor

Unit Price:

$81.61

Inventory:

10 Available in 4 Business Days

Ships:

4 Business Days

Part Number:

WO-4118L-07P

Looking For Higher Volume?

Dimensions

ModelDIM. A (length) in
4118L-07P1.890 in

Torque Curves

Speed

Find the motor that fits your Target Torque (oz-in) and Target Speed (RPM)

Motor Specifications

Base Motor Part Number4118L-07P
Configured Motor Part NumberWO-4118L-07P
Step Angle1.8°
Frame Size1.670 in
NEMA SizeNEMA 17
Body Length 1.890 in
Current (AMP)2.1 AMP
Holding Torque 83.55 oz-in
Resistance1.3 ohm
Rotor Inertia0.37 oz-in²
Number of leads4
ConnectionParallel
Weight0.701 lbs

Operating Specifications

Radial Play0.001 in @ 1 lbs
End Play0.003 in @ 3 lbs
Shaft Run Out0.002 TIR
Concentricity of Mounting Pilot to Shaft0.003 TIR
Perpendicularity of Mounting Pilot to Face0.003 TIR
Max Radial Load at Dimension "K" from mounting face6 lbs
Dimension "K"0.620 in
Max Axial Load6 lbs
Maximum Case Temperature176.00 °F maximum
Ambient Temperature-4 °F to 122.00 °F
Storage Temperature-4 °F to 212.00 °F
Humidity Range (%) 85% or less, non-condensing
Magnet Wire InsulationClass B 130 deg C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min

Encoder Options

4118 Series Stepper Motors are available with the following encoders. Visit encoder product page to view specifications.

E5 Encoders
Card image

OPTICAL ENCODER

KCD - BiSS C Interface
Card image

MAGNETIC ENCODER

KCD - SSI Interface
Card image

MAGNETIC ENCODER

Encoder Cables:

Cable for E5S (Single Ended) Encoder
Card image

5-PIN LATCHING CONNECTOR / UNTERMINATED, SHIELDED CABLE

Cable for E5D (Differential) Encoder
Card image

10-PIN LATCHING CONNECTOR / UNTERMINATED, SHIELDED CABLE

Cable for KCD Encoders
Card image

M12 8 PIN - A Female - 2M PUR Cable

Features

Unbeatable Value



The 4118 Series stepper motor is our best-selling stepper motor for numerous reasons: it delivers unbeatable balance between high performance and low price; it offers a high range of customizations; and its wide performance range makes it ideal for many applications.

Versatile performance



The 4118 Series stepper motor is a good fit for wide range of applications. The series is available in many stator lengths, from 1.34” (34mm) to 2.34” (59.4mm). Holding torque ranges from 44 oz-in (0.3 Nm), up to 115 oz-in (0.88 Nm). High range of dynamic torque with speed up to 1200 RPM. And a large selection of windings to meet your specific requirements.

Lin Engineering Quality



Every component and every motor that leaves our facility must meet our mean value control. Additionally, every motor is tested to meet the required electrical specifications (resistance, inductance, leakage), torque specifications (holding and detent torque), mechanical specification (front shaft extension dimension and overall body length), and any other special feature specification. We want to ensure that your motor delivers the precise specifications you require. This gives you confidence that your motors will perform consistently and reliably within your application.

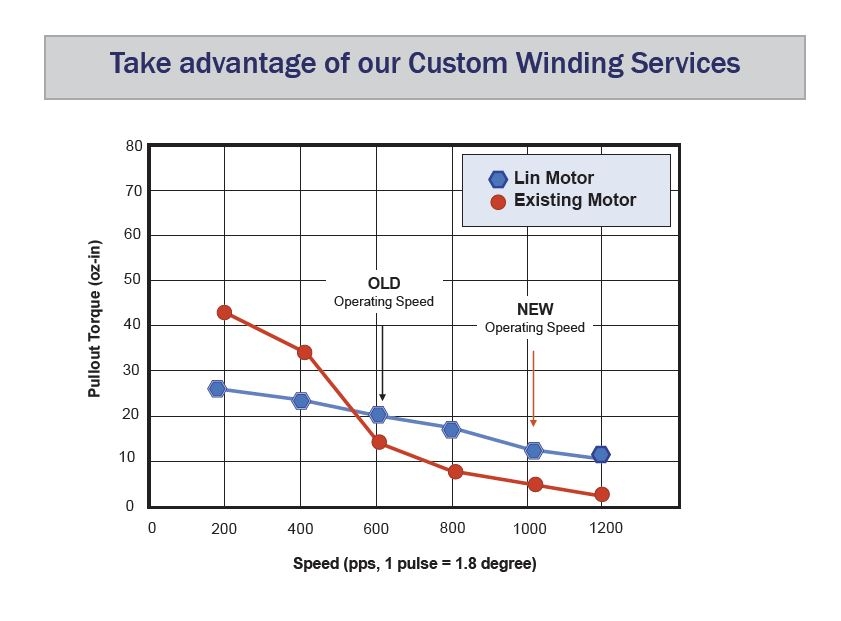

Content image

Specialty Motors

Vacuum Rated Motors
Card image

Vacuum rated motors, for example, are perfect for environments where out-gassing needs to be minimized, which includes vacuum chambers, space applications, and clean room environments.

IP Rated Motors
Card image

IP (Ingress Protection) rated motors are perfect for applications exposed to humidity, water, oil, and other various debris.

High / Low temperature Operation motors
Card image

These motors are designed to operate in higher and lower temperature ranges than what conventional motors are capable of.

4118 Series

Related Products

Downloads

WO-4118L-07P Configured Datasheet (PDF)
Download
Motor Numbering System (PDF)
Download

Get the motor you need

Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
