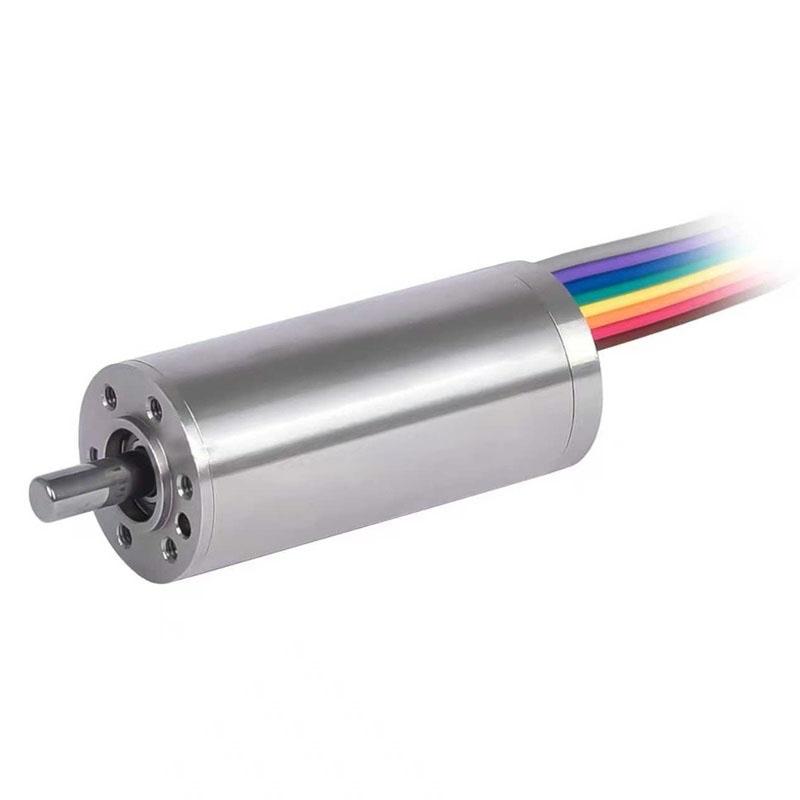

SLU19CH042 SeriesSlotless BLDC Motor
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLU19CH042-12 | 0.750 in | 1.650 in | 12 VDC | 12545 RPM | 1.4161 oz-in | 15000 RPM | 140 mA | NA | 0.159 lbs | 1.277 A | Quote |
| SLU19CH042-24 | 0.750 in | 1.650 in | 24 VDC | 12658 RPM | 1.5577 oz-in | 15000 RPM | 120 mA | NA | 0.159 lbs | 0.66 A | Quote |
| SLU19CH042-24-G21-M16-1024 | 0.750 in | 2.850 in | 24 VDC | 604 RPM | 28.6056 oz-in | 716 RPM | 120 mA | 21:1 | 0.245 lbs | 0.66 A | Quote |
| SLU19CH042-24-G4-M16-1024 | 0.750 in | 2.640 in | 24 VDC | 3207 RPM | 5.6645 oz-in | 3800 RPM | 120 mA | 4:1 | 0.225 lbs | 0.66 A | Quote |
| SLU19CH042-24-G406-M16-1024 | 0.750 in | 3.270 in | 24 VDC | 35 RPM | 113.2895 oz-in | 37 RPM | 120 mA | 406:1 | 0.285 lbs | 0.25 A | Quote |
| SLU19CH042-24-G83-M16-1024 | 0.750 in | 3.060 in | 24 VDC | 155 RPM | 92.0478 oz-in | 181 RPM | 120 mA | 83:1 | 0.265 lbs | 0.616 A | Quote |
| SLU19CH042-36 | 0.750 in | 1.650 in | 36 VDC | 13339 RPM | 1.4161 oz-in | 15000 RPM | 100 mA | NA | 0.159 lbs | 0.43 A | Quote |
| SLU19CH042-48 | 0.750 in | 1.650 in | 48 VDC | 13554 RPM | 1.4161 oz-in | 15000 RPM | 78 mA | NA | 0.159 lbs | 0.32 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
