SLU19CH042 Series
SLU19CH042-24-G4-M16-1024
Slotless BLDC Motor

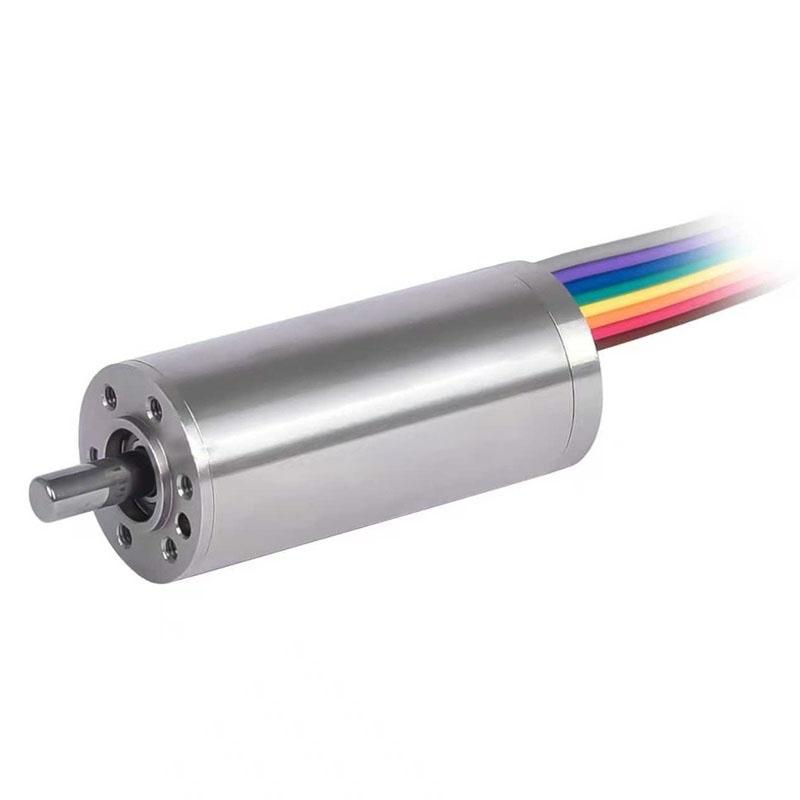

Featured product media

Quick Facts

SLU19CH042-24-G4-M16-1024 Slotless BLDC Motors

Specifications:
  • 0.750 in Frame Size
  • 0.66 A Rated Current
  • 5.6645 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.640 in Length

Specifications

Motor Specifications

Frame Size0.750 in
Motor TypeMotor + Encoder + Gearhead
Weight0.225 lbs

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 3800 RPM
No Load Current120 mA
Nominal Speed3207 RPM
Rated Speed3207 RPM
Rated Torque5.6645 oz-in
Rated Current0.66 A
Stall Torque56.6448 oz-in
Stall Current7.27 A
Max. Efficiency75.3%

Motor Characteristics

Terminal Resistance3.3 ohm
Terminal Inductance0.33 mH
Speed/Torque Gradient 19.4008 RPM/oz-in
Speed Constant630 RPM/V

Motor Mechanical Data

Max. Radial Load12.364 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio4
Nominal Reduction Ratio4

Encoder Specifications

Encoder Type1024-line incremental magnetic encoder

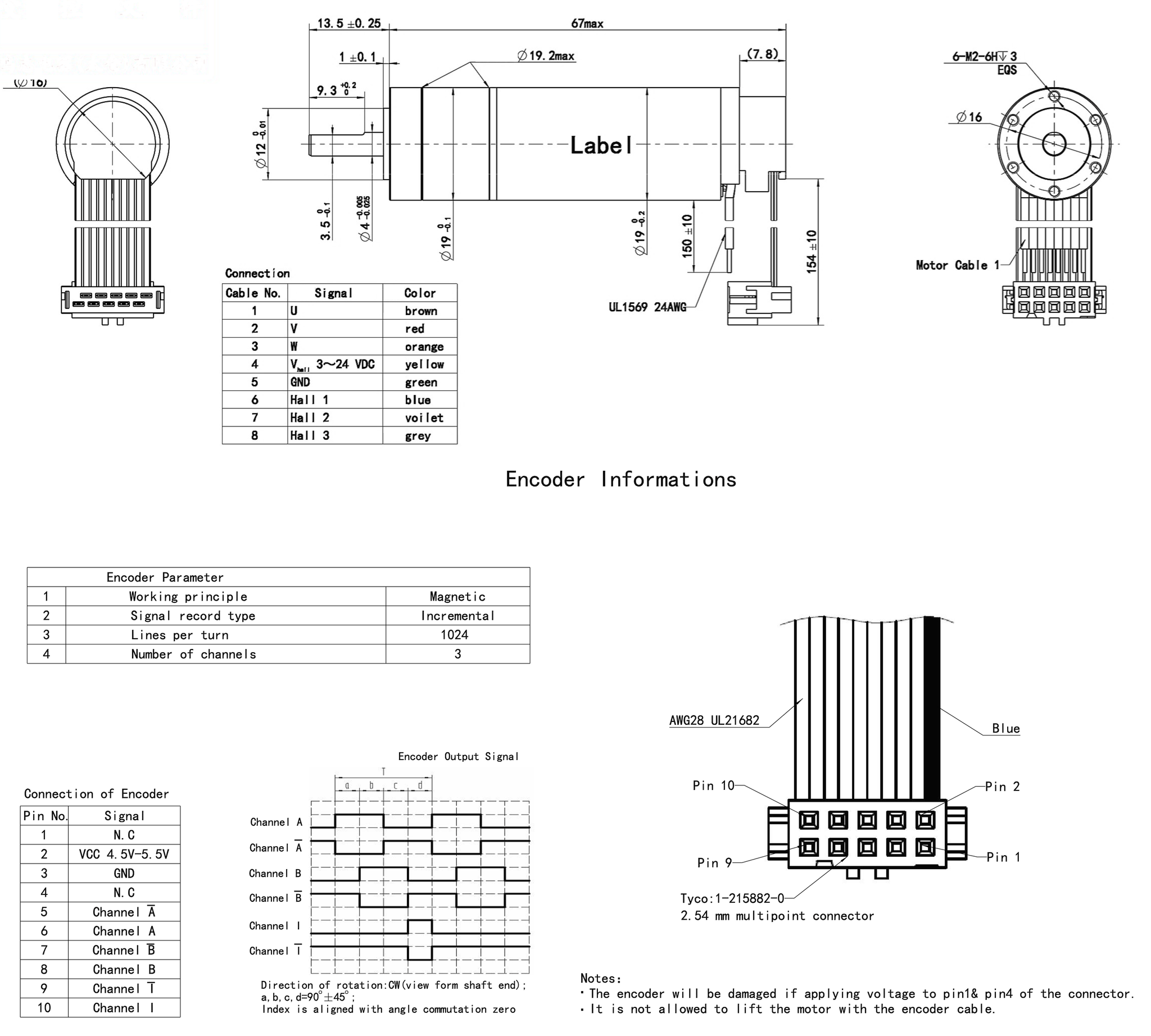

Dimensions

ModelDIM. A (length) in MAX
SLU19CH042-24-G4-M16-10242.640 in

Performance Curve

SLU19CH042-24-G4-M16-1024
@24 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU19CH042 Series

Downloads

SLU19CH042-24-G4-M16-1024 Configured Datasheet (PDF)
