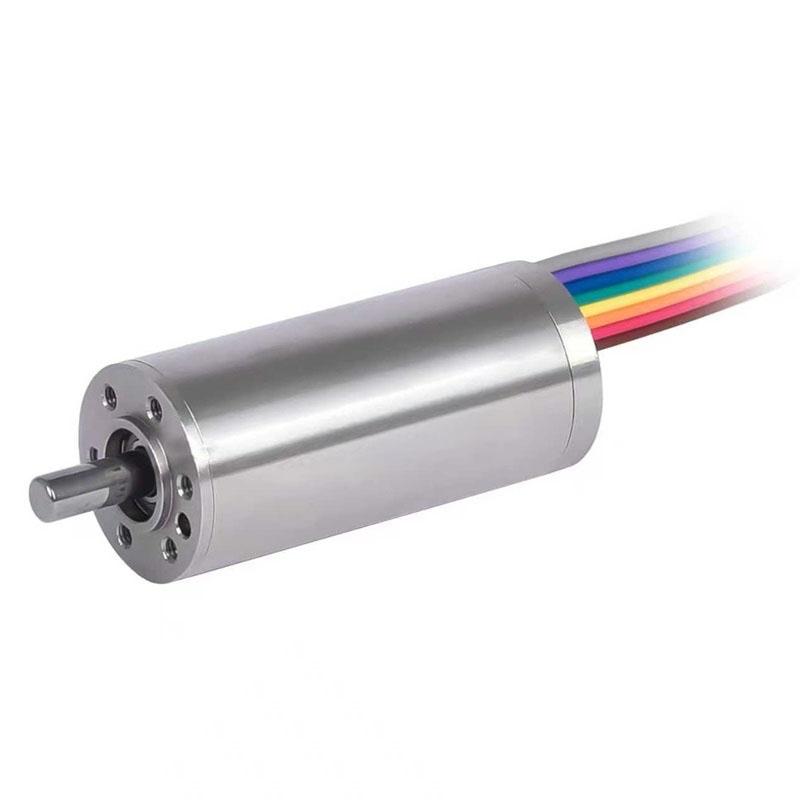

SLU19CH042 Series
SLU19CH042-24-G83-M16-1024
Slotless BLDC Motor

Name: SLU19CH042-24-G83-M16-1024
Brand: Lin Engineering
SKU: SLU19CH042-24-G83-M16-1024
Price: 398 USD
Availability: PreOrder

Quick Facts

SLU19CH042-24-G83-M16-1024 Slotless BLDC Motors

Specifications:

0.750 in Frame Size
0.616 A Rated Current
92.0478 oz-in Rated Torque
24 VDC Nominal Voltage
3.060 in Length

Specifications

Motor Specifications

Frame Size	0.750 in
Motor Type	Motor + Encoder + Gearhead
Weight	0.265 lbs

Motor Values (At Nominal Speed)

Nominal Voltage	24 VDC
No Load Speed	181 RPM
No Load Current	120 mA
Nominal Speed	155 RPM
Rated Speed	155 RPM
Rated Torque	92.0478 oz-in
Rated Current	0.616 A
Stall Torque	1007.144 oz-in
Stall Current	7.27 A
Max. Efficiency	63.9%

Motor Characteristics

Terminal Resistance	3.3 ohm
Terminal Inductance	0.33 mH
Speed/Torque Gradient	19.4008 RPM/oz-in
Speed Constant	630 RPM/V

Motor Mechanical Data

Max. Radial Load

12.364 lbf

Motor Thermal Data

Max winding temperature	311.00 °F
Max winding temperature	311.00 °F

Gearhead Specifications

Gearhead Reduction Ratio	83
Nominal Reduction Ratio	83

Encoder Specifications

Encoder Type

1024-line incremental magnetic encoder

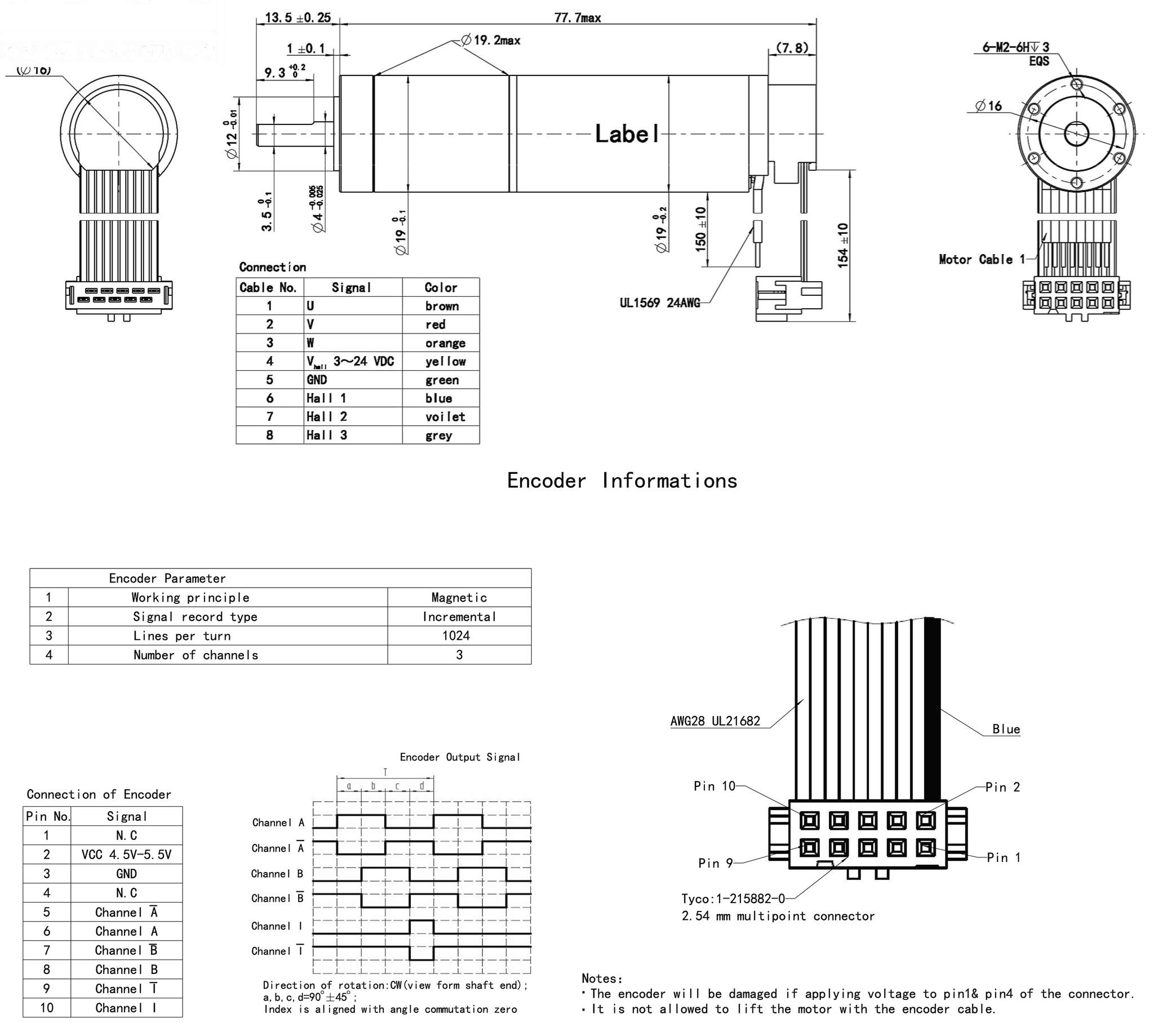

Dimensions

Model	DIM. A (length) in MAX
SLU19CH042-24-G83-M16-1024	3.060 in

Performance Curve

SLU19CH042-24-G83-M16-1024
^{@24 VDC, 83:1 reduction}

Speed
Current
Power
Efficiency
Operating Area
Maximum Continuous Torque

Generate new cureve based on different VDC

SLU19CH042 Series

Downloads

SLU19CH042-24-G83-M16-1024 Configured Datasheet (PDF)
