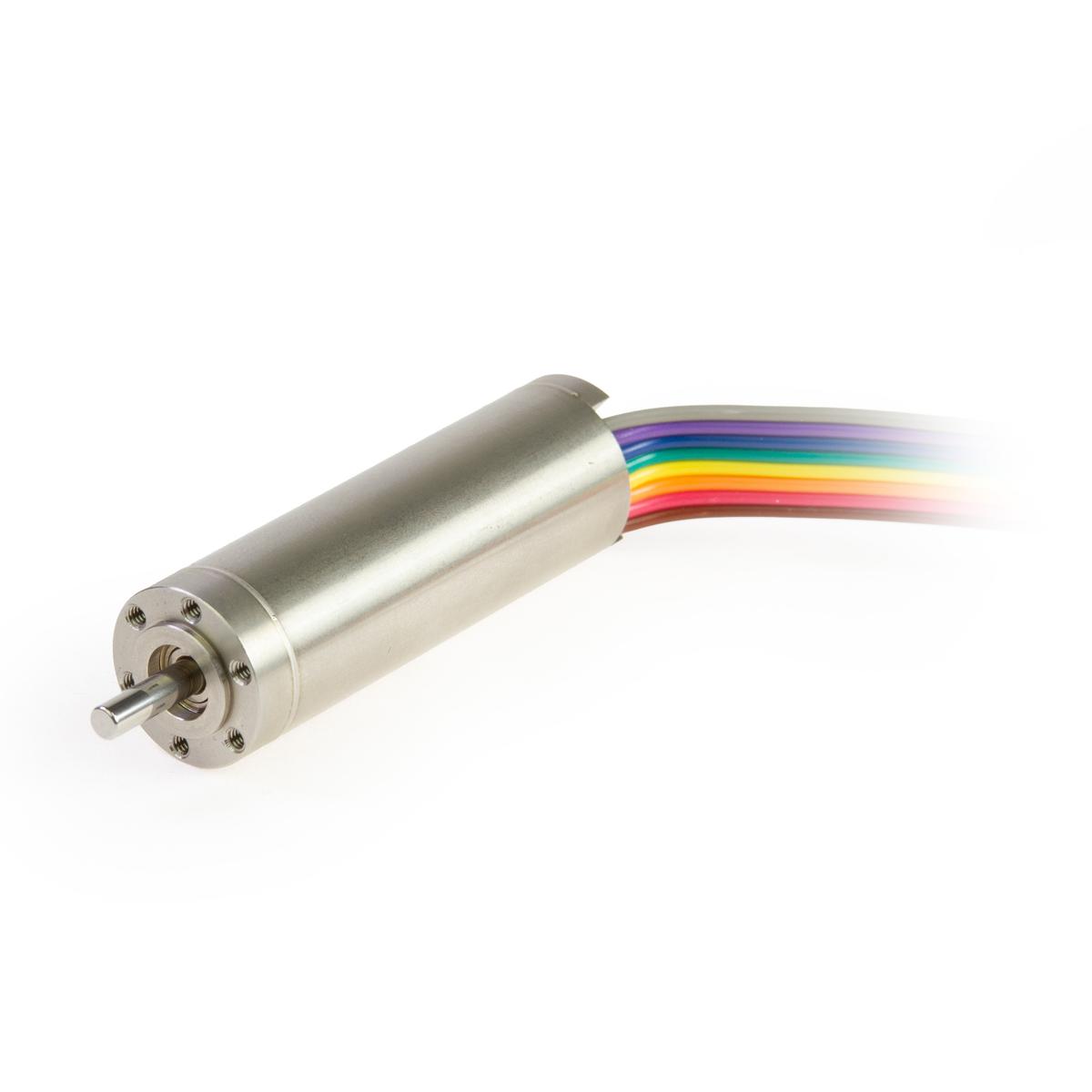

SLU16CH052 SeriesSlotless BLDC Motor
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLU16CH052-12 | 0.630 in | 2.050 in | 12 VDC | 12500 RPM | 1.5577 oz-in | 15936 RPM | 216 mA | NA | 0.143 lbs | 1.4 A | Quote |
| SLU16CH052-12-G172 | 0.630 in | 3.060 in | 12 VDC | 86 RPM | 73.6382 oz-in | 93 RPM | 216 mA | 172:1 | 0.209 lbs | 0.57 A | Quote |
| SLU16CH052-12-G172-M16-1024 | 0.630 in | 3.380 in | 12 VDC | 86 RPM | 73.6382 oz-in | 93 RPM | 216 mA | 172:1 | 0.225 lbs | 0.57 A | Quote |
| SLU16CH052-12-G21 | 0.630 in | 2.880 in | 12 VDC | 596 RPM | 28.0392 oz-in | 760 RPM | 216 mA | 21:1 | 0.198 lbs | 1.4 A | Quote |
| SLU16CH052-12-G21-M16-1024 | 0.630 in | 3.200 in | 12 VDC | 596 RPM | 28.0392 oz-in | 760 RPM | 216 mA | 21:1 | 0.214 lbs | 1.4 A | Quote |
| SLU16CH052-12-G21-MA16-12B | 0.630 in | 3.200 in | 12 VDC | 596 RPM | 28.0392 oz-in | 760 RPM | 216 mA | 21:1 | 0.214 lbs | 1.4 A | Quote |
| SLU16CH052-12-G4 | 0.630 in | 2.680 in | 12 VDC | 3167 RPM | 5.5229 oz-in | 4037 RPM | 216 mA | 4:1 | 0.182 lbs | 1.4 A | Quote |
| SLU16CH052-12-G406 | 0.630 in | 3.260 in | 12 VDC | 37 RPM | 79.3027 oz-in | 39 RPM | 216 mA | 406:1 | 0.219 lbs | 0.39 A | Quote |
| SLU16CH052-12-G406-M16-1024 | 0.630 in | 3.570 in | 12 VDC | 37 RPM | 92.0478 oz-in | 39 RPM | 216 mA | 406:1 | 0.235 lbs | 0.39 A | Quote |
| SLU16CH052-12-G7 | 0.630 in | 2.680 in | 12 VDC | 1894 RPM | 9.2897 oz-in | 2415 RPM | 216 mA | 7:1 | 0.193 lbs | 1.4 A | Quote |
| SLU16CH052-12-G83 | 0.630 in | 3.060 in | 12 VDC | 163 RPM | 73.6382 oz-in | 193 RPM | 216 mA | 83:1 | 0.209 lbs | 1.05 A | Quote |
| SLU16CH052-12-G83-M16-1024 | 0.630 in | 3.380 in | 12 VDC | 163 RPM | 73.6382 oz-in | 193 RPM | 216 mA | 83:1 | 0.225 lbs | 1.05 A | Quote |
| SLU16CH052-12-M16-1024 | 0.630 in | 2.370 in | 12 VDC | 12500 RPM | 1.5577 oz-in | 15936 RPM | 216 mA | NA | 0.136 lbs | 1.4 A | Quote |
| SLU16CH052-24 | 0.630 in | 2.050 in | 24 VDC | 13400 RPM | 1.4869 oz-in | 15900 RPM | 150 mA | NA | 0.143 lbs | 0.68 A | Quote |
| SLU16CH052-24-G172 | 0.630 in | 3.060 in | 24 VDC | 85 RPM | 73.6382 oz-in | 93 RPM | 150 mA | 172:1 | 0.209 lbs | 0.31 A | Quote |
| SLU16CH052-24-G172-M16-1024 | 0.630 in | 3.380 in | 24 VDC | 85 RPM | 73.6382 oz-in | 93 RPM | 150 mA | 172:1 | 0.225 lbs | 0.31 A | Quote |
| SLU16CH052-24-G21 | 0.630 in | 2.880 in | 24 VDC | 640 RPM | 26.7647 oz-in | 759 RPM | 150 mA | 21:1 | 0.198 lbs | 0.68 A | Quote |
| SLU16CH052-24-G21-M16-1024 | 0.630 in | 3.200 in | 24 VDC | 640 RPM | 26.7647 oz-in | 759 RPM | 150 mA | 21:1 | 0.214 lbs | 0.68 A | Quote |
| SLU16CH052-24-G21-MA16-12B | 0.630 in | 3.200 in | 24 VDC | 640 RPM | 26.7647 oz-in | 759 RPM | 150 mA | 21:1 | 0.214 lbs | 0.68 A | Quote |
| SLU16CH052-24-G4 | 0.630 in | 2.670 in | 24 VDC | 3354 RPM | 5.5229 oz-in | 4028 RPM | 150 mA | 4:1 | 0.187 lbs | 0.68 A | Quote |
| SLU16CH052-24-G4-M16-1024 | 0.630 in | 2.980 in | 24 VDC | 3354 RPM | 5.5229 oz-in | 4028 RPM | 150 mA | 4:1 | 0.203 lbs | 0.68 A | Quote |
| SLU16CH052-24-G406 | 0.630 in | 3.260 in | 24 VDC | 37 RPM | 92.0478 oz-in | 39 RPM | 150 mA | 406:1 | 0.219 lbs | 0.22 A | Quote |
| SLU16CH052-24-G406-M16-1024 | 0.630 in | 3.570 in | 24 VDC | 37 RPM | 92.0478 oz-in | 39 RPM | 150 mA | 406:1 | 0.235 lbs | 0.22 A | Quote |
| SLU16CH052-24-G7 | 0.630 in | 2.670 in | 24 VDC | 2006 RPM | 9.0632 oz-in | 2409 RPM | 150 mA | 7:1 | 0.181 lbs | 0.68 A | Quote |
| SLU16CH052-24-G7-M16-1024 | 0.630 in | 2.980 in | 24 VDC | 2006 RPM | 9.0632 oz-in | 2409 RPM | 150 mA | 7:1 | 0.203 lbs | 0.68 A | Quote |
| SLU16CH052-24-G83 | 0.630 in | 3.060 in | 24 VDC | 166 RPM | 73.6382 oz-in | 192 RPM | 150 mA | 83:1 | 0.209 lbs | 0.53 A | Quote |
| SLU16CH052-24-G83-M16-1024 | 0.630 in | 3.380 in | 24 VDC | 166 RPM | 73.6382 oz-in | 192 RPM | 150 mA | 83:1 | 0.225 lbs | 0.53 A | Quote |
| SLU16CH052-24-M16-1024 | 0.630 in | 2.370 in | 24 VDC | 13400 RPM | 1.4869 oz-in | 15900 RPM | 150 mA | NA | 0.153 lbs | 0.68 A | Quote |
| SLU16CH052-24-MS16-15B | 0.630 in | 2.370 in | 24 VDC | 13400 RPM | 1.4869 oz-in | 15900 RPM | 150 mA | NA | 0.157 lbs | 0.68 A | Quote |
| SLU16CH052-36 | 0.630 in | 2.050 in | 36 VDC | 13776 RPM | 1.6285 oz-in | 15982 RPM | 87 mA | NA | 0.143 lbs | 0.61 A | Quote |
| SLU16CH052-48 | 0.630 in | 2.050 in | 48 VDC | 14545 RPM | 1.5577 oz-in | 16497 RPM | 97 mA | NA | 0.143 lbs | 0.62 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
