SLU16CH052 Series
SLU16CH052-24-G4
Slotless BLDC Motor

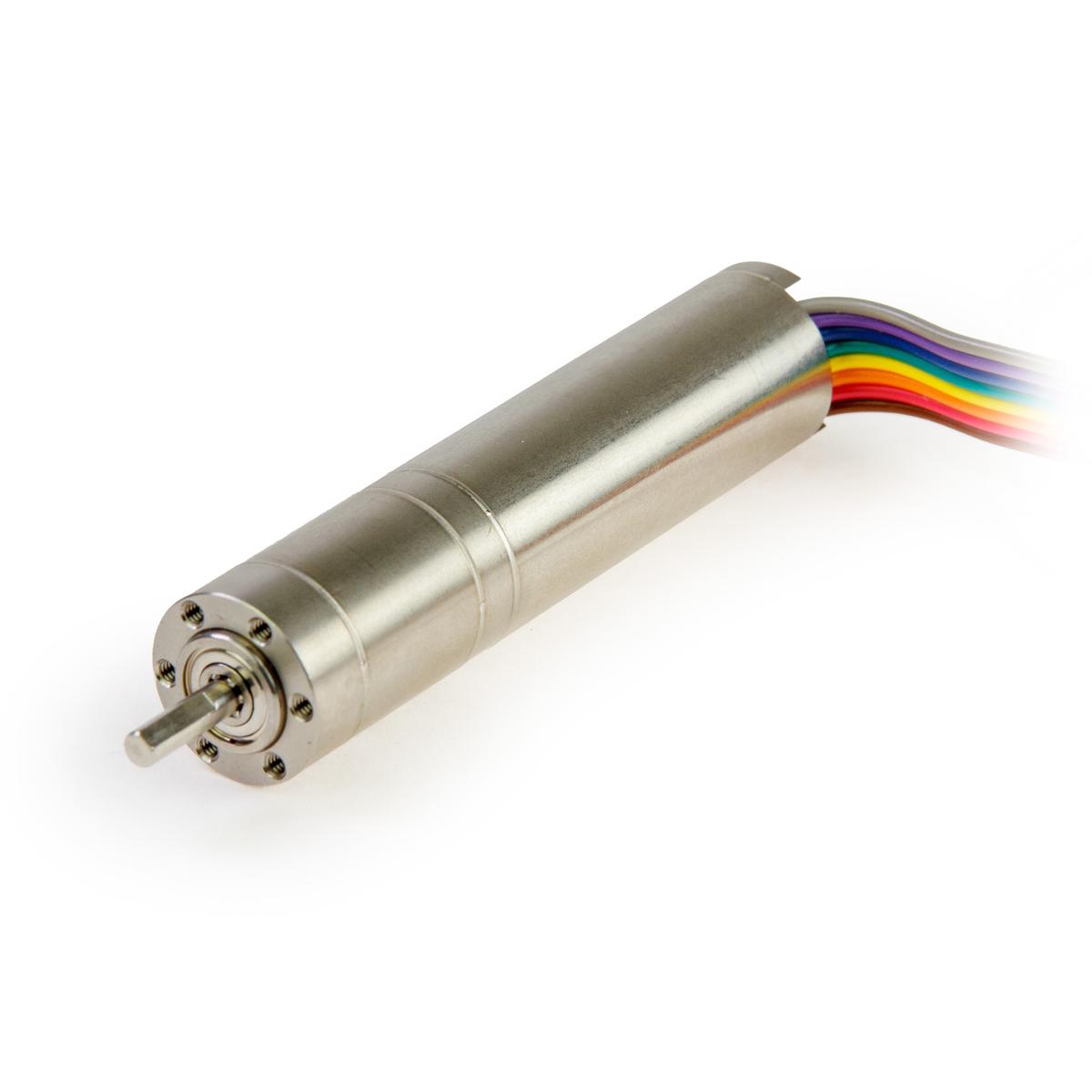

Featured product media

Quick Facts

SLU16CH052-24-G4 Slotless BLDC Motors

Specifications:
  • 0.630 in Frame Size
  • 0.68 A Rated Current
  • 5.5229 oz-in Rated Torque
  • 24 VDC Nominal Voltage
  • 2.670 in Length
Features and Benefits:
  • Extremely quick response and high acceleration
  • Quiet Operation
  • High power density

Specifications

Motor Specifications

Frame Size0.630 in
Motor TypeMotor + Gearhead
Weight0.187 lbs
CertificationRoHS

Motor Values (At Nominal Speed)

Nominal Voltage24 VDC
No Load Speed 4028 RPM
No Load Current150 mA
Nominal Speed3445 RPM
Rated Speed3354 RPM
Rated Torque5.5229 oz-in
Rated Current0.68 A
Stall Torque58.6273 oz-in
Stall Current7.6 A
Max. Efficiency77%

Motor Characteristics

Terminal Resistance3.16 ohm
Terminal Inductance0.253 mH
Speed/Torque Gradient 19.4008 RPM/oz-in
Speed Constant643 RPM/V
Mechanical Time Constant1.22 ms

Motor Mechanical Data

Max. Radial Load11.24 lbf

Motor Thermal Data

Max winding temperature311.00 °F
Max winding temperature311.00 °F
Thermal time constant motor600 s
Thermal time constant winding3.12 s

Gearhead Specifications

Gearhead Reduction Ratio4
Nominal Reduction Ratio4

Performance Curve

SLU16CH052-24-G4
@24 VDC, 4:1 reduction

  • Speed
  • Current
  • Power
  • Efficiency
  • Operating Area
  • Maximum Continuous Torque

Generate new cureve based on different VDC

SLU16CH052 Series

Downloads

SLU16CH052-24-G4 Configured Datasheet (PDF)
