SLU16CH052 SeriesSLU16CH052-36Slotless BLDC Motor
Quick Facts

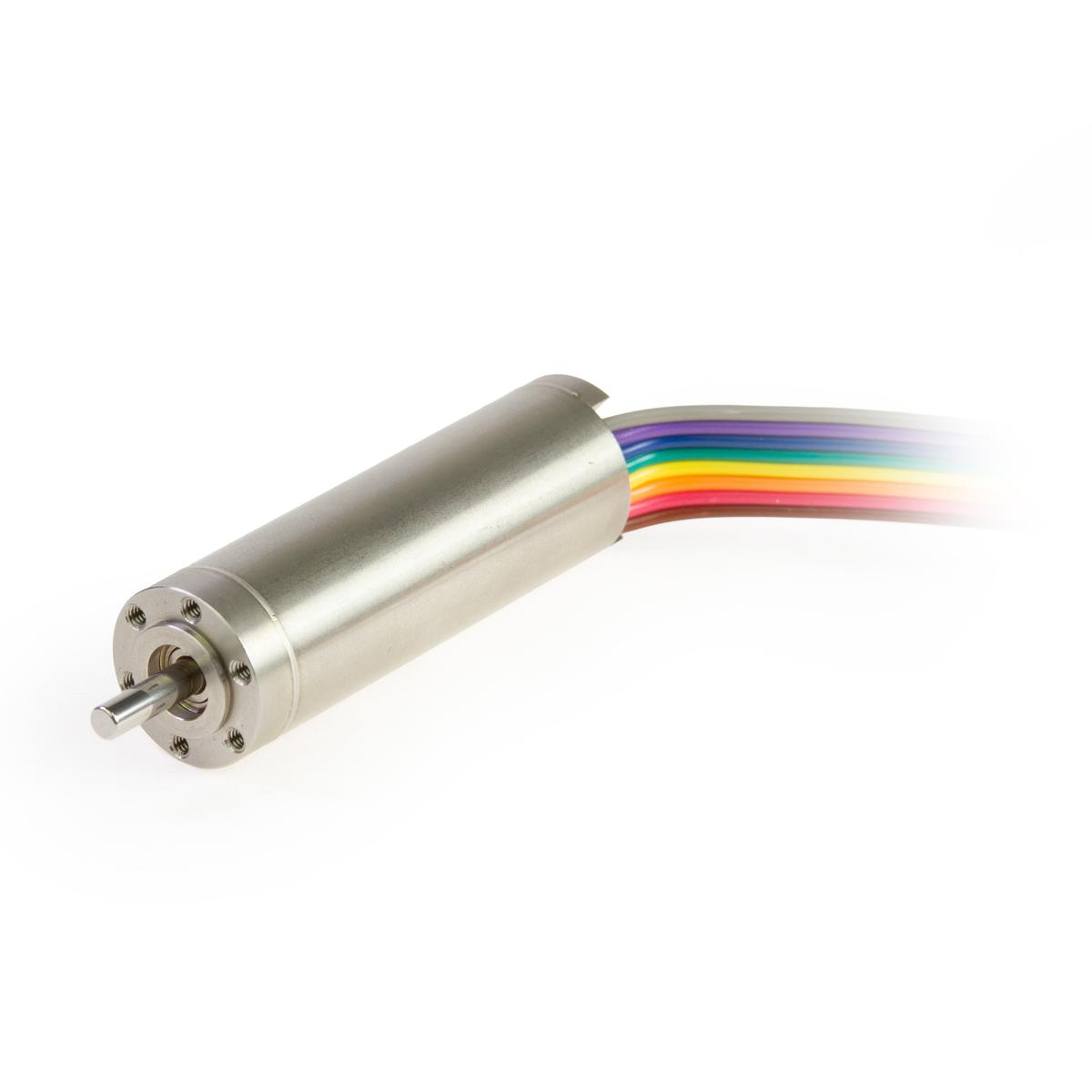

SLU16CH052-36 Slotless BLDC Motors
SLU16CH052-36 Slotless BLDC Motors
Specifications:
- 0.630 in Frame Size
- 0.61 A Rated Current
- 1.6285 oz-in Rated Torque
- 36 VDC Nominal Voltage
- 2.050 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor Only |
| Weight | 0.143 lbs |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 36 VDC |
| No Load Speed | 15982 RPM |
| No Load Current | 87 mA |
| Nominal Speed | 13840 RPM |
| Rated Speed | 13776 RPM |
| Rated Torque | 1.6285 oz-in |
| Rated Current | 0.61 A |
| Stall Torque | 16.7102 oz-in |
| Stall Current | 5.34 A |
| Max. Efficiency | 85% |
Motor Characteristics
| Terminal Resistance | 6.74 ohm |
| Terminal Inductance | 0.587 mH |
| Speed/Torque Gradient | 18.6928 RPM/oz-in |
| Speed Constant | 432 RPM/V |
| Mechanical Time Constant | 1.18 ms |
Motor Mechanical Data
| Max. Radial Load | 2.136 lbf |
Motor Thermal Data
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal time constant motor | 600 s |
| Thermal time constant winding | 3.12 s |

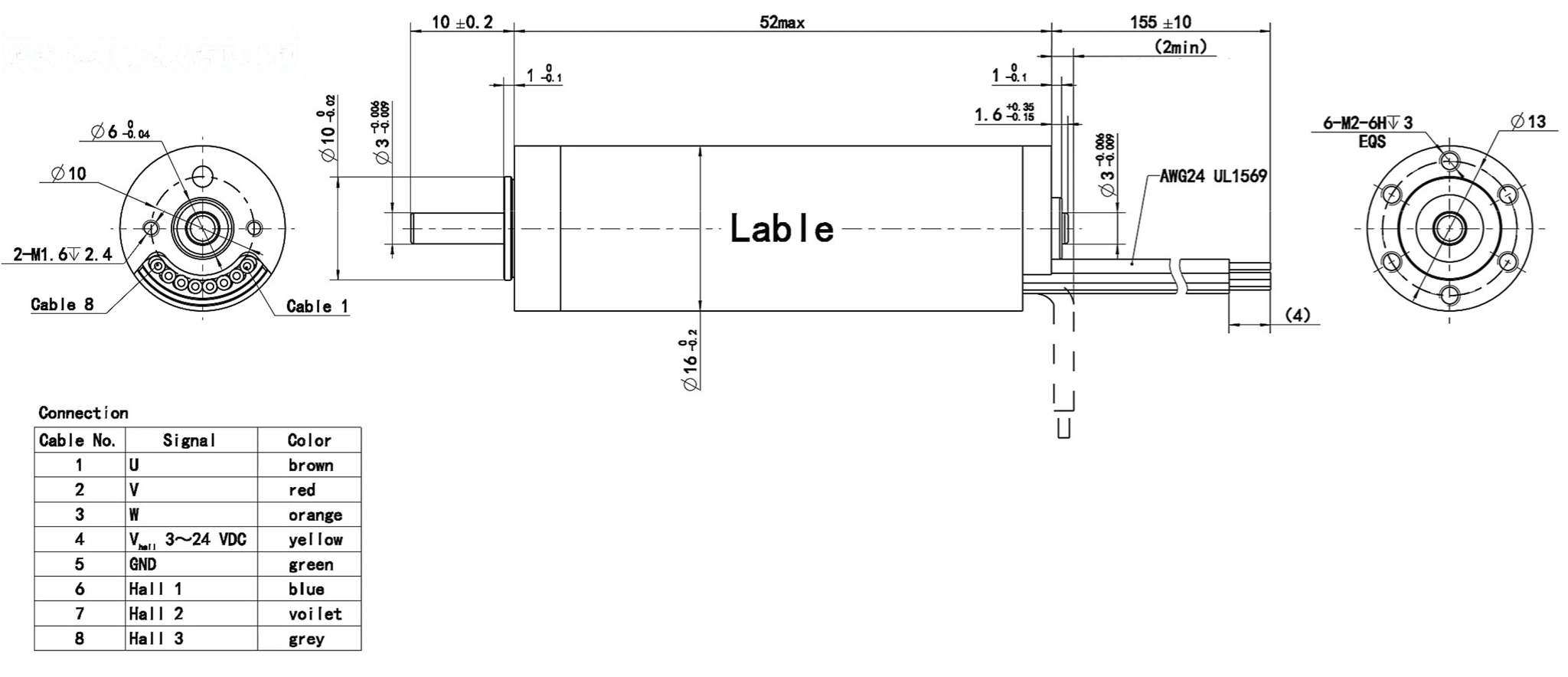

Dimensions
| Model | DIM. A (length) in MAX |
|---|---|
| SLU16CH052-36 | 2.050 in |
Performance Curve
SLU16CH052-36
@36 VDC
- Speed
- Current
- Power
- Efficiency
- Operating Area
- Maximum Continuous Torque
Generate new cureve based on different VDC
SLU16CH052 Series
Downloads
SLU16CH052-36 Configured Datasheet (PDF)
