SLU16CH052 SeriesSLU16CH052-12Slotless BLDC Motor
Specifications:
- 0.630 in Frame Size
- 1.4 A Rated Current
- 1.5577 oz-in Rated Torque
- 12 VDC Nominal Voltage
- 2.050 in Length
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Unit Price:
$186.00
Inventory:
5 Available in 4 Business Days
Ships:
4 Business Days
Part Number:
SLU16CH052-12
Looking For Higher Volume?
Specifications
Motor Specifications
| Frame Size | 0.630 in |
| Motor Type | Motor Only |
| Weight | 0.143 lbs |
| Number of pole | 2 |
| Number of Phases | 3 |
| Certification | RoHS |
Motor Values (At Nominal Speed)
| Nominal Voltage | 12 VDC |
| No Load Speed | 15936 RPM |
| No Load Current | 216 mA |
| Nominal Speed | 13735 RPM |
| Nominal Torque (Max Cont. Torque) | 2.2941 oz-in |
| Nominal Current (Max Cont. Current) | 2.42 A |
| Rated Speed | 12500 RPM |
| Rated Torque | 1.5577 oz-in |
| Rated Current | 1.4 A |
| Stall Torque | 16.2358 oz-in |
| Stall Current | 15.58 A |
| Max. Efficiency | 84.5% |
Motor Characteristics
| Terminal Resistance | 0.77 ohm |
| Terminal Inductance | 0.0616 mH |
| Speed/Torque Gradient | 19.2592 RPM/oz-in |
| Speed Constant | 1298 RPM/V |
| Mechanical Time Constant | 1.21 ms |
| Rotor Inertia | 0.005 oz-in² |
Motor Mechanical Data
| Radial play | Preload |
| Max. Radial Load | 2.136 lbf |
| Distance From Flange For Radial Load | 5 in |
| Max Force For Press Fit | 4.946 lbf |
| Max Speed (Mechanical) | 30000 RPM |
Motor Thermal Data
| Ambient Temperature | -40 °F to 212.00 °F |
| Insulation Class | F |
| Max winding temperature | 311.00 °F |
| Max winding temperature | 311.00 °F |
| Thermal resistance (Housing-Ambient) | 63.68 °F/W |
| Thermal resistance (Winding-Housing) | 35.24 °F/W |
| Thermal time constant motor | 600 s |
| Thermal time constant winding | 3.12 s |

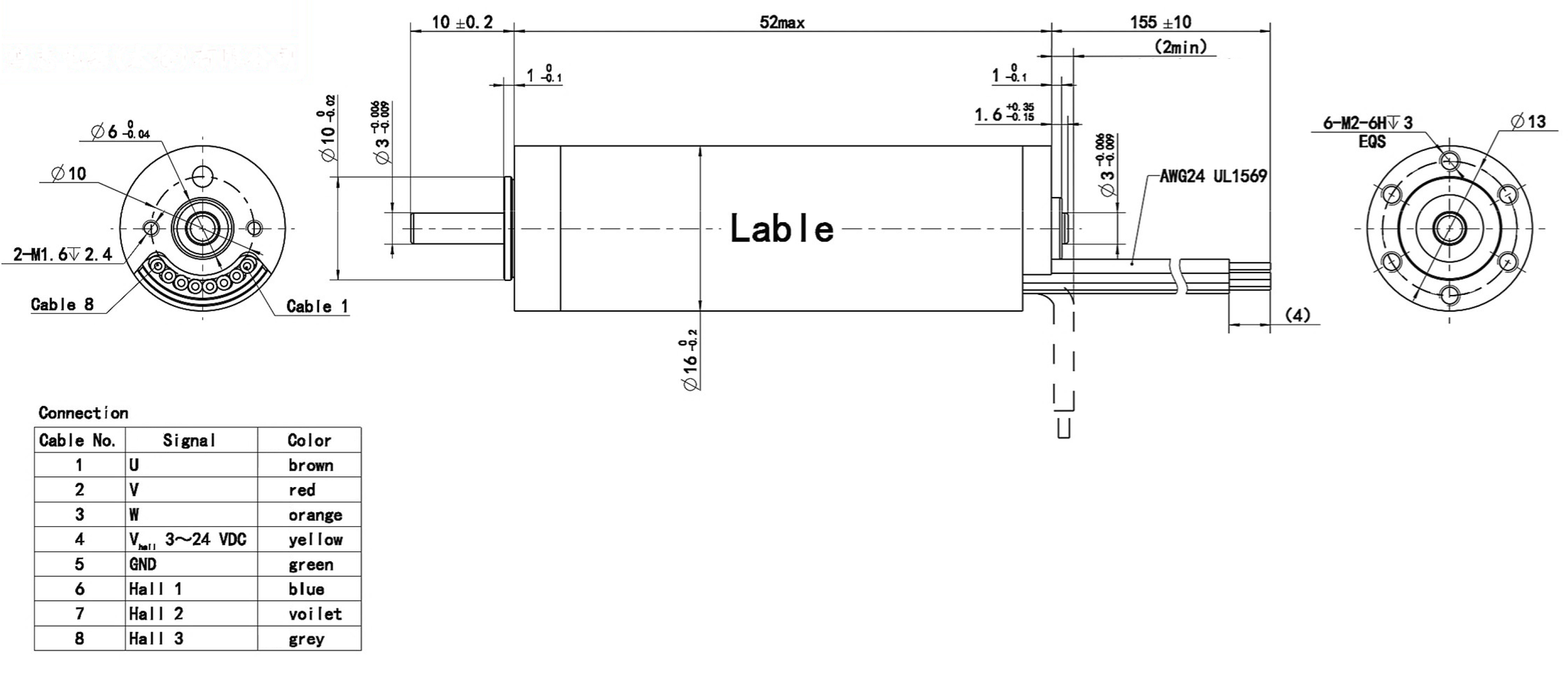

Dimensions
| Model | DIM. A (length) in |
|---|---|
| SLU16CH052-12 | 2.050 in |
Performance Curve
SLU16CH052 Series
Downloads
SLU16CH052-12 Configured Datasheet (PDF)
