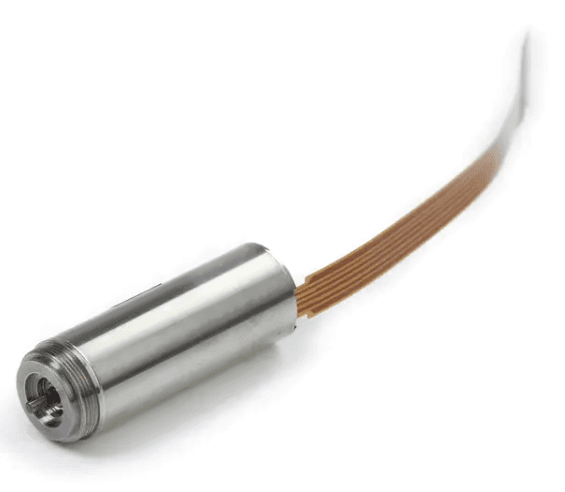

SLU13CH038 SeriesSlotless BLDC Motor
Features and Benefits:
- Extremely quick response and high acceleration
- Quiet Operation
- High power density
Models
| Model # | Frame size | Length | Nominal Voltage | Rated speed | Rated Torque | No Load Speed | No Load Current | Gearbox ratio | Weight, lbs | Rated Current | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SLU13CH038-06 | 0.510 in | 1.470 in | 6 VDC | 18000 RPM | 0.7265 oz-in | 24600 RPM | 200 mA | NA | 0.064 lbs | 2.23 A | Quote |
| SLU13CH038-09 | 0.510 in | 1.470 in | 9 VDC | 19000 RPM | 0.7859 oz-in | 24600 RPM | 135 mA | NA | 0.064 lbs | 1.7 A | Quote |
| SLU13CH038-09-G19 | 0.510 in | 2.130 in | 6 VDC | 512 RPM | 9.049 oz-in | 800 RPM | 160 mA | 19:1 | 0.095 lbs | 1.06 A | Quote |
| SLU13CH038-12 | 0.510 in | 1.470 in | 12 VDC | 19000 RPM | 0.7335 oz-in | 24700 RPM | 97 mA | NA | 0.064 lbs | 1.12 A | Quote |
| SLU13CH038-18 | 0.510 in | 1.470 in | 18 VDC | 19000 RPM | 0.7789 oz-in | 25400 RPM | 71 mA | NA | 0.064 lbs | 0.81 A | Quote |
| SLU13CH038-24 | 0.510 in | 1.470 in | 24 VDC | 19900 RPM | 0.7265 oz-in | 24700 RPM | 52 mA | NA | 0.064 lbs | 0.55 A | Quote |
| SLU13CH038-24-G131 | 0.510 in | 2.260 in | 18 VDC | 110 RPM | 41.1383 oz-in | 140 RPM | 90 mA | 131:1 | 0.101 lbs | 0.36 A | Quote |
| SLU13CH038-24-G94 | 0.510 in | 2.240 in | 12 VDC | 90 RPM | 32.5707 oz-in | 130 RPM | 45 mA | 94:1 | 0.1 lbs | 0.25 A | Quote |
| SLU13CH038-36 | 0.510 in | 1.470 in | 36 VDC | 27000 RPM | 0.7647 oz-in | 27000 RPM | 41 mA | NA | 0.064 lbs | 0.45 A | Quote |
| SLU13CH038-36-G131 | 0.510 in | 2.260 in | 24 VDC | 103.5 RPM | 38.915 oz-in | 130 RPM | 67.5 mA | 131:1 | 0.101 lbs | 0.25 A | Quote |
| SLU13CH038-36-G131-MH13-1024 | 0.510 in | 2.540 in | 24 VDC | 103.5 RPM | 38.915 oz-in | 130 RPM | 67.5 mA | 131:1 | 0.124 lbs | 0.25 A | Quote |
| SLU13CH038-36-G19 | 0.510 in | 2.130 in | 24 VDC | 704.4 RPM | 6.5425 oz-in | 888 RPM | 67.5 mA | 19:1 | 0.095 lbs | 0.25 A | Quote |
| SLU13CH038-36-G19-MA13-12B | 0.510 in | 2.380 in | 24 VDC | 704.4 RPM | 6.5425 oz-in | 888 RPM | 67.5 mA | 19:1 | 0.118 lbs | 0.25 A | Quote |
| SLU13CH038-36-G19-MH13-1024 | 0.510 in | 2.380 in | 24 VDC | 704.4 RPM | 6.5425 oz-in | 888 RPM | 67.5 mA | 19:1 | 0.118 lbs | 0.25 A | Quote |
| SLU13CH038-36-G276 | 0.510 in | 2.400 in | 24 VDC | 65.9 RPM | 56.6448 oz-in | 62 RPM | 67.5 mA | 276:1 | 0.107 lbs | 0.25 A | Quote |
| SLU13CH038-36-G276-MH13-1024 | 0.510 in | 2.700 in | 24 VDC | 60.4 RPM | 56.6448 oz-in | 62 RPM | 67.5 mA | 276:1 | 0.13 lbs | 0.25 A | Quote |
| SLU13CH038-36-G94 | 0.510 in | 2.240 in | 24 VDC | 146 RPM | 32.5707 oz-in | 172 RPM | 67.5 mA | 94:1 | 0.1 lbs | 0.25 A | Quote |
| SLU13CH038-36-G94-MH13-1024 | 0.510 in | 2.540 in | 24 VDC | 146 RPM | 32.5707 oz-in | 172 RPM | 67.5 mA | 94:1 | 0.123 lbs | 0.25 A | Quote |
| SLU13CH038-36-MH13-1024 | 0.510 in | 1.730 in | 36 VDC | 23100 RPM | 0.4248 oz-in | 25640 RPM | 84 mA | NA | 0.087 lbs | 0.25 A | Quote |
Get the motor you need
Just fill out a Request for a Quote form, and tell us about your application and your needs. One of our applications specialists will review your request, and provide you with a quote promptly.
